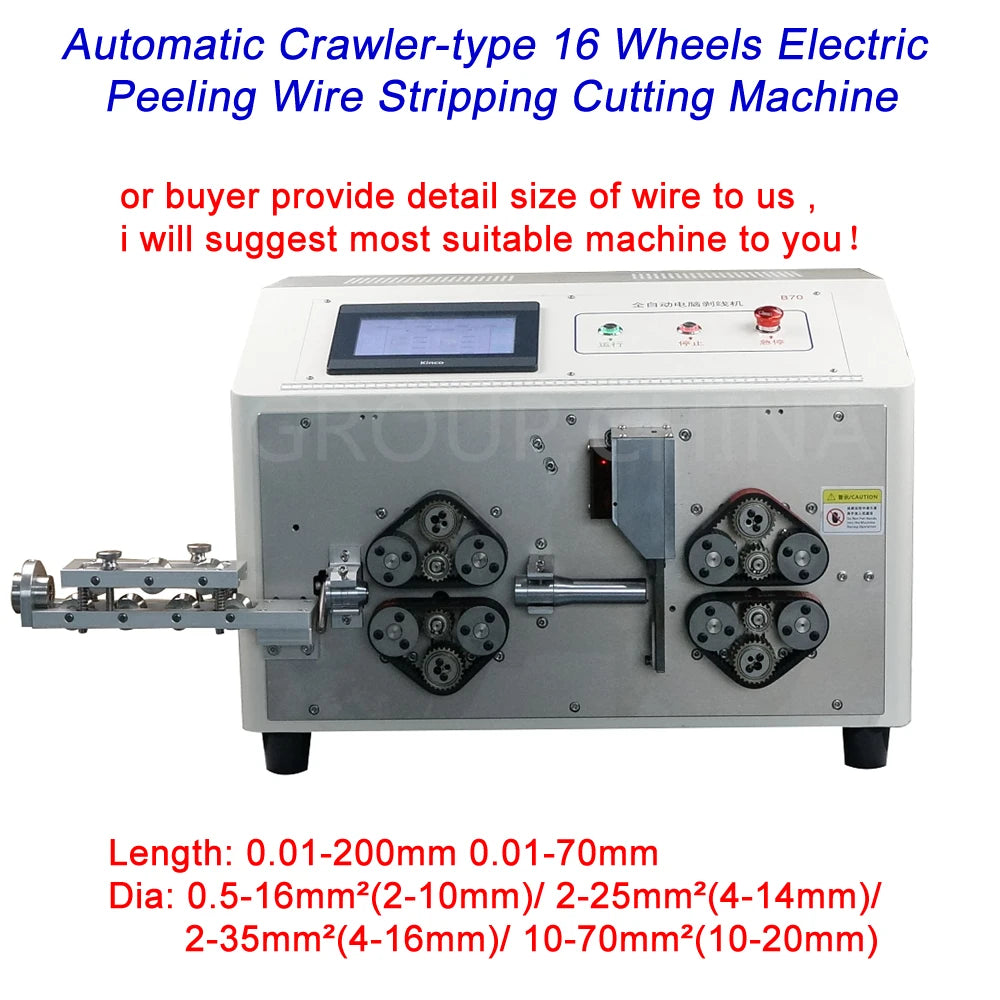

LY B16 B25 B35 B70 Automatic Touch Screen Crawler-type 16 Wheels Professional Electric Peeling Wire Stripping Cutting Machine From 0.5mm2 To 70mm2 220V 110V Optional
(RE:. Crystal Protect case not included, if need please leave message to seller.)
Applications

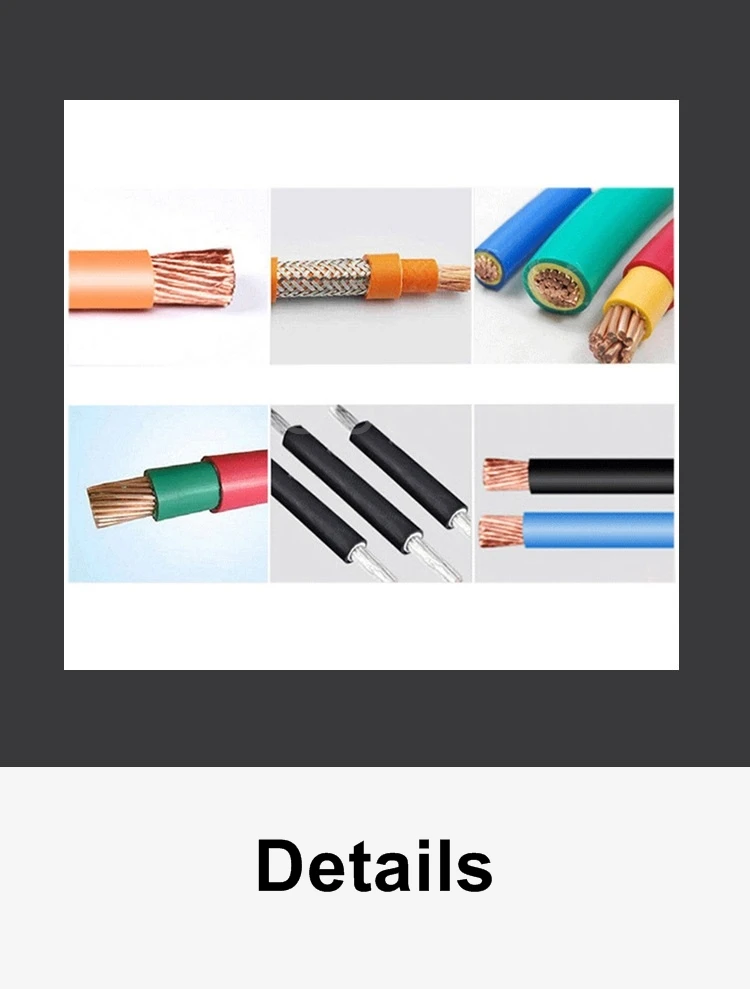

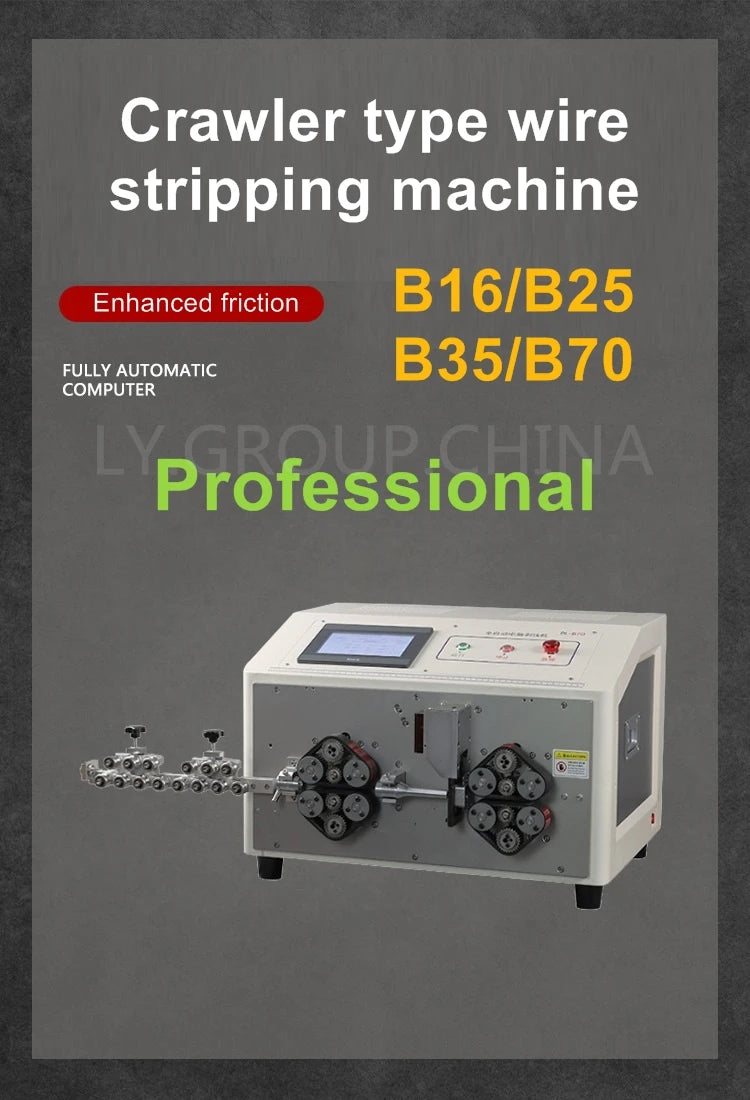

This machine is designed for cutting and peeling wire harnesses in industries such as new energy vehicles, power sets, and cables. It adopts a 12 wheel tracked wire feeding system to enhance the friction of the conveying wire and ensure the accuracy of the cutting length and stripping head without any indentation on the surface. It uses a two-way screw clamping wheel to ensure the accuracy of the wire size and the center of the cutting edge, ensuring that the stripping edge is flat and does not scratch the core wire. It is fully computer-controlled and debugged to ensure the length of the wire The depth of the cutting blade, the length of the peeling edge, and the compression of the wire are all completed through a full touch screen digital operation, which is simple and easy to understand.

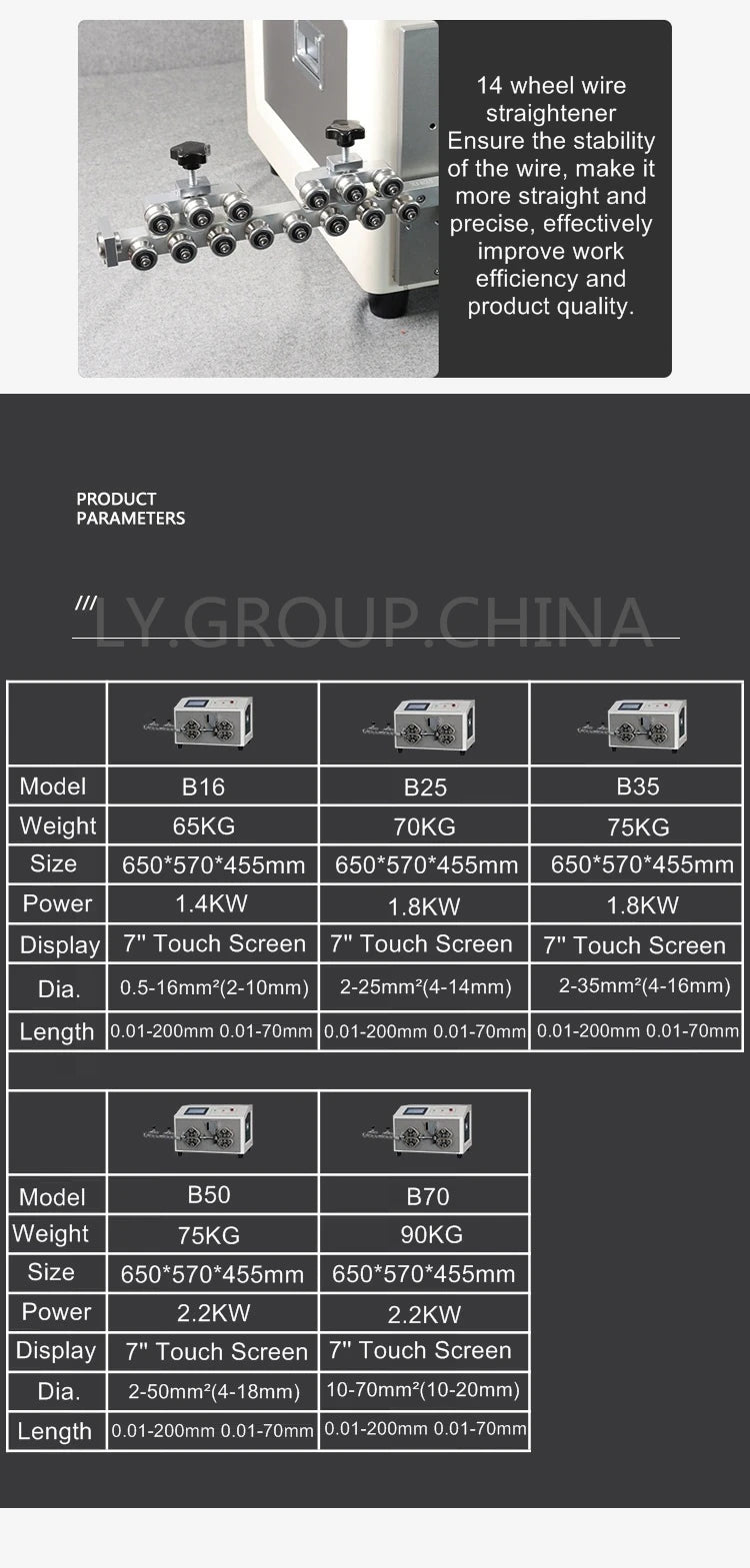

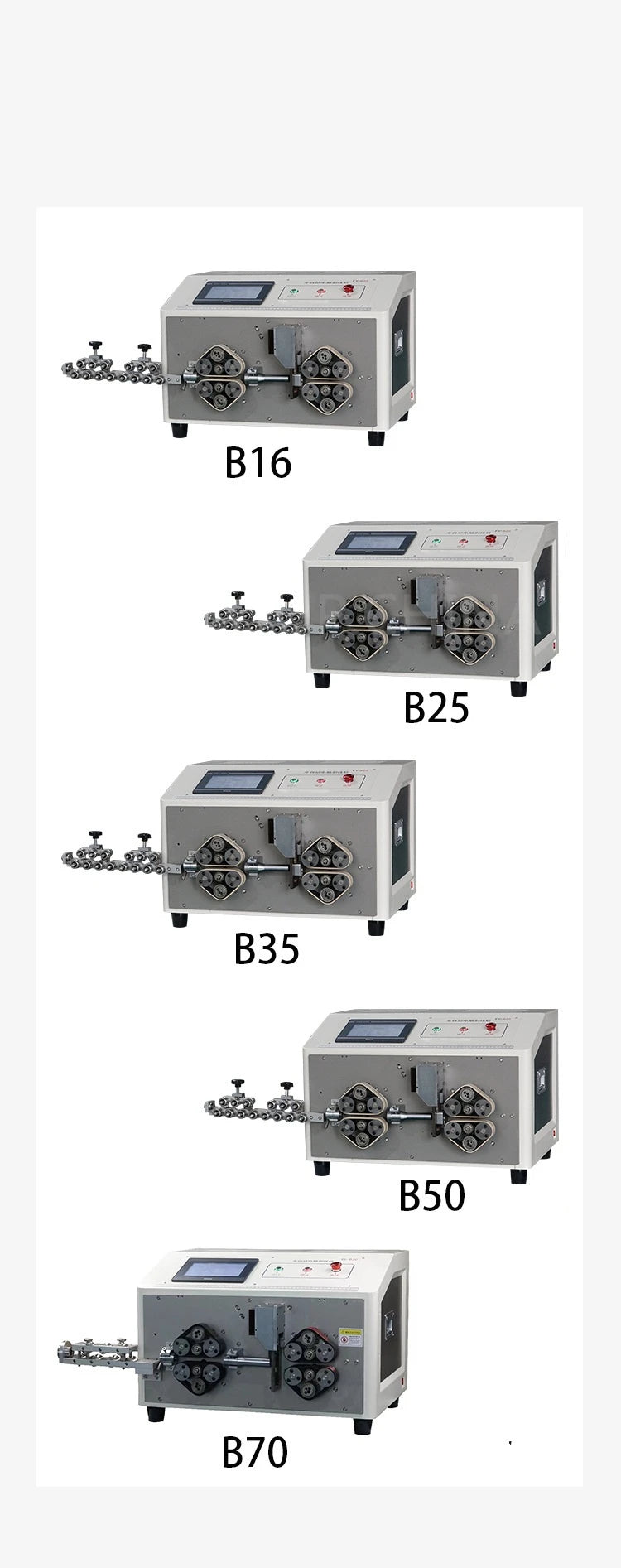

Specifications:

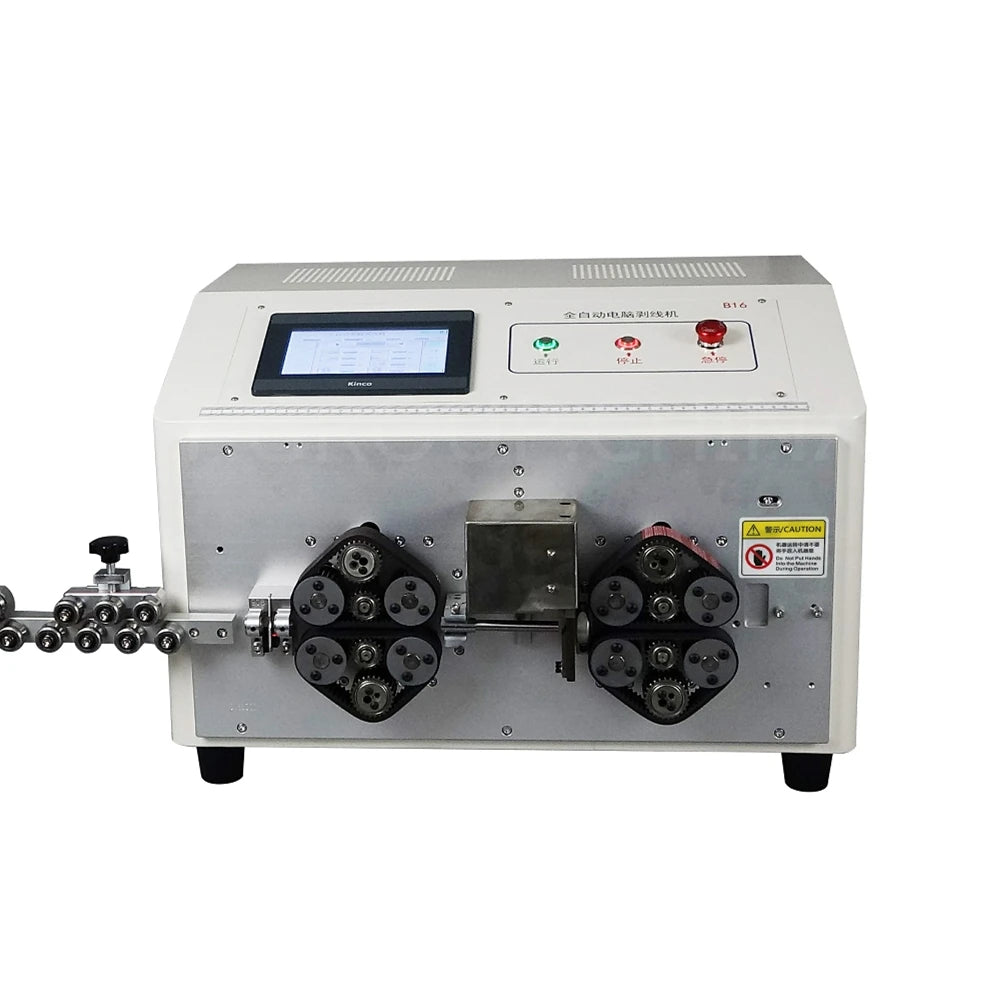

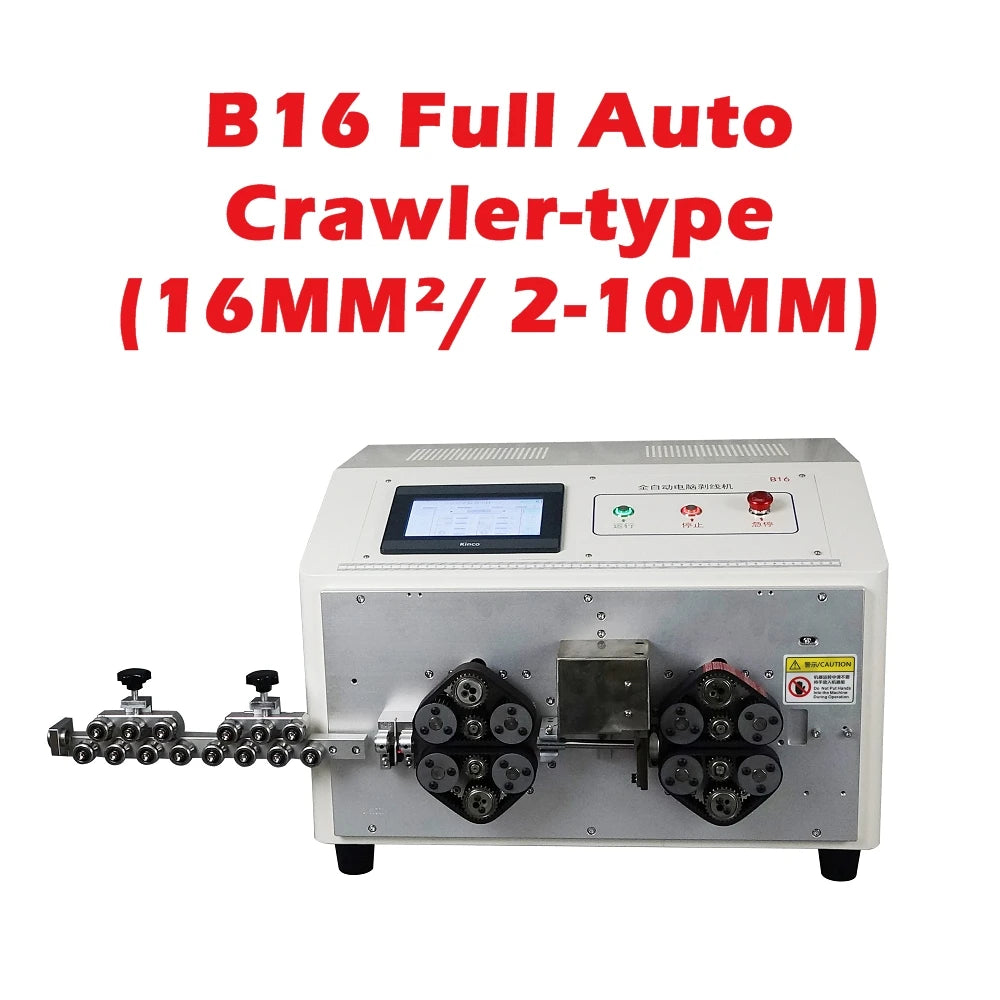

B16
Equipment name: Fully automatic computer wire stripping machine for cutting wire cores of 0.5-16 square meters
Equipment model B16, cutting wire diameter 2-10mm
Machine weight 65kg, conduit diameter 4/6/8/10
External dimensions L650mm * W570mm * H455mm, detection function missing line detection
Input power AC220V/50Hz duct swing pneumatic
Machine power 1.4KW, tangent length 0.01-9999999.99mm
Rated power 0.8KW, stripping length 0.01-200mm
Display method: 7-inch touch screen with tail length of 0.01-70mm
Control system 6-axis motion control board pressure adjustment bi-directional (computer adjusted pressure)
Equipment function: wire cutting, peeling at both ends, blade material: tungsten steel/Swedish high-speed steel
Wire delivery method: 12 wheel tracked wire delivery. Working pressure: 0.5-0.8MPa
Transmission structure hybrid stepper motor, precision bidirectional screw, linear guide pillar, wire feeding speed of 40-50 meters/minute
Program storage capacity for numbers 0-99 (one copy, one click read, customizable number name) 1500-3000 pieces/hour

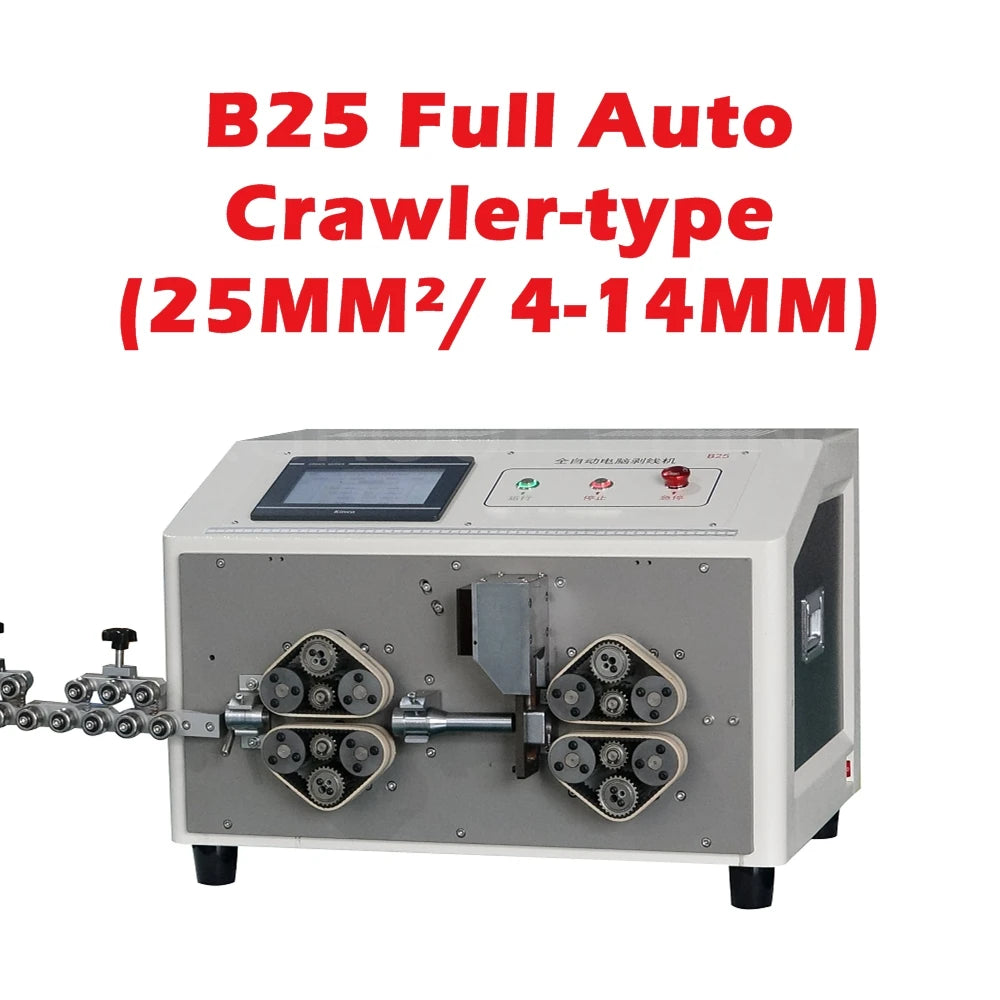

B25
Equipment name: Fully automatic computer wire stripping machine for cutting wire cores of 2-25 square meters
Equipment model B25, wire cutting diameter 4-14mm
Operating weight 70kg, diameter of conduit 4-6 8-10-12-14
External dimensions L650mm * W570mm * H455mm, detection function missing line detection
Input power AC220V/50Hz duct swing pneumatic
Machine power 1.8KW, tangent length 0.01-9999999.99mm
Rated power 0.8KW, stripping length 0.01-200mm
Display method: 7-inch touch screen with tail length of 0.01-70mm
Control system 6-axis motion control board pressure adjustment bi-directional (computer adjusted pressure)
Equipment function: wire cutting, peeling at both ends, blade material: tungsten steel/Swedish high-speed steel
Wire delivery method: 12 wheel tracked wire delivery. Working pressure: 0.5-0.8MPa
Wire delivery speed: 40-50 meters/minute, production capacity: 1200-2000 pieces/hour
Transmission structure servo motor, hybrid stepper motor, precision bidirectional screw, linear guide pillar
Program storage for numbers 0-99 (one click copy, one click read, customizable number name)

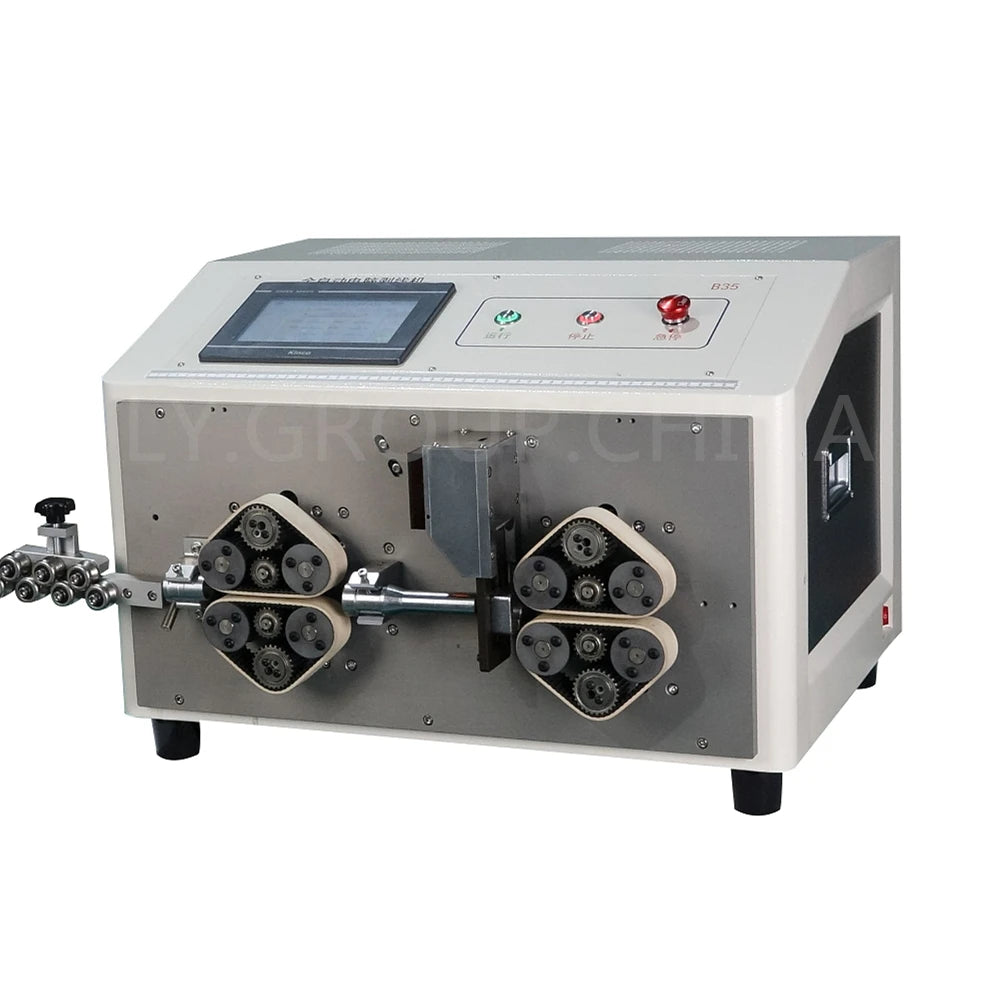

B35
Equipment name: Fully automatic computer wire stripping machine for cutting wire cores of 2-35 square meters
Equipment model B35, wire cutting diameter 2-16mm
Machine weight 75kg, diameter of conduit 4-6 8-10-12-14-16
External dimensions L650mm * W570mm * H455mm, detection function missing line detection
Input power AC220V/50Hz duct swing pneumatic
Machine power 1.8KW, tangent length 0.01-9999999.99mm
Rated power 0.8KW, stripping length 0.01-200mm
Display method: 7-inch touch screen with tail length of 0.01-70mm
Control system 6-axis motion control board pressure adjustment bi-directional (computer adjusted pressure)
Equipment function: wire cutting, peeling at both ends, blade material: tungsten steel/Swedish high-speed steel
Wire delivery method: 12 wheel tracked wire delivery. Working pressure: 0.5-0.8MPa
Wire delivery speed: 40-50 meters/minute, production capacity: 1000-1500 pieces/hour
Transmission structure servo motor, hybrid stepper motor, precision bidirectional screw, linear guide pillar
Program storage for numbers 0-99 (one click copy, one click read, customizable number name)

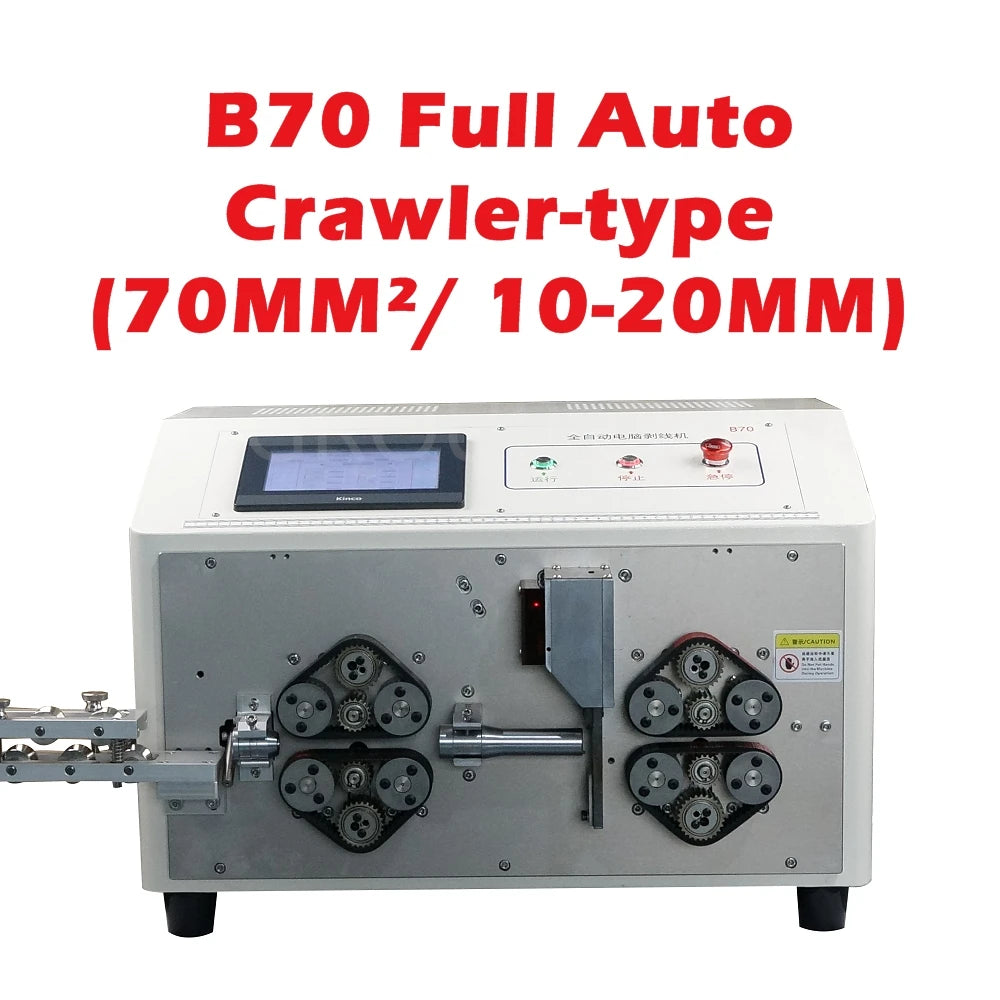

B70
Equipment name: Fully automatic computer wire stripping machine for cutting wire cores of 10-70 square meters
Equipment model B70, wire cutting diameter 10-20mm
Operating weight 90kg, diameter of conduit 10-12-14-16-18-20
External dimensions L650mm * W570mm * H455mm, detection function missing line detection
Input power AC220V/50Hz duct swing pneumatic
Machine power 2.2KW, tangent length 0.01-9999999.99mm
Rated power 0.8KW, stripping length 0.01-200mm
Display method: 7-inch touch screen with tail length of 0.01-70mm
Control system 6-axis motion control board pressure adjustment bi-directional (computer adjusted pressure)
Equipment function: wire cutting, peeling at both ends, blade material: tungsten steel/Swedish high-speed steel
Wire delivery method: 12 wheel tracked wire delivery. Working pressure: 0.5-0.8MPa
Transmission structure servo motor, hybrid stepper motor, precision bidirectional screw, linear guide pillar wire feeding speed 30-40 meters/minute
Program storage capacity of 600-1000 pieces/hour for numbers 0-99 (one copy, one click read, customizable number name)
