SWT-608-JEN JES Peeling Stripping Cutting Machine 0.1-6mm2 For Computer Automatic Wire Stripping Machine AWG8-AWG28 220V 110V

$2,802.99

Color Set 5 Set 1 Set 2 Set 6 Set 3 Set 4

Reliable shipping

Flexible returns

Upgraded SWT-608-JEN JES Peeling Stripping Cutting Machine For Computer Automatic Wire Strip Stripping Machine 0.1-8mm2 AWG8-AWG28 220V 110V Optional Touch Screen Control

Options:

1.SWT-608-JEN

2.SWT-608-JEN + 1 Pair More Knife

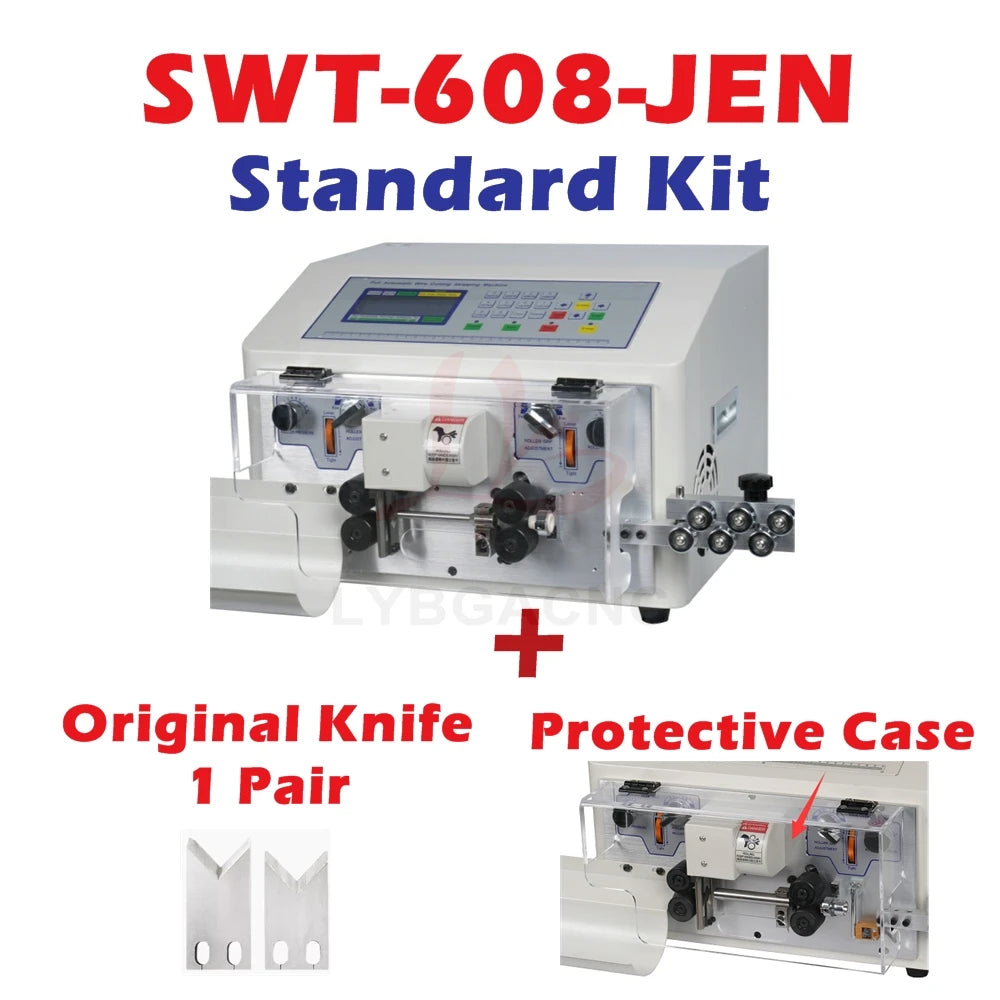

3.SWT-608-JEN + 1 Pair More Knife + Protective Case

4.SWT-608-JES

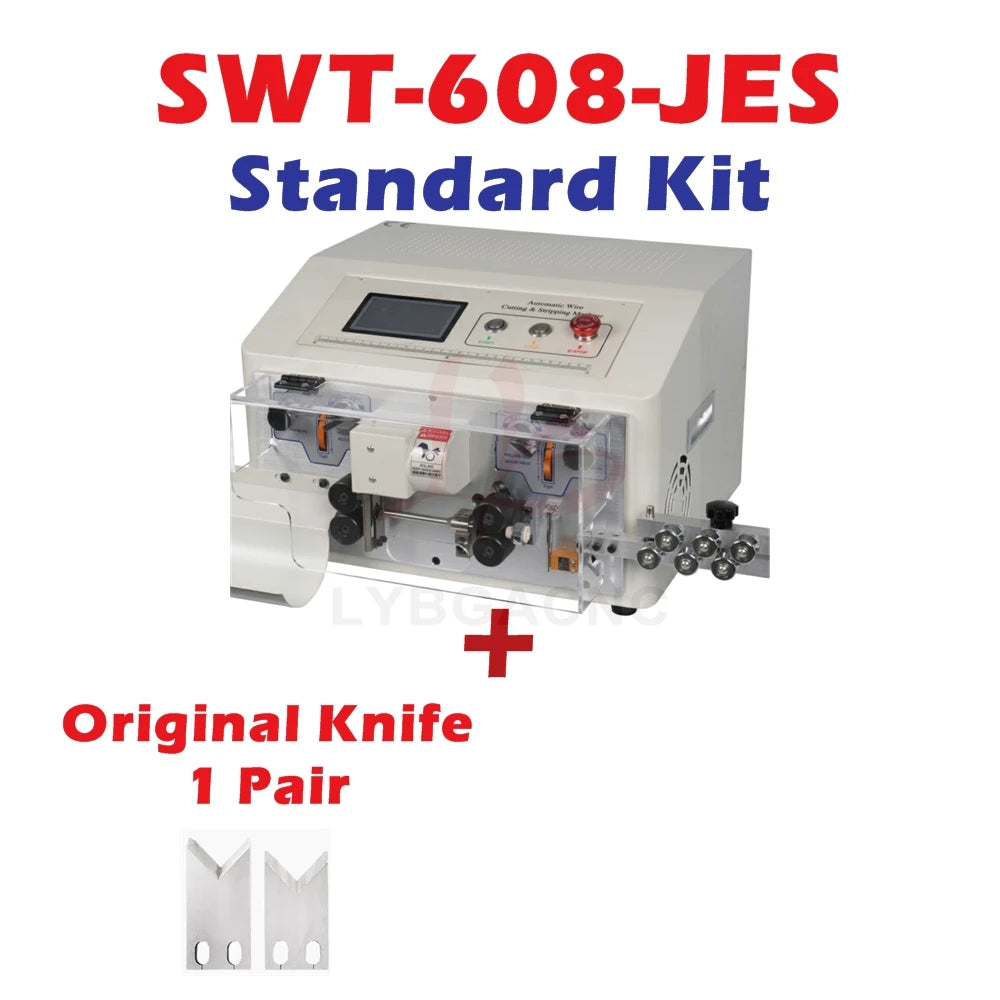

5.SWT-608-JES + 1 Pair More Knife

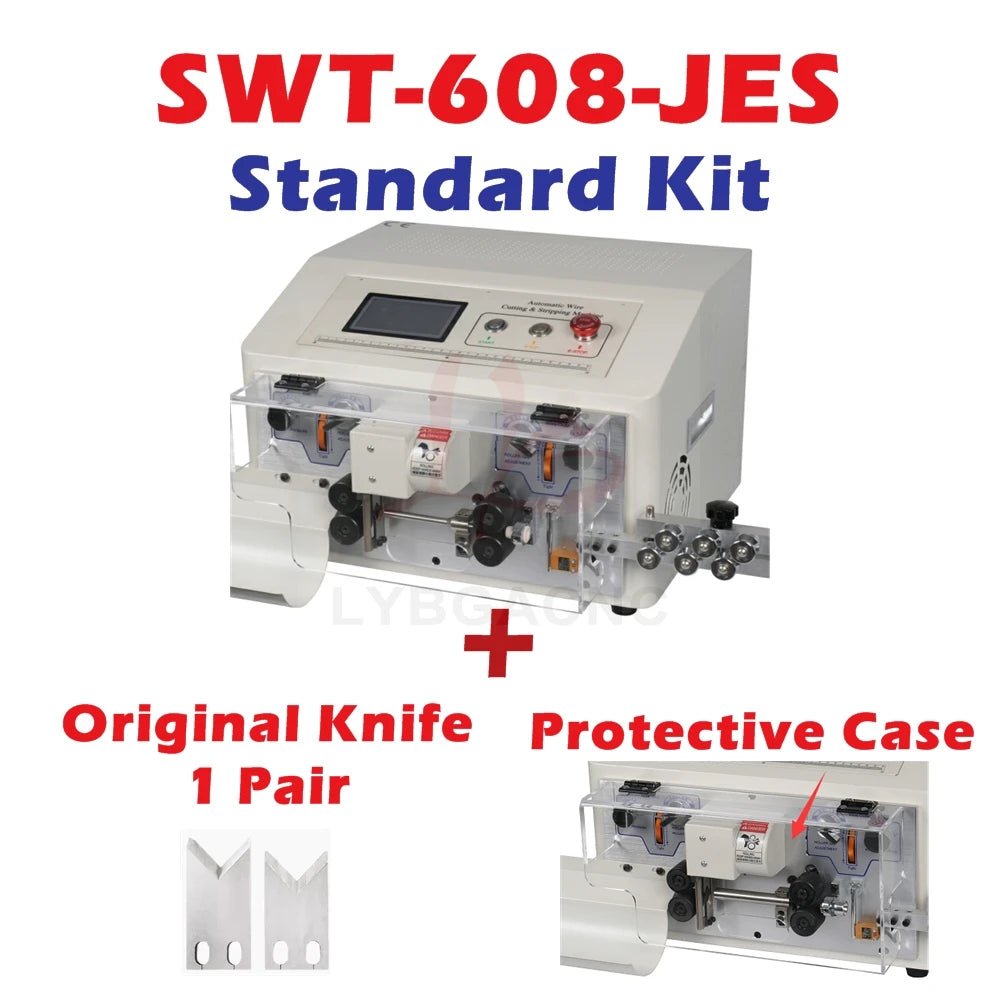

6.SWT-608-JES + 1 Pair More Knife + Protective Case

Product Description

The product function characteristics:

Collection and integration, the microcomputer automatic computer for the strip line machine is a kind of introduced in Japan, Taiwan, and other advanced automation technology of all of the numerical control equipment.

Our product is to use LCD screen man-machine dialogue mode, with nice appearance, simple operation, convenient maintenance, stable performance, speed, precision higher main features. Wire length can set arbitrary, thrum and the line end parameters can also according to the customer request to change, different degree of finish stripping wires, also has the high tension line of line, casing of the shear etc. Function

Applications:

Widely used in the electronics industry, the city ahs, electrical appliances, motor, lamps and lanterns, toys, and other various products of wire processing. Optimal stripped wire PVC, teflon, glass wire, etc.

Technical parameters:

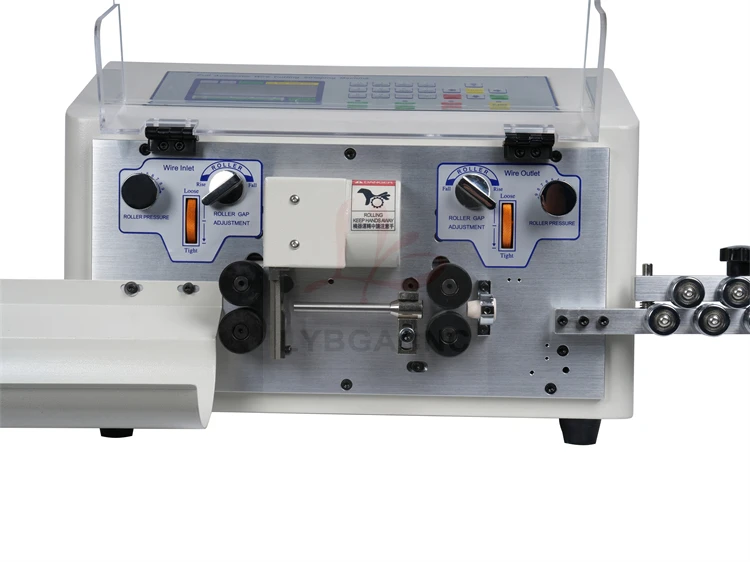

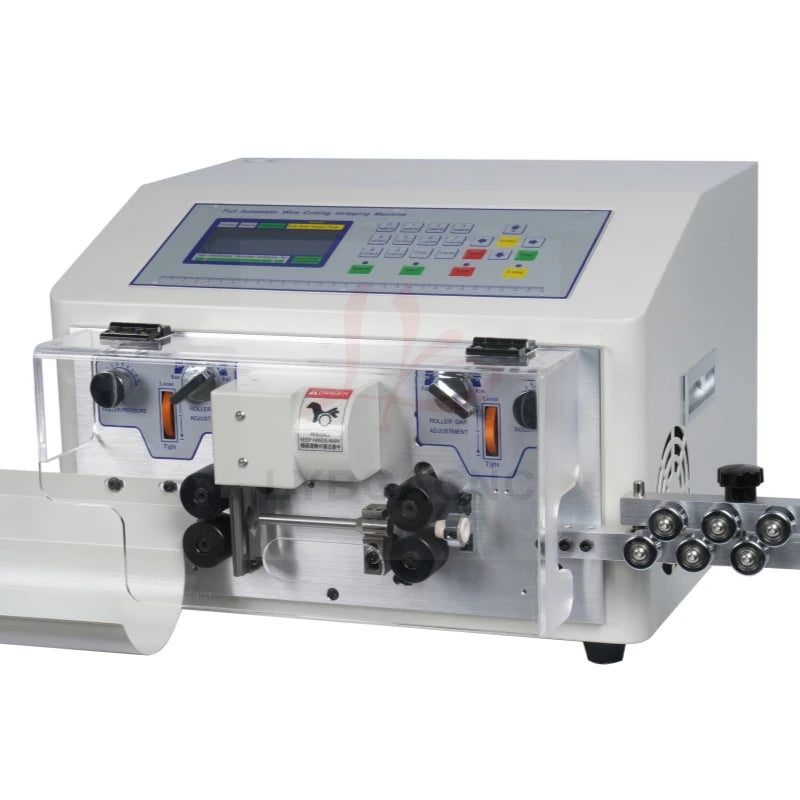

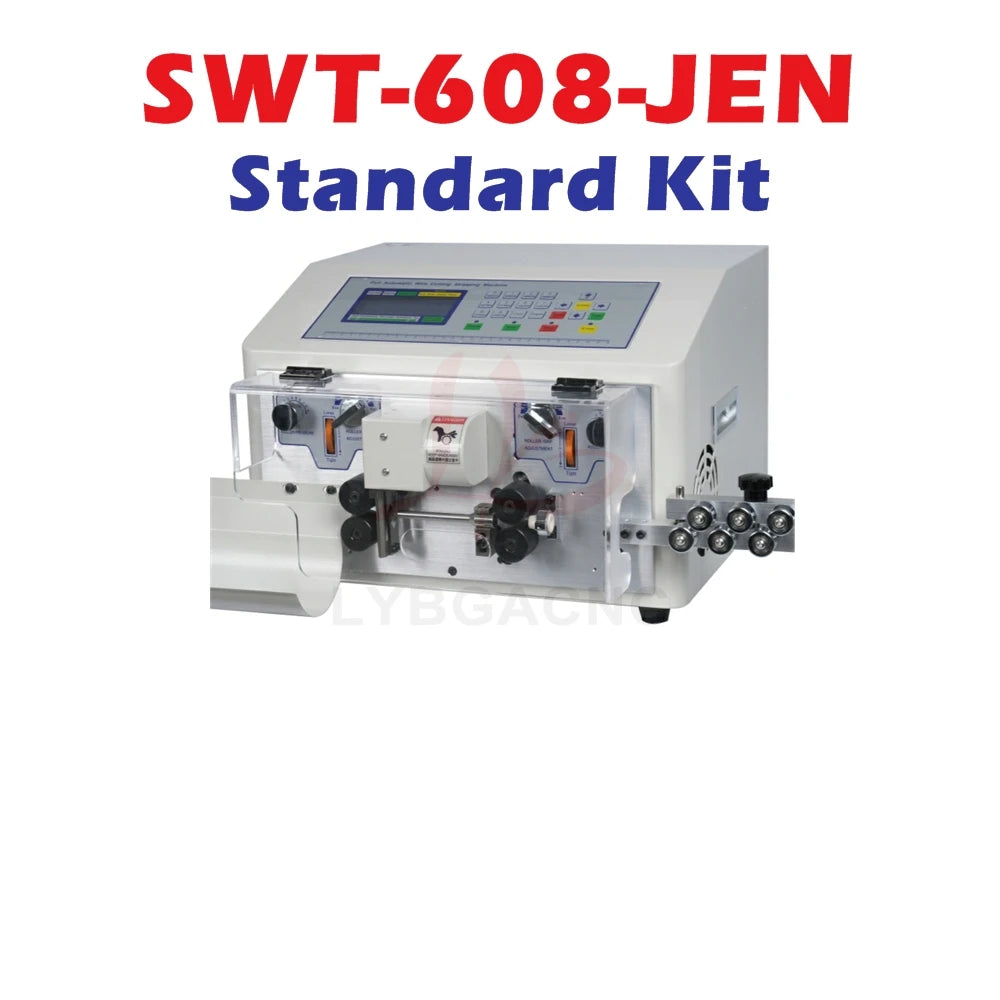

Model：SWT608-JE/N（6 square thick wire stripper with jump tube）

Weight：28KG Power：300W

Electrical connection: 110V/220V 50HZ/60HZ

Operation interface: English/Chinese (LCD display)

Machine dimension: 460*470*325mm

Wire length range：1～10000mm

Strip length：Front end:0-40;rear end:0-40mm

Length accuracy：± (0.002xL)mm

Intermediate peeling times:13 times

Wire cross section: 0.1～6mm²

Max conduit inside diameter:￠8mm

Wire material:PVC,Teflon,Braided,Fiberglass wire

Blade material:High-speed steel

Transport speed: (L=100MM piece/hour）3000-5000 pieces

Driving mode: four-wheel drive (silent hybrid stepper motor, 0.1mm forward per step)

Stripping speed: The cutting speed and wire feeding speed can be adjusted respectively. (0 is the slowest, 9 is the fastest)

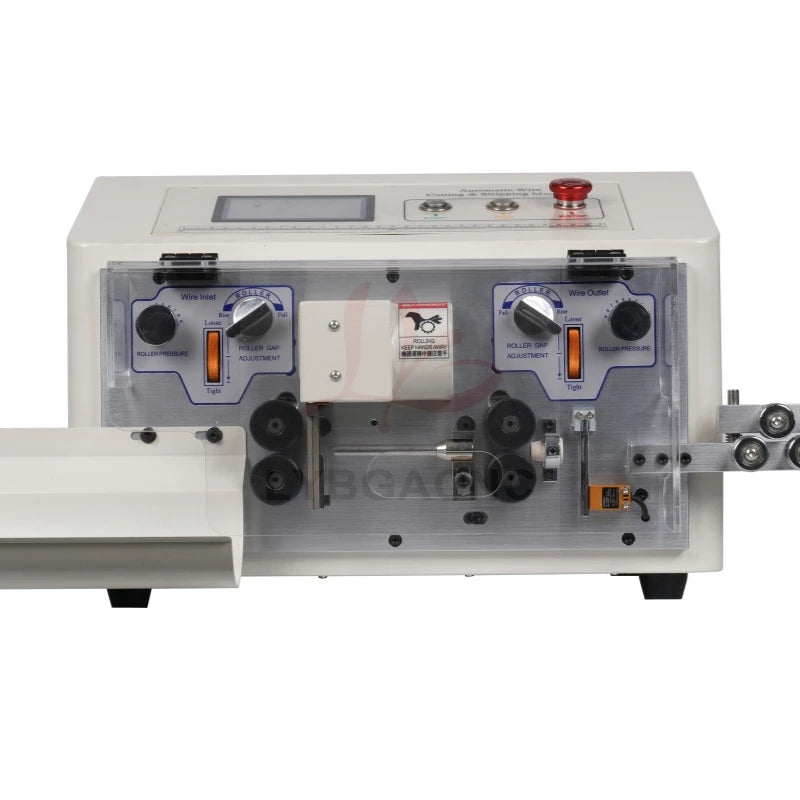

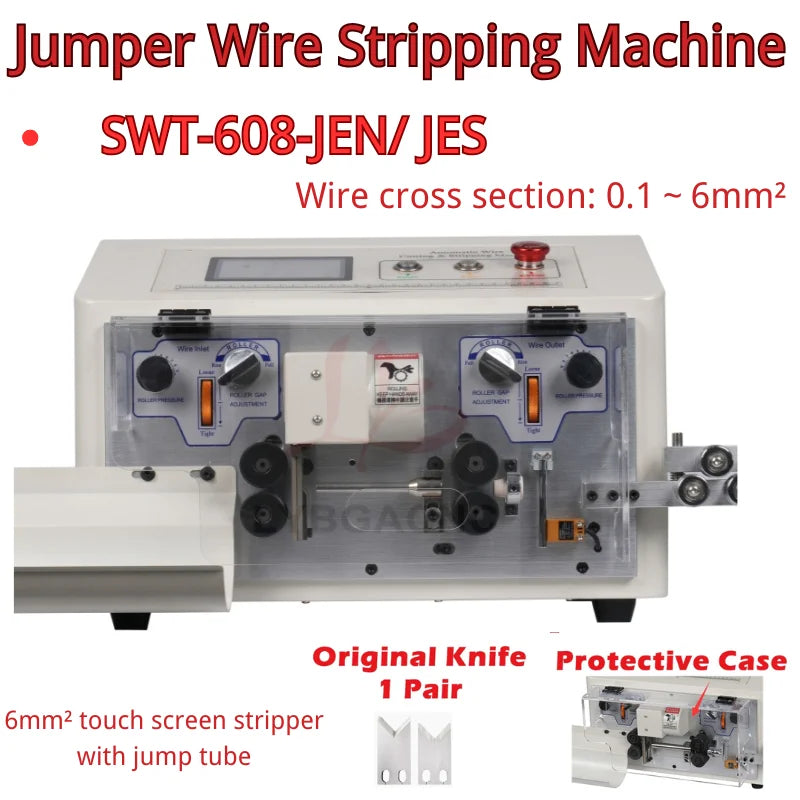

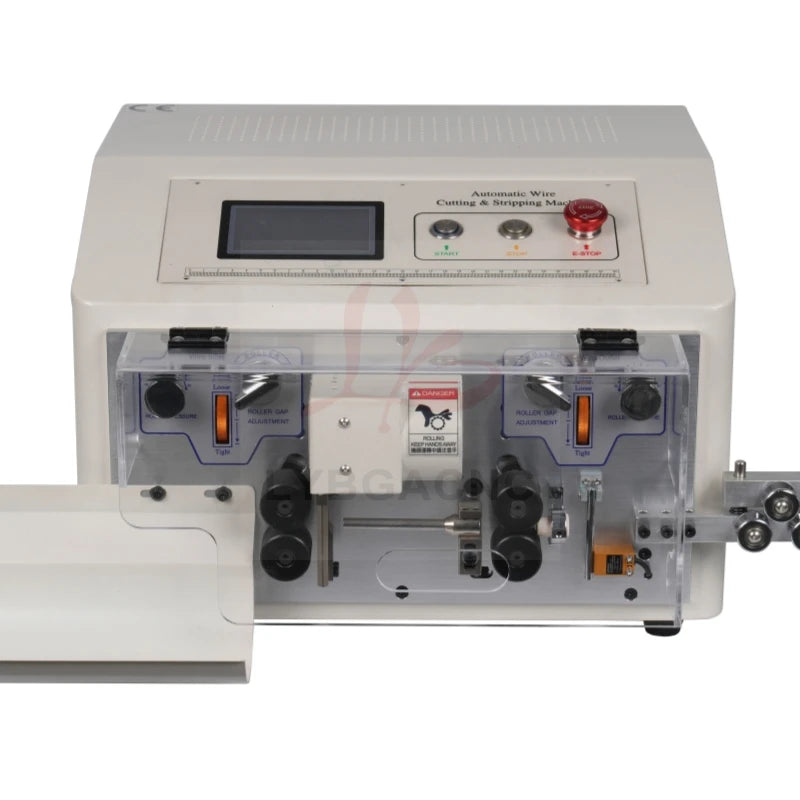

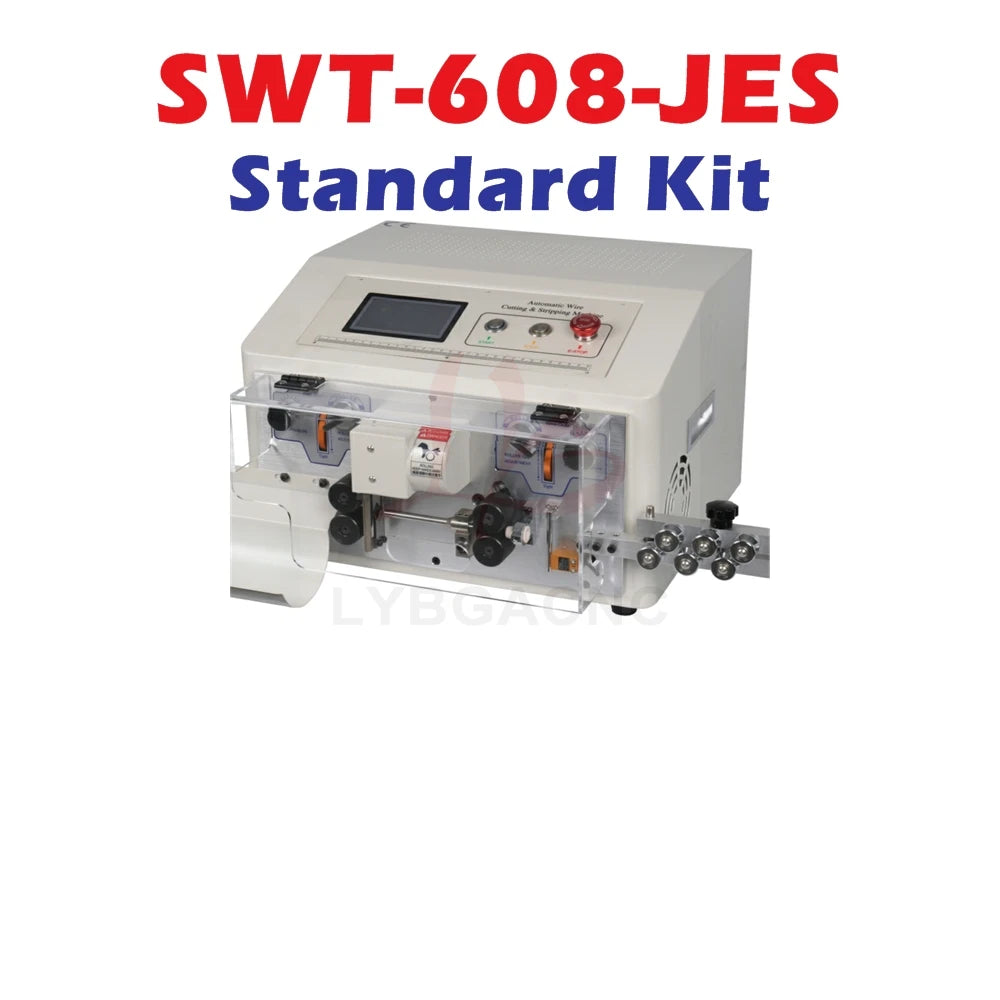

Model：SWT608-JE/S（6mm² touch screen stripper with jump tube）

Weight：28KGPower：300W

Electrical connection: 110V/220V 50HZ/60HZ

Operation interface: 4.3 inch Chinese and English switching touch screen display

Machine dimension: 460*470*325mm

Wire length range：1～9999mm
