WJ-203 Semi-automatic Sheathed Cable Inner Wires Stripping Twisting Machine Single Wire Stripper Cutter

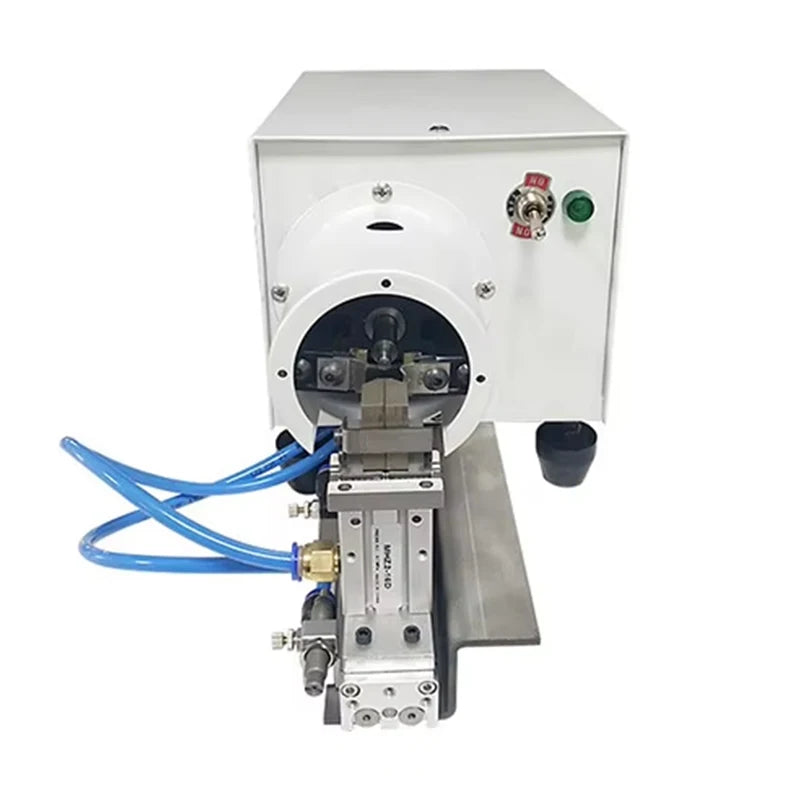

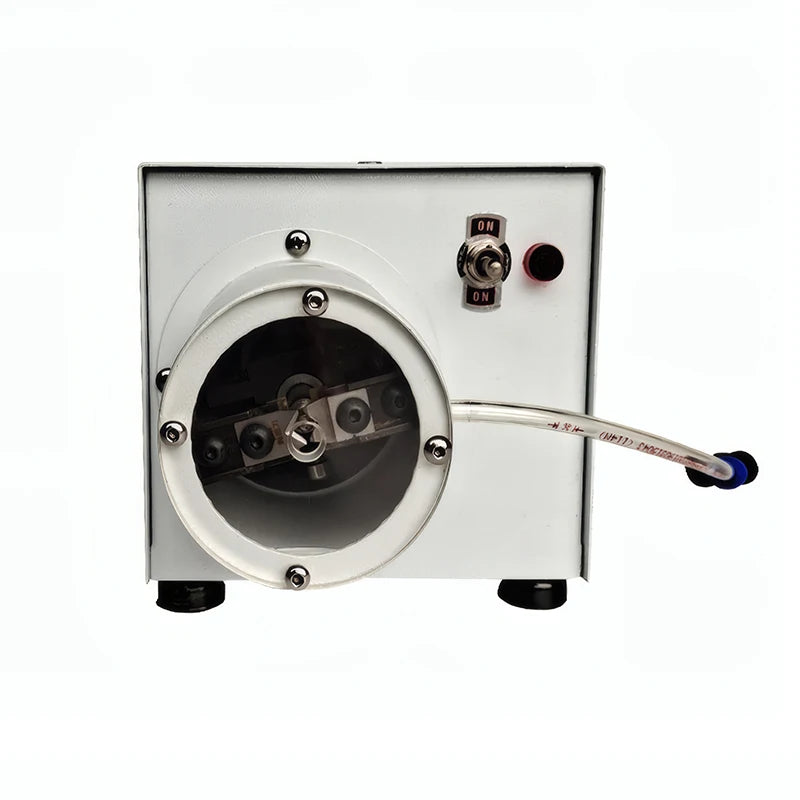

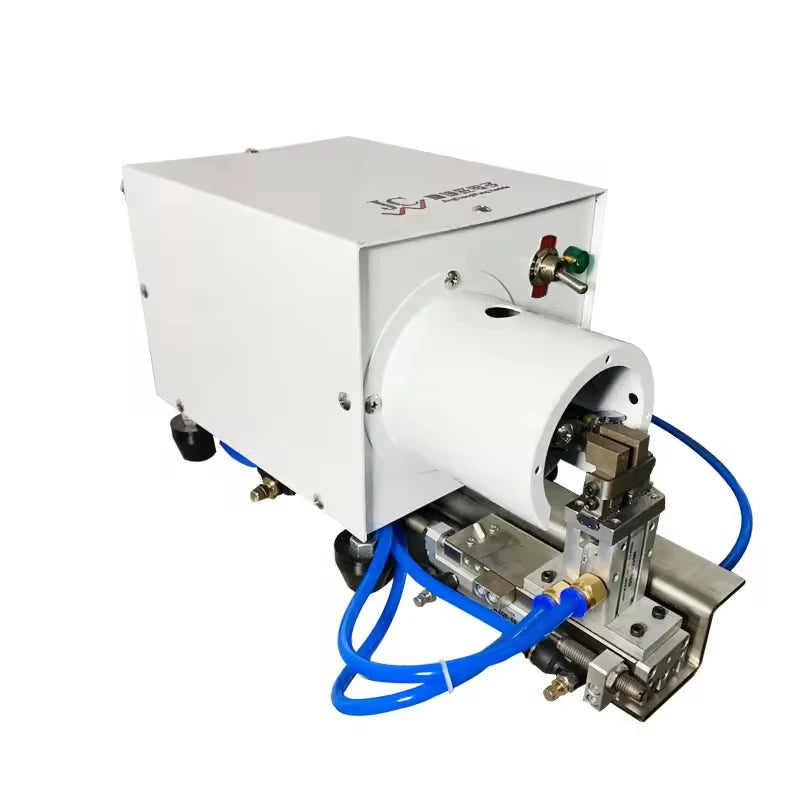

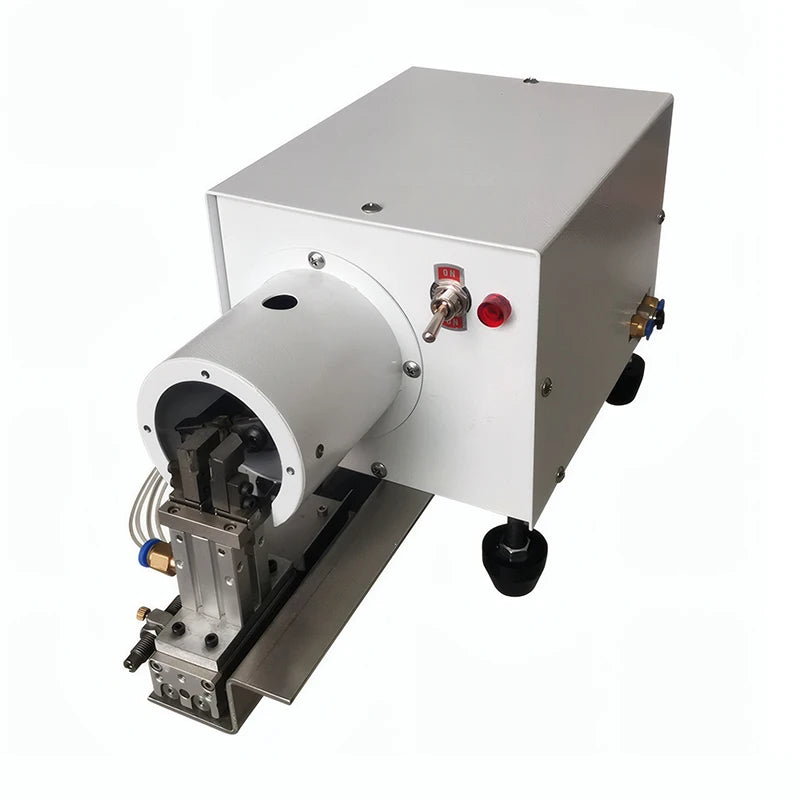

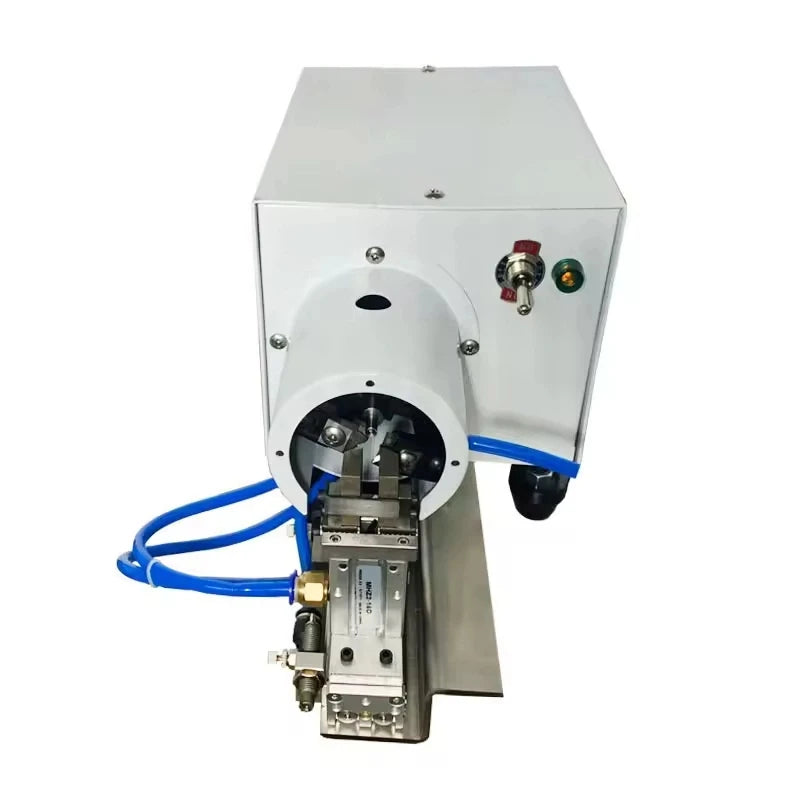

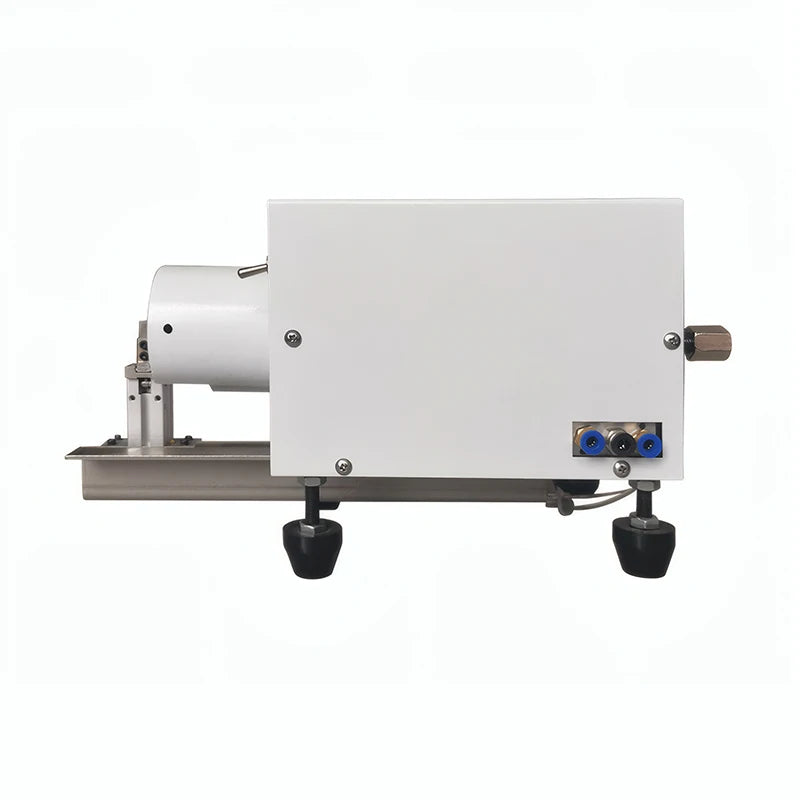

WJ-203 Pneumatic Automatic Telescopic Stripping and Twisting Machine

This equipment is pneumatically driven, designed for efficient stripping and twisting of wires, and is suitable for a variety of wires.

Core parameters
Model: WJ-203
AIR SUPPLY REQUIREMENTS: 6 KG
PEEL-TORSION LENGTH RANGE: 3-45 MM
Working power supply: 220V 50Hz
EQUIPMENT WEIGHT: 12 KG
EQUIPMENT SIZE: 320*180*170 MM
Applicable wire type: 26-10AWG power cord/electronic wire/multi-core compound wire

Equipment features:
It is controlled by electric foot switch, and the lightweight design replaces the bulky chain foot control, which reduces the labor intensity of workers, and the operation is light and efficient.

The cutter adopts the ordinary double-knife peeling structure, which reduces the high cost of the tool and makes it easier to replace.

The power consumption of the equipment is lower than that of ordinary stripping and twisting machines.

Equipped with a V-shaped blade, the twisting effect is better, and the copper wire is not damaged, and it is specially aimed at the rubber power cord and other wires that are difficult to handle by other machines.

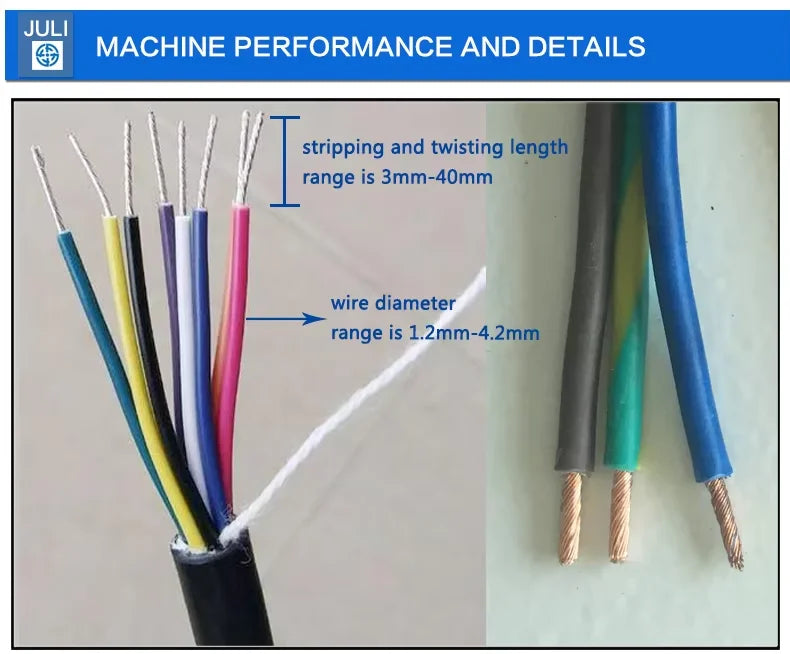

Processing effect
The stripping and twisting wire is completed at one time, which is suitable for the single operation of electronic wire and power cord.

The end of the copper wire is tightly bundled and tapered, which is not easy to loosen.

The operation is simple and easy to understand.
