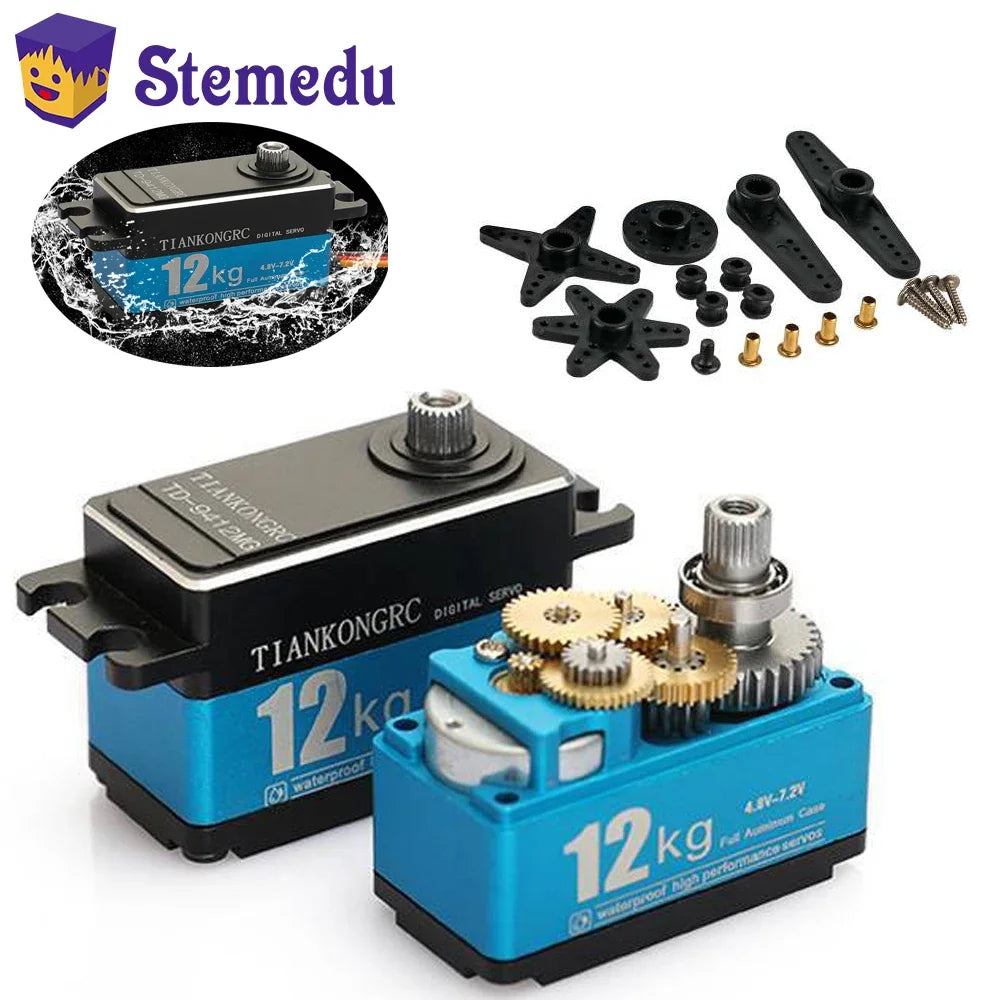

12KG TD-9412MG High Torque Full Metal Digital Servo Carbon Brush Motor 180/270/360 Degree Short Model for 1:10 1:8 RC Car Robot

12KG TD-9412MG High Torque Full Metal Digital Servo Carbon Brush Motor 180/270/360 Degree Short Model for 1:10 1:8 RC Car Robot

$69.99
Color

Reliable shipping

Flexible returns


12KG 4.8-8.4V TD-9412MG High Torque Full Metal Digital Servo Carbon Brush Motor 90/180/270/360 Degree Blue Short Model

Apply Environmental Condition
Storage Temperature Range: -30°C to 80°C
Operating Temperature Range: -25°C to 70°C

Standard Test Environment
Temperature Range: -25°C to 70°C
Humidity Range: 65% ±10%

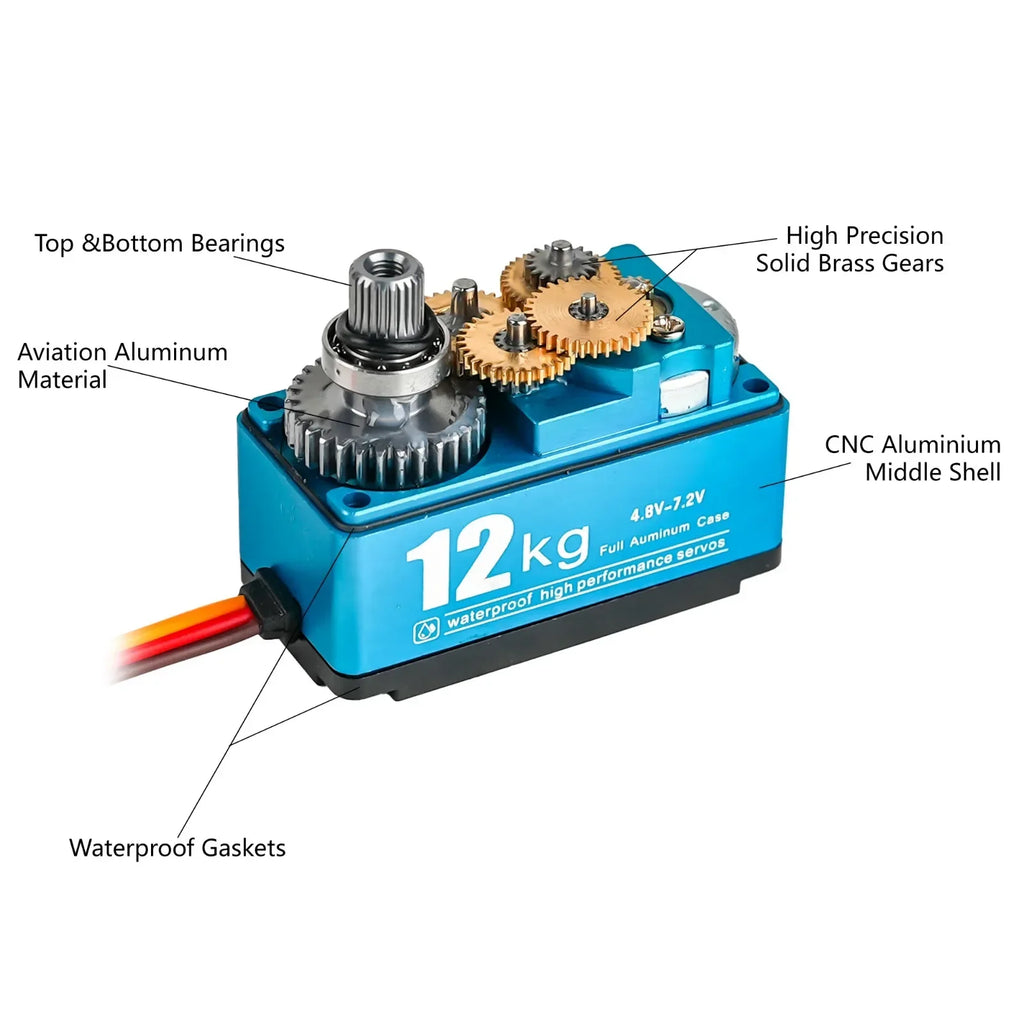

Mechanical Specification

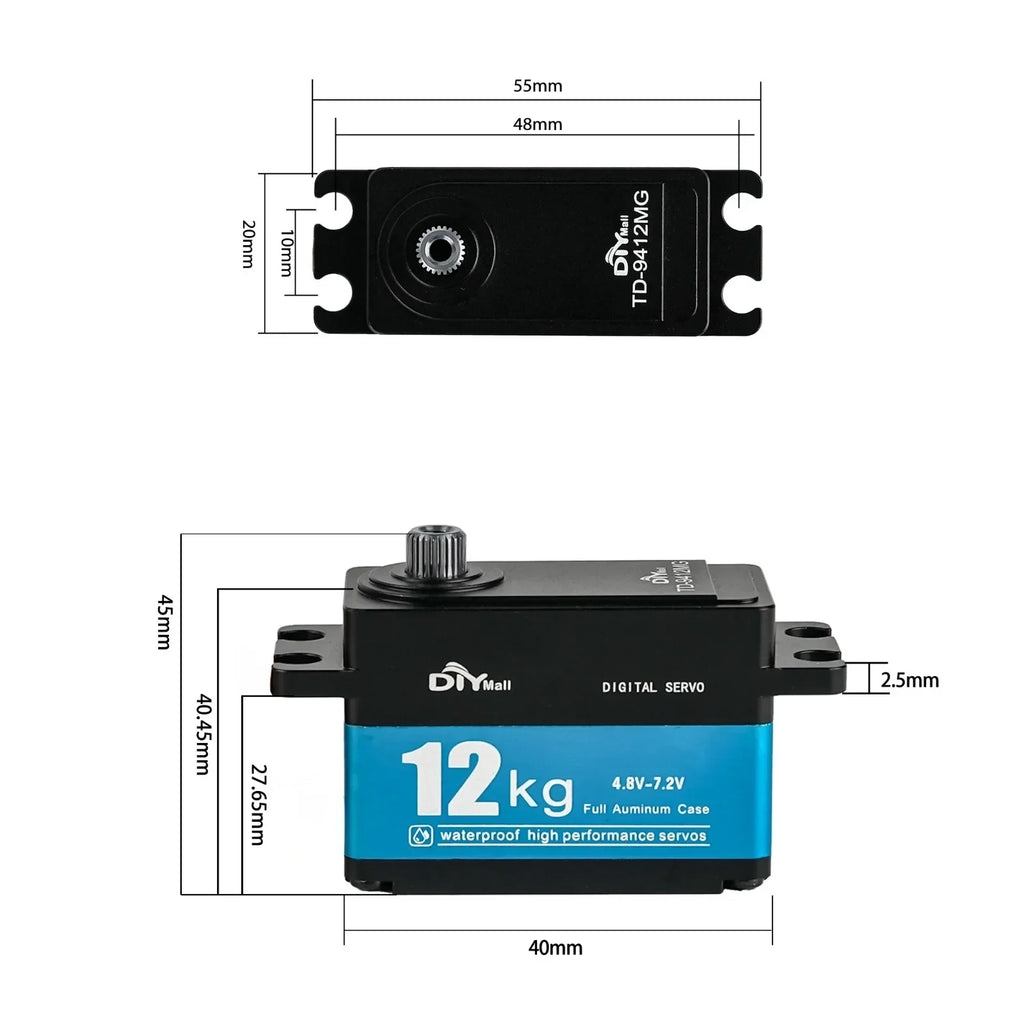

Size: 40.820.228.7mm
Weight: 60g ±5%
Gear type: "6 Metal"
Limit angle: 180°
Bearing: 2BB
Horn gear spline: 25T, Diameter: 5.9mm
Horn type: Plastic, POM
Case: "Aluminum alloy"
Connector wire: 320mm ±5mm
Motor: Carbon brush motor
Splash water resistance: IP65
Electrical Specification

Operat voltage: 4.8V to 7.2V
Idle current: mA
No load speed: 0.12sec/60°, 0.09sec/60°
Runnig current: 210mA, 260mA
Peak stall torque: 11.5kg.cm, 14.5kg.cm
Stall current: 2000mA ±10%, 2700mA ±10%
Working voltage range: 4.8-7.2V
Control Specification

Command signal: Pulse width modification
Amplifier type: Digital controller
Pulse width range: 500～2500usec
Neutral position: 1500usec
Running degree: 180°±3°(when 500～2500usec)
Dead band width: 5 usec
Rotating direction: Counterclockwise (when 1000～2000usec)

Attention :  The logo of DIYmall and TIANKONGRC is send by random
