Specification:

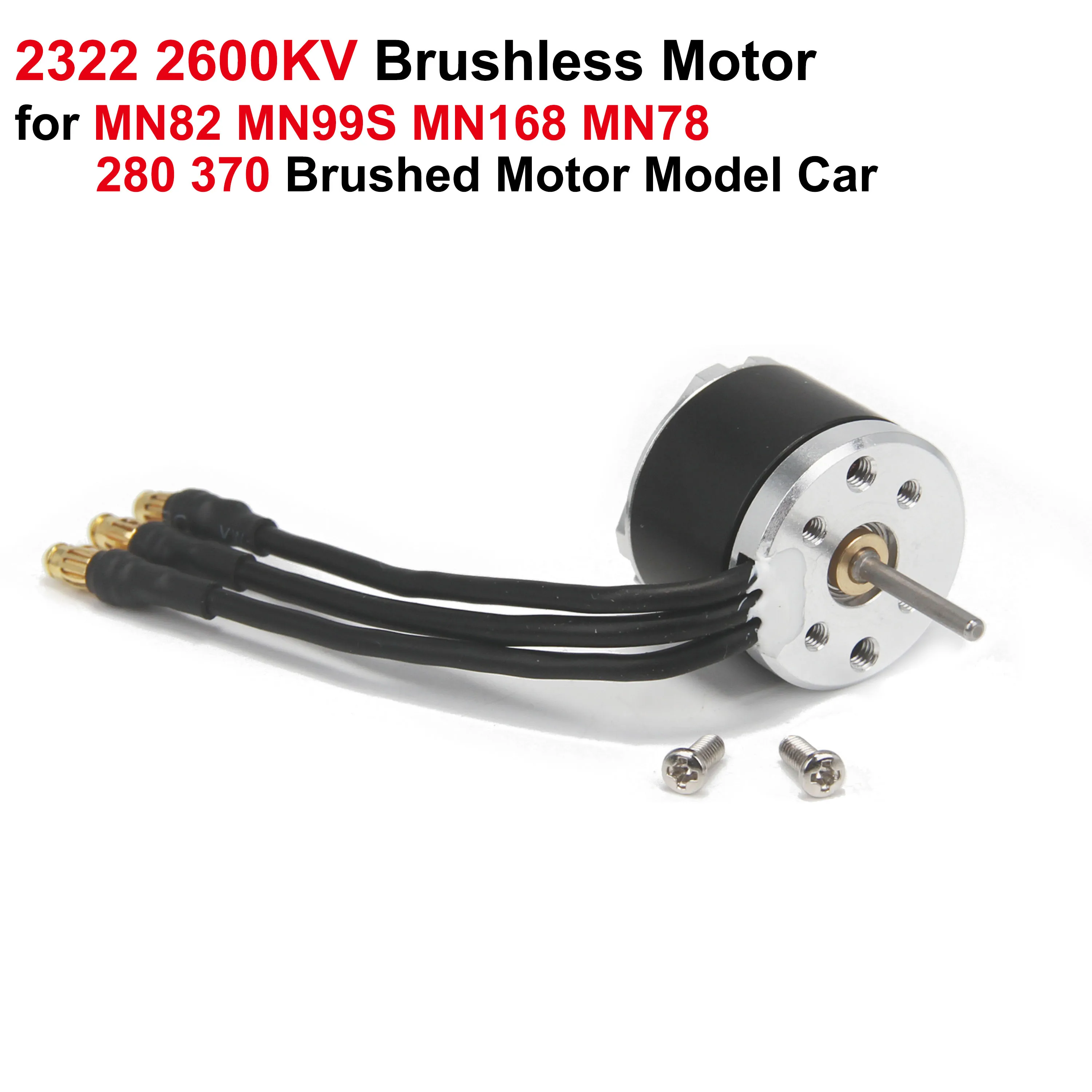

Applicable vehicle models: MN82 MN99S MN168 MN78(Need to be paired with 10T motor teeth)
280 370 Brushed Motor Model Car

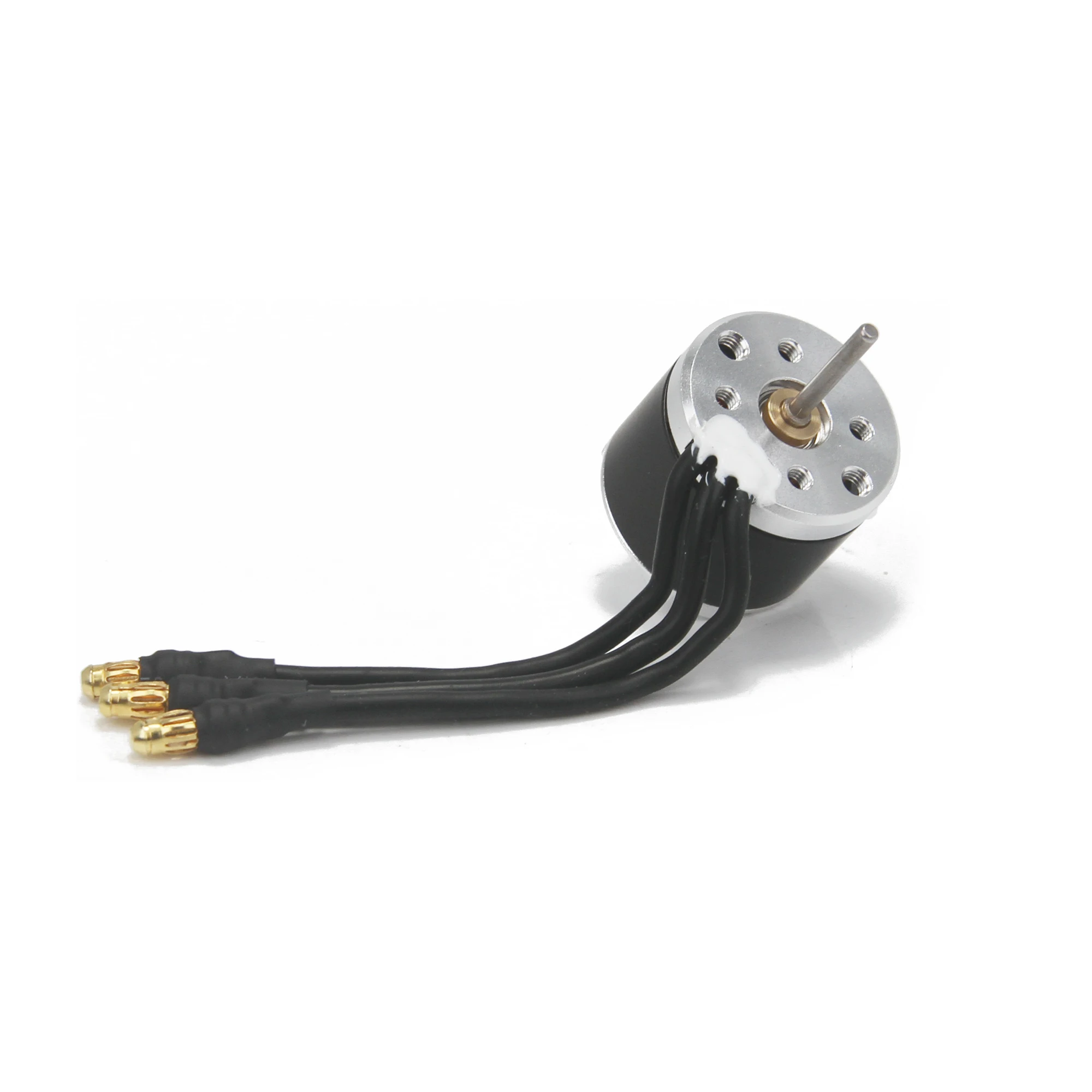

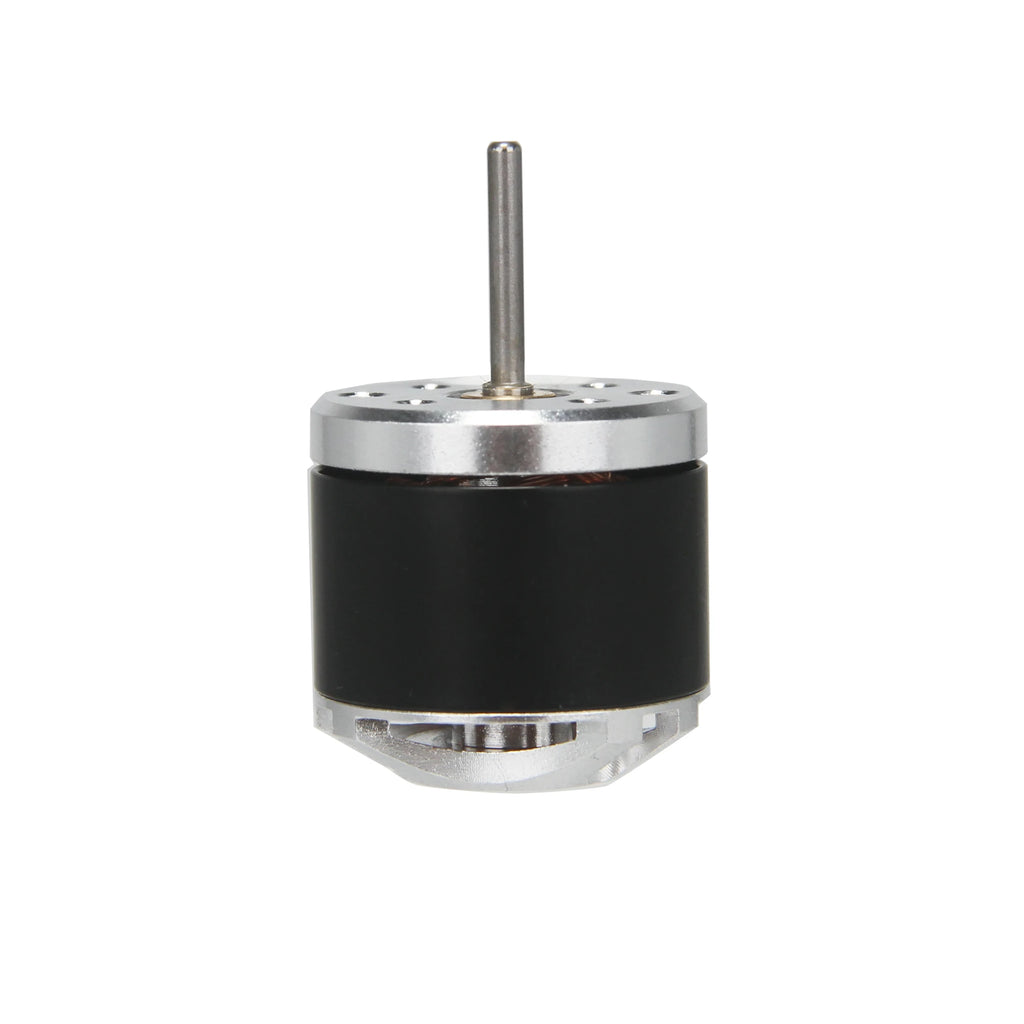

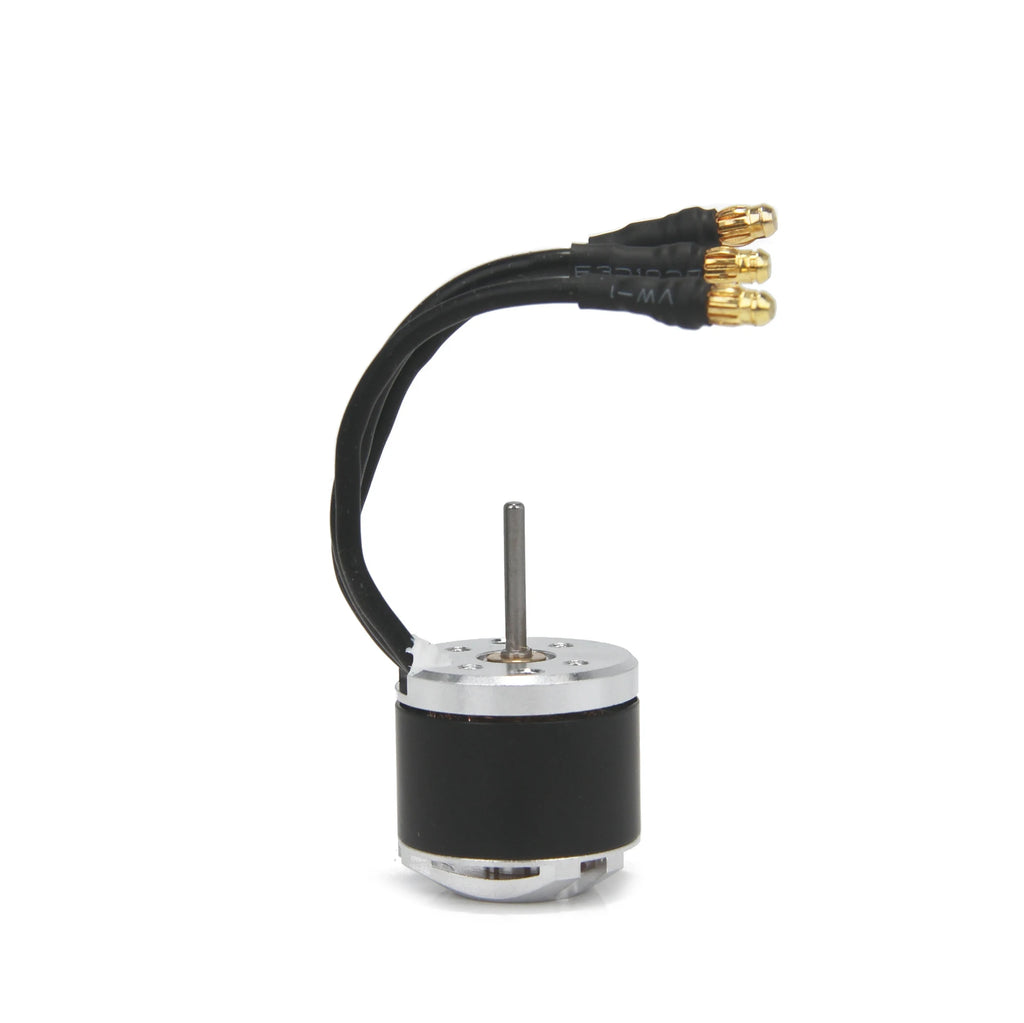

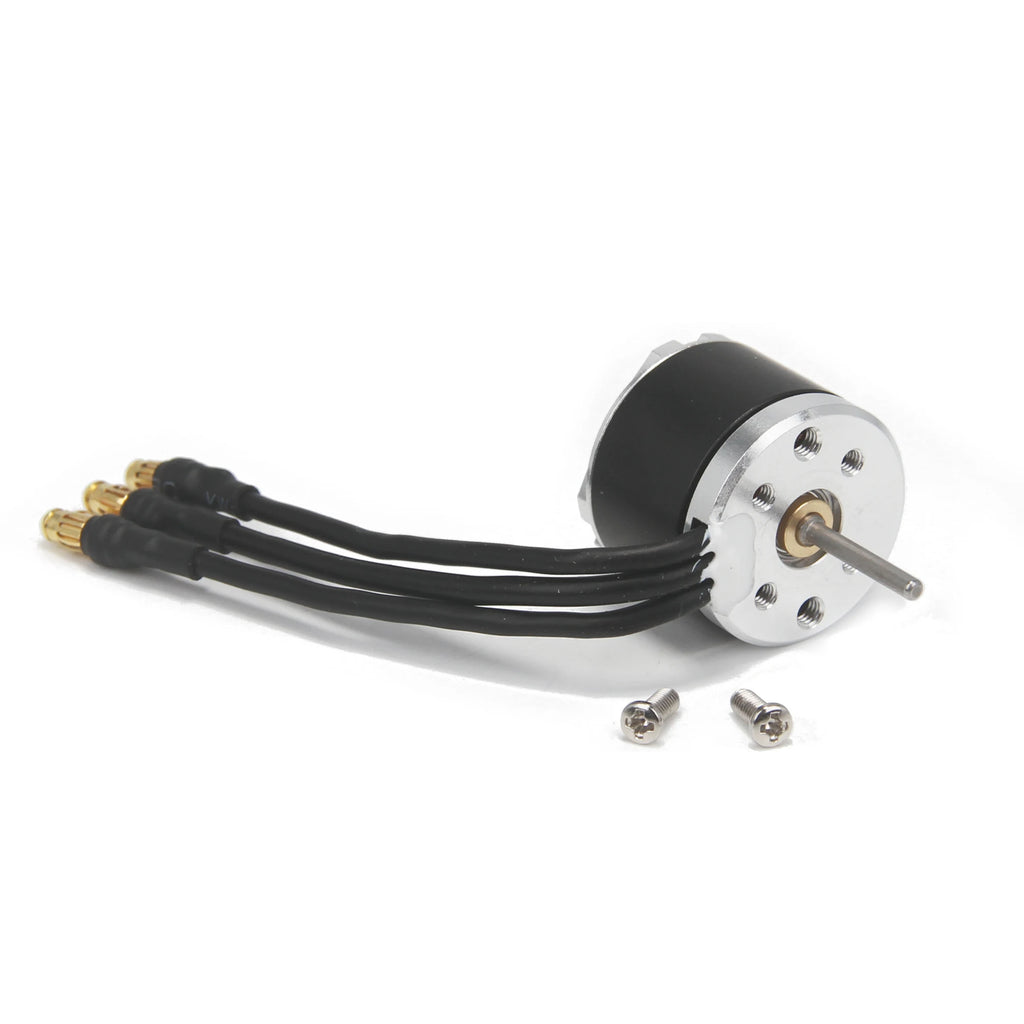

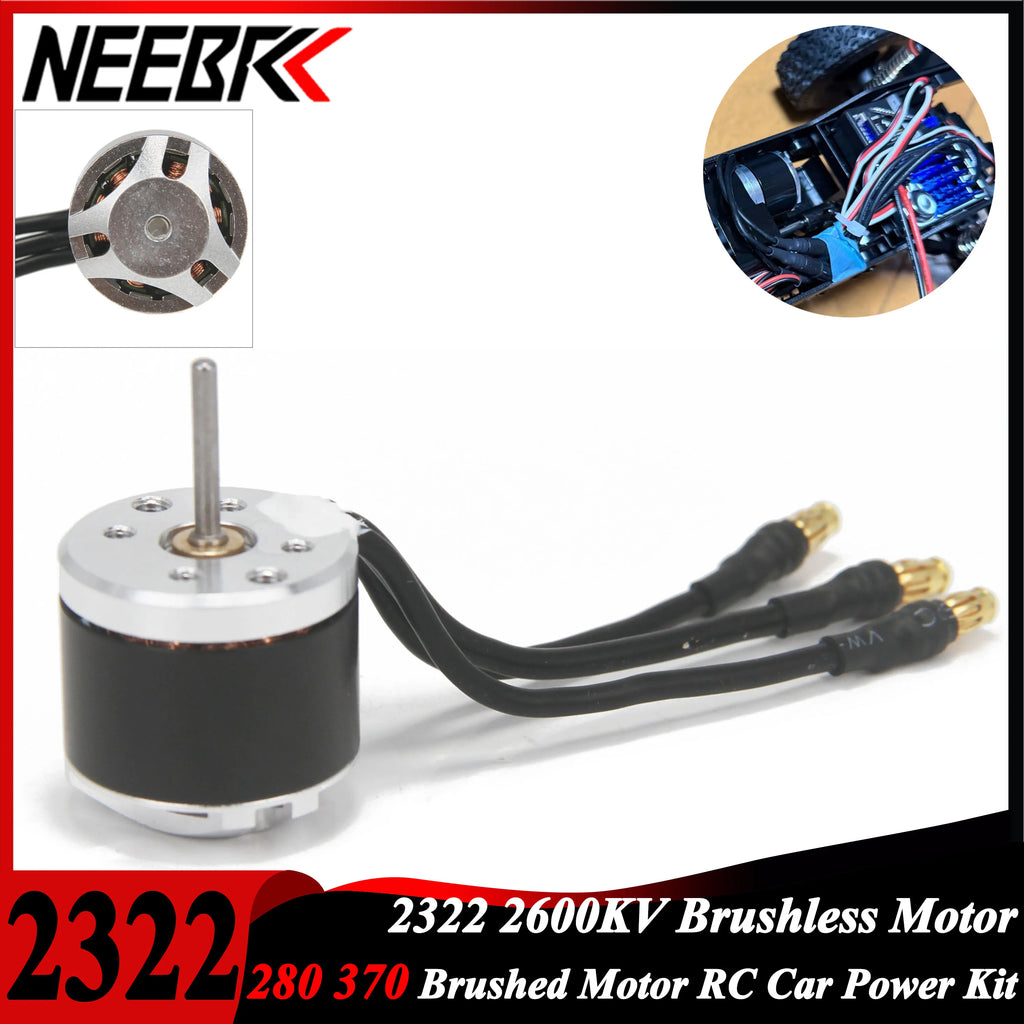

Product: 2322 2600KV external climbing motor
Using voltage range: 5.5-9V
Rated voltage: 7.2[VDC]
No-load current: 1200 [mA] max
No-load speed: 19000±10%[rpm]
Load torque: 100 [gf.cm]
Load speed: 17000+10% [rpm]
Direction: CCW/CW (viewed from the output shaft end)
Insulation grade: Class B
Axial play: 0.3 [mm] max

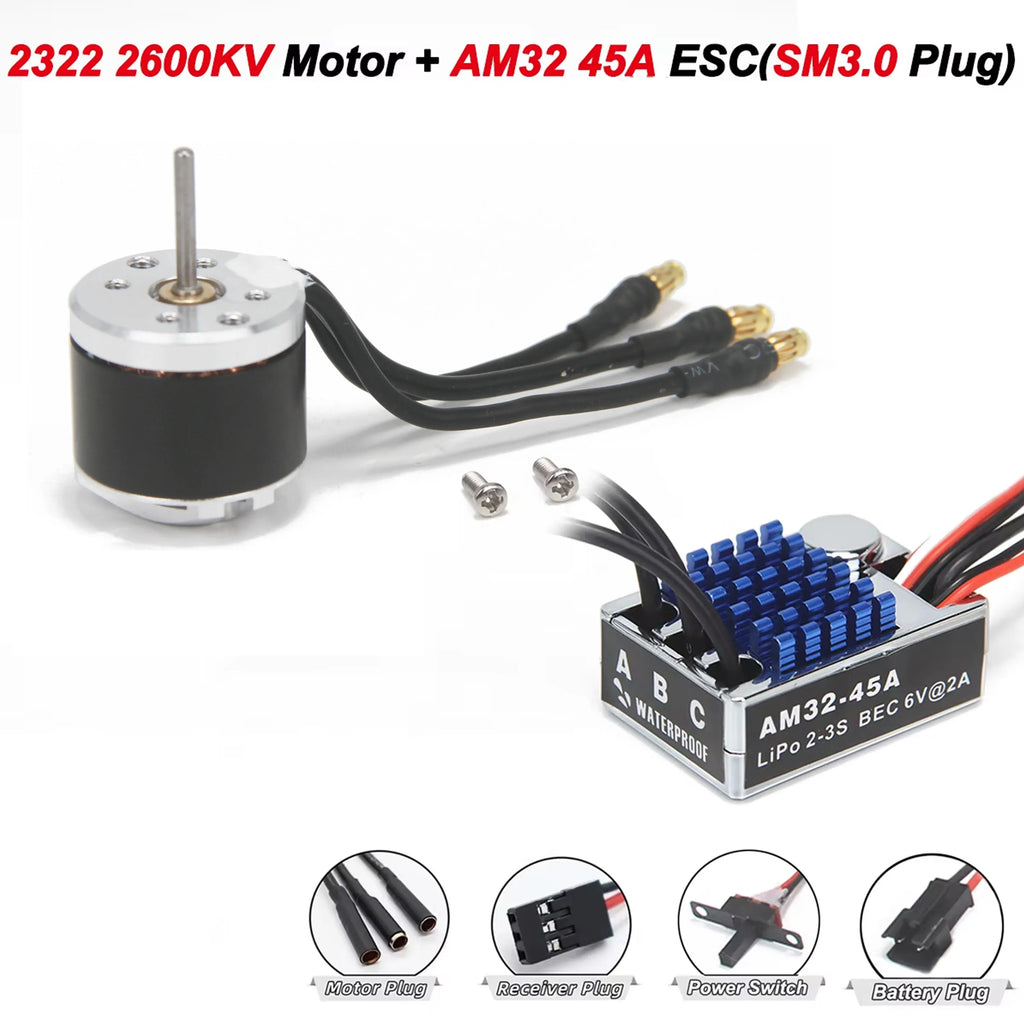

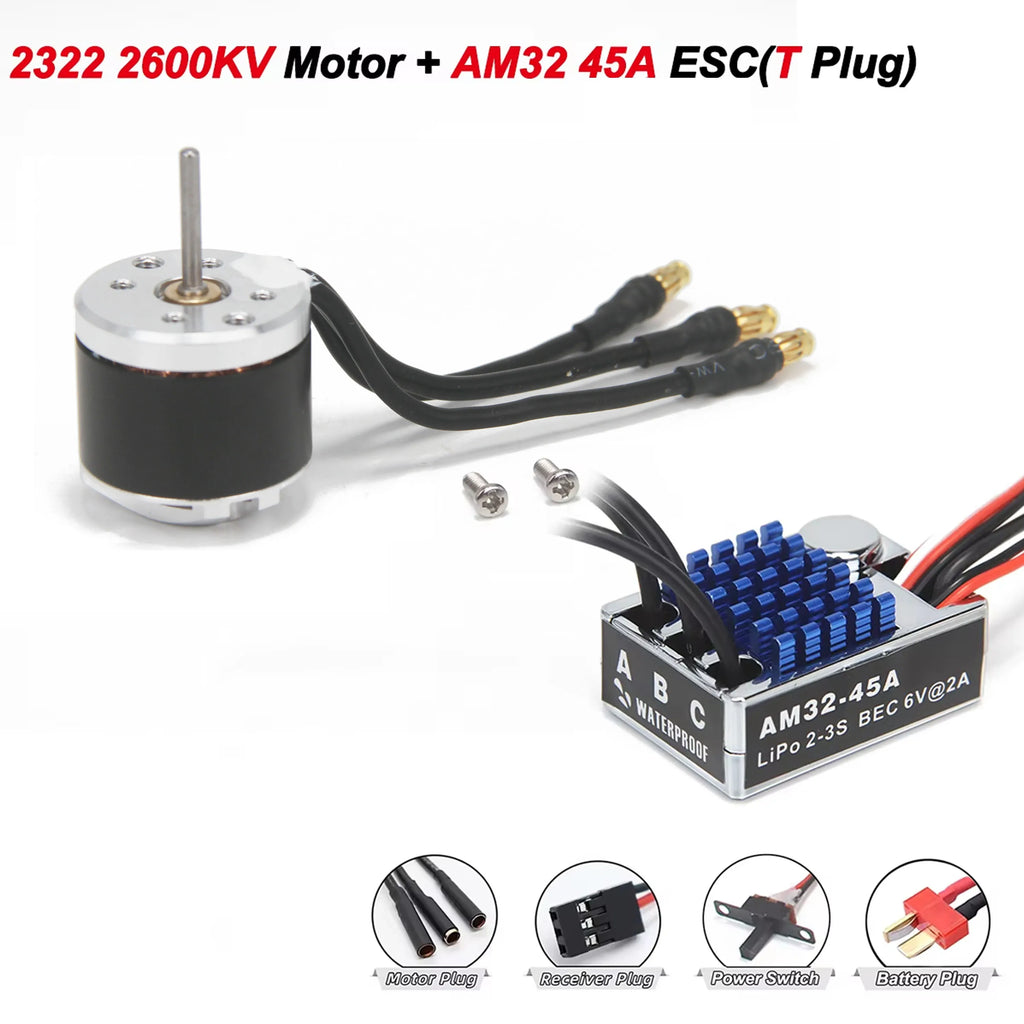

2322 2600KV Outrunner Brushless Motor for 1/10 1/12 1/14 1/16 RC Car Crawler AXIAL SCX24 280 370 Brushed Motor Upgrade Power Kit
$76.99
Reliable shipping
Flexible returns
2322 2600KV Outrunner Brushless Motor for 1/10 1/12 1/14 1/16 RC Car Crawler AXIAL SCX24 280 370 Brushed Motor Upgrade Power Kit
Attention: In order to meet everyone's DIY needs and be suitable for a wider range of model cars, this motor does not come with motor teeth. You can customize the motor teeth by yourself.
Specification:
Applicable vehicle models: MN82 MN99S MN168 MN78(Need to be paired with 10T motor teeth)
280 370 Brushed Motor Model Car
Product: 2322 2600KV external climbing motor
Using voltage range: 5.5-9V
Rated voltage: 7.2[VDC]
No-load current: 1200 [mA] max
No-load speed: 19000±10%[rpm]
Load torque: 100 [gf.cm]
Load speed: 17000+10% [rpm]
Direction: CCW/CW (viewed from the output shaft end)
Insulation grade: Class B
Axial play: 0.3 [mm] max

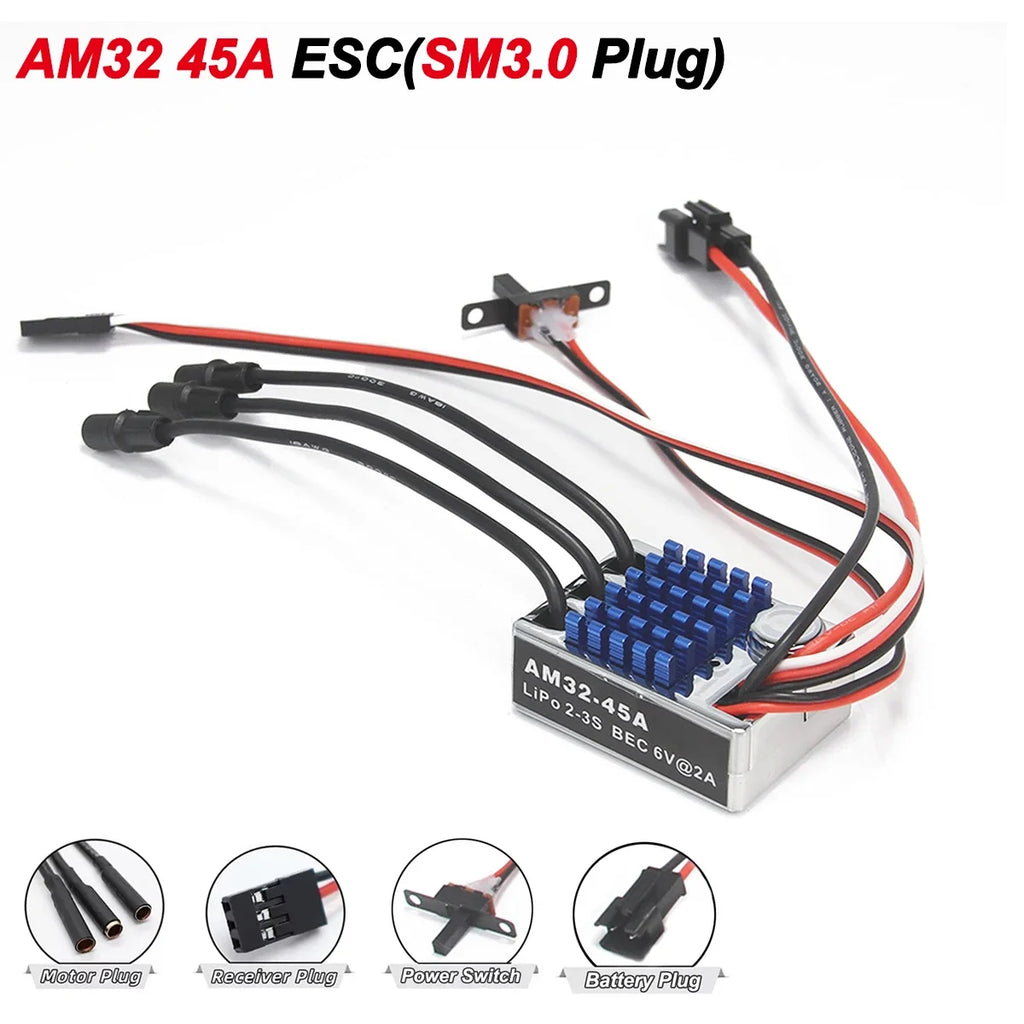

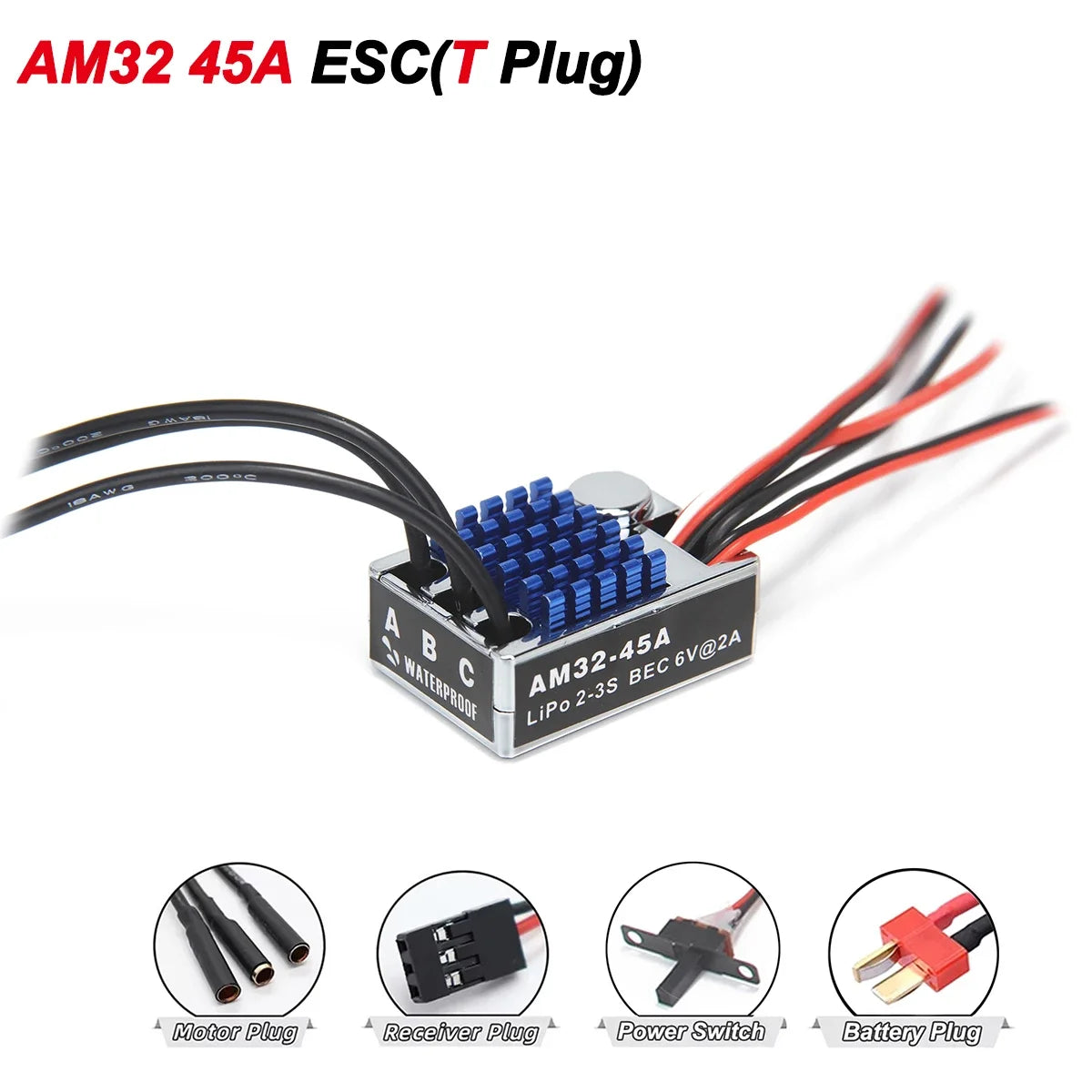

AM32 45A ESC Specification:
Voltage:7.4-11.1V
Lipo:2-3S
Battery Connector:SM3.0/T Plug
Cont.Current:45A
Start-up:Sine start
Low speed torque compensation: Comes with low-speed torque compensation
Size:38.5*28*18.5mm
Case Material:Plastic
