4PCS 9g SG92R Micro Servo Plastic Gear Mini Steering Gear 180/270/360 Degree Carbon Brush Motor for RC Airplane Helicopter Car

4PCS 9g SG92R Micro Servo Plastic Gear Mini Steering Gear 180/270/360 Degree Carbon Brush Motor for RC Airplane Helicopter Car

Note:

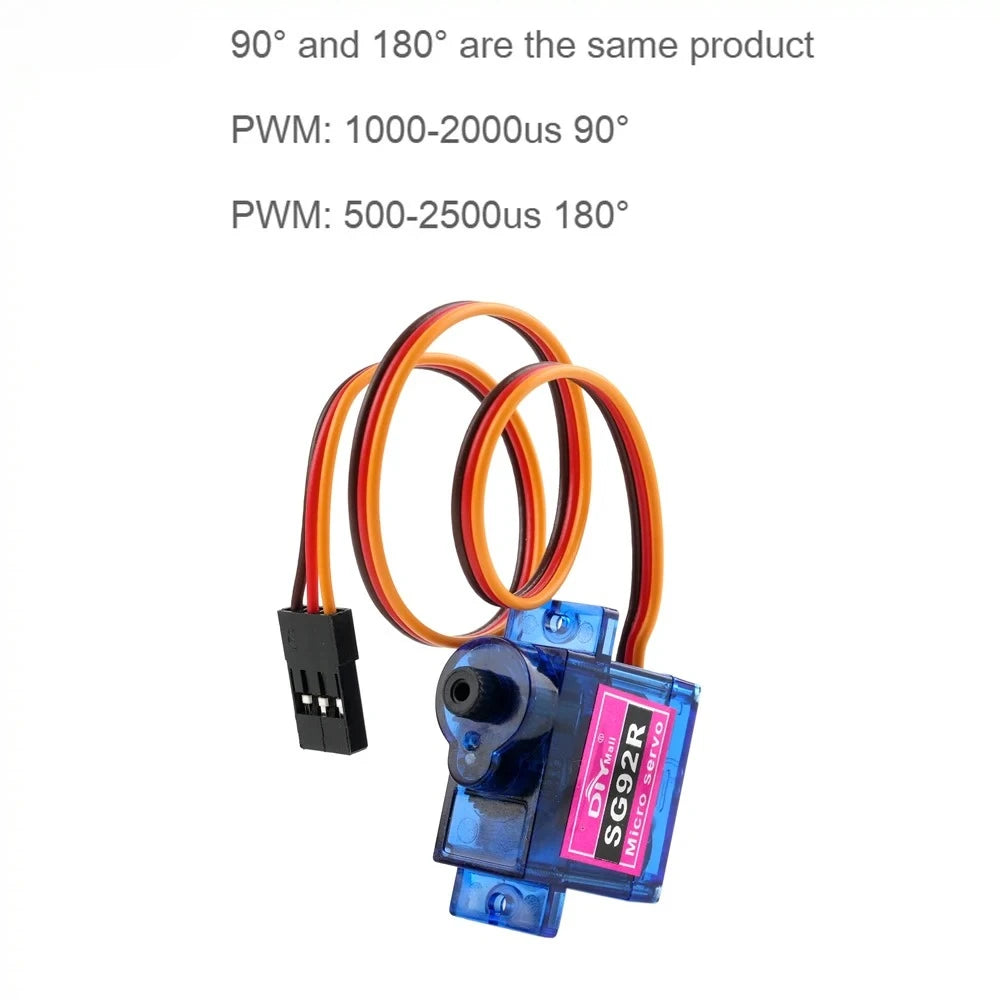

180/270 Degree Angle Controllable (PWM: 500～2500usec)

360 Degree Continuous Rotation, Angle uncontrollable

Mechanical Specification:

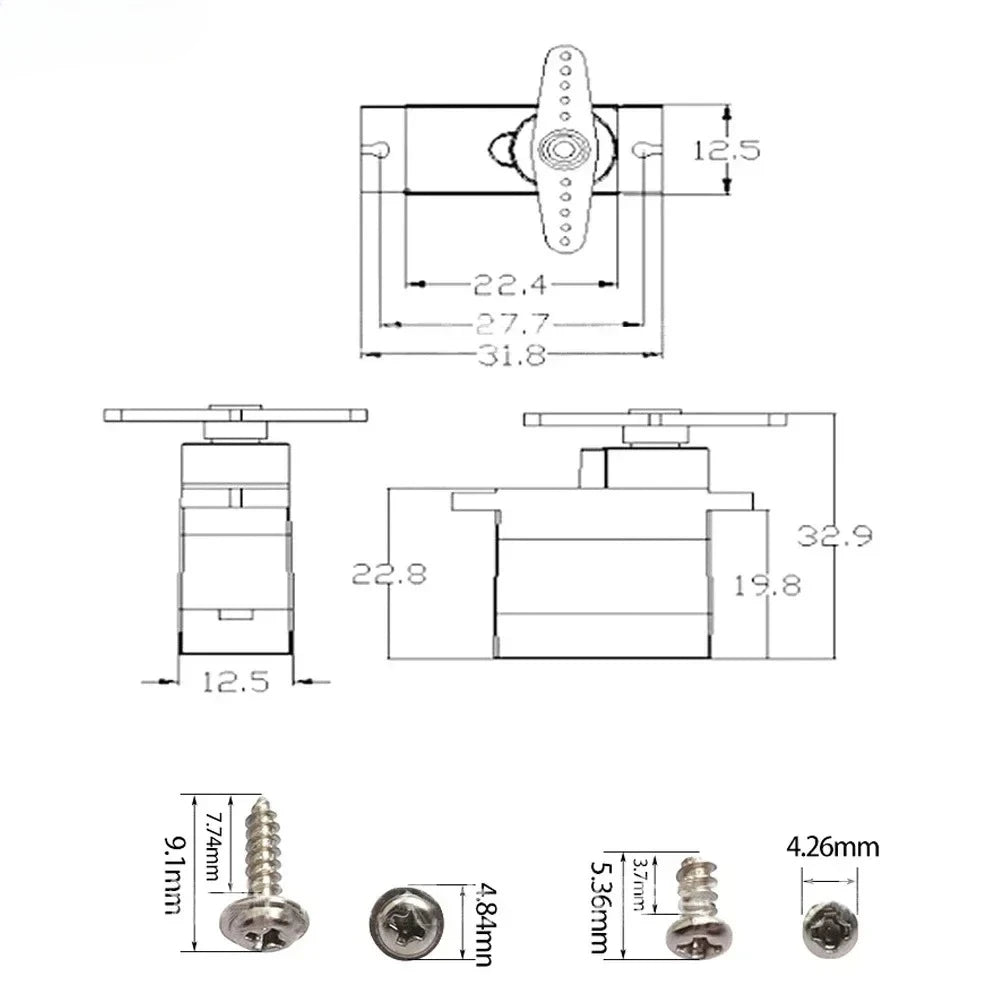

Size: 22.4*12.5*22.8mm
Weight: 10g±5%

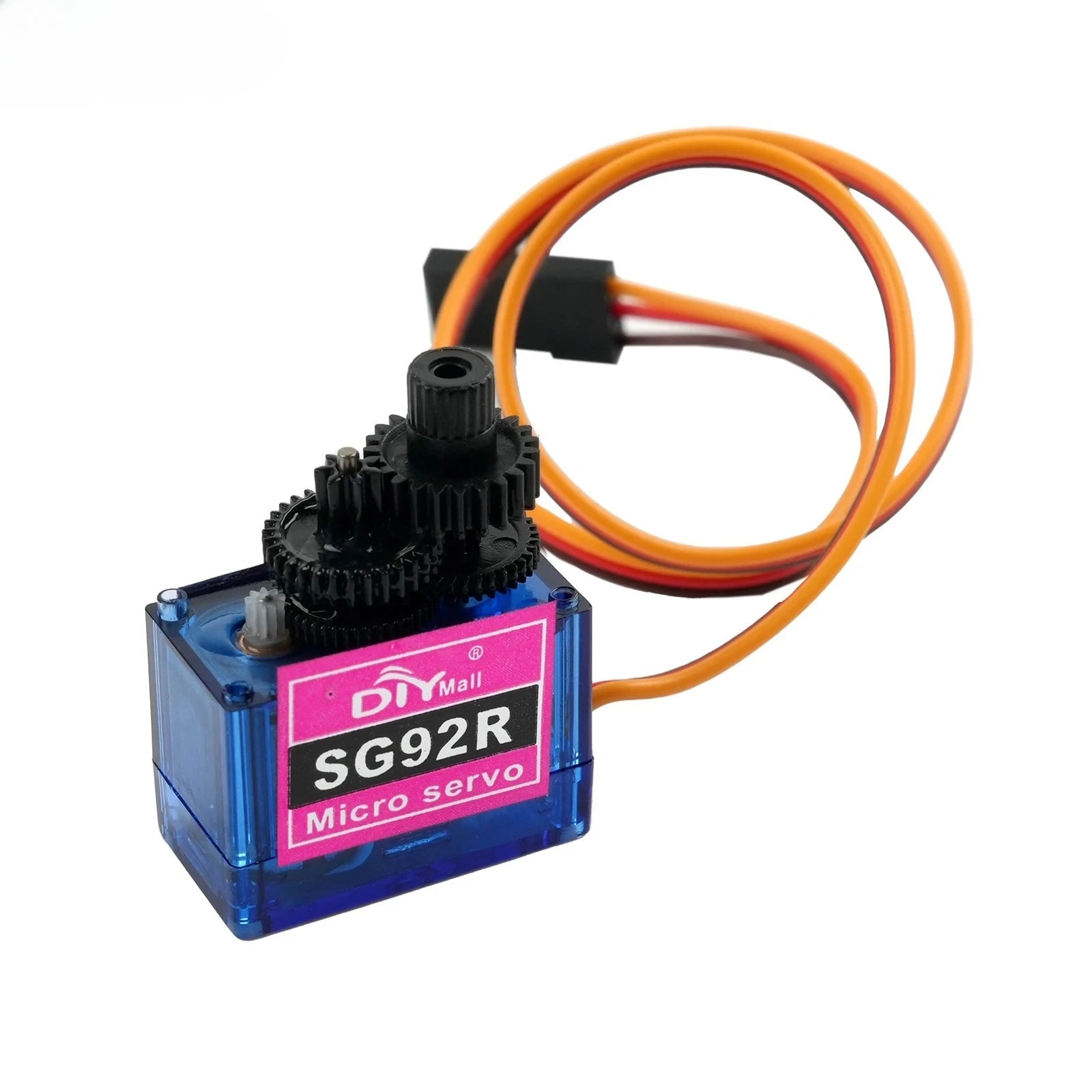

Gear type: 5 Plastic
Limit angle: 200°±5°
Bearing: NO
Horn gear spline: 20T    D:4.9mm

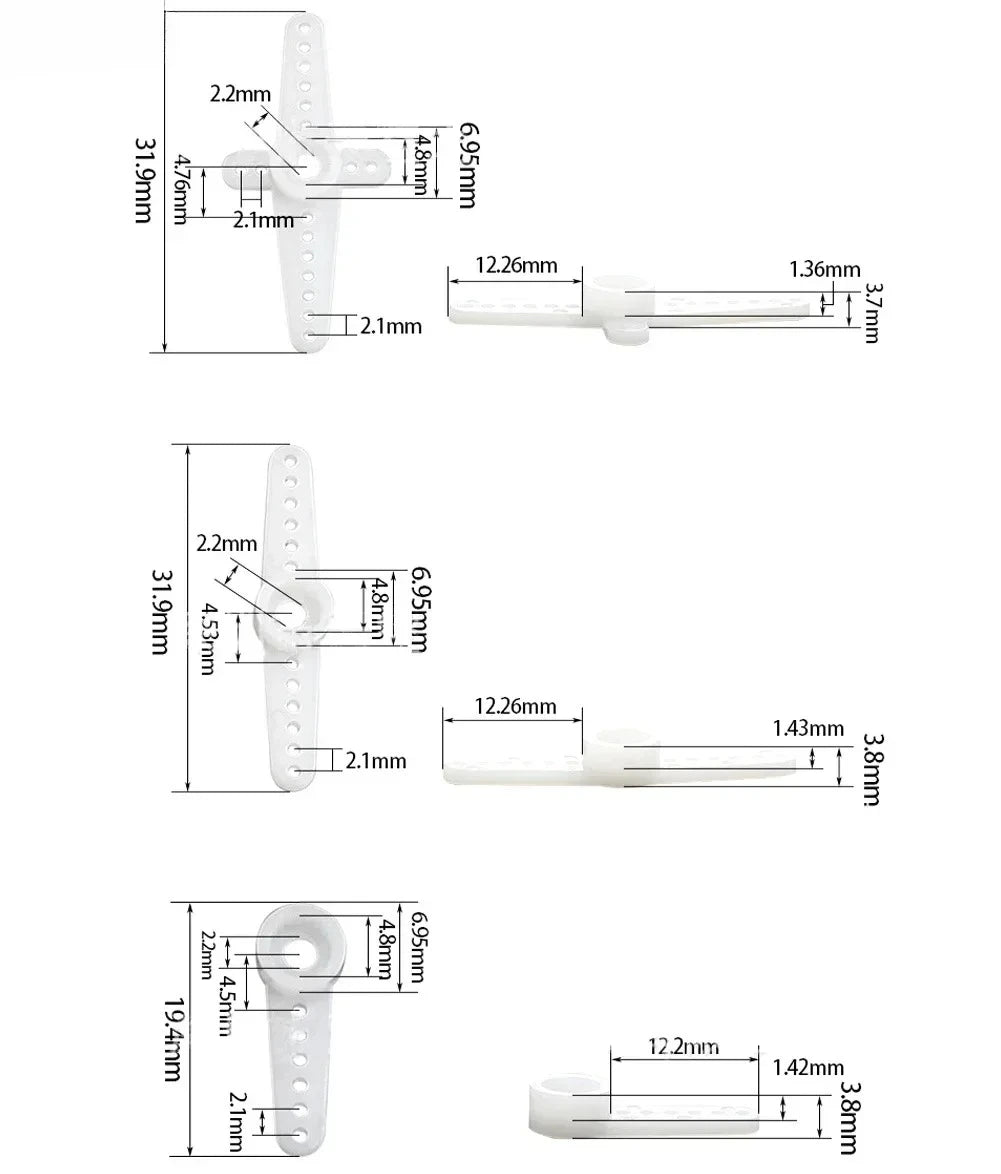

Horn type: Plastic, POM
Case: Engineering plastics(PBT)

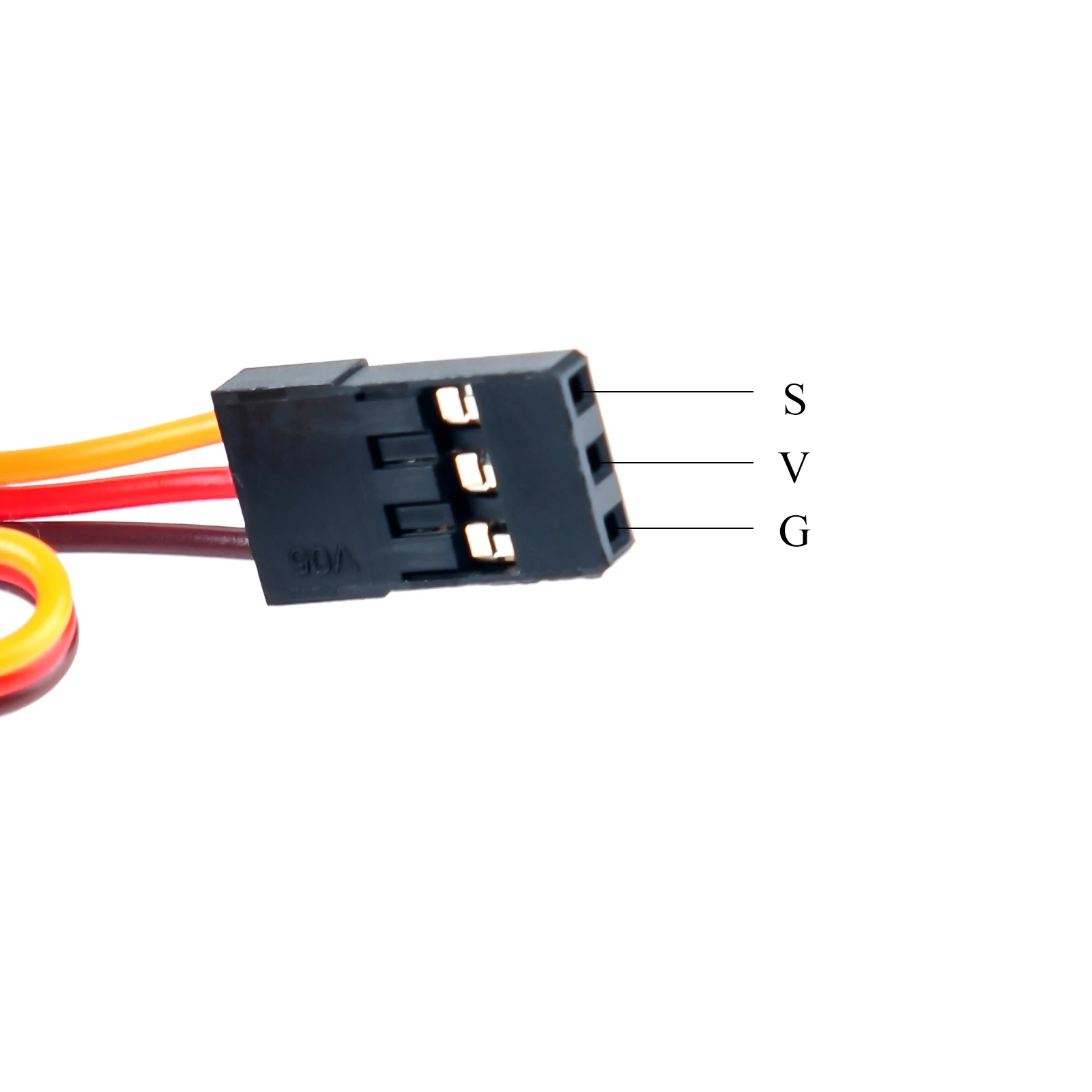

Connector wire: 250mm±5mm
Motor: Carbon brush motor
Splash water resistance: No

Electrical Specification:
Operate voltage       4.8V                 6.0V
Idle current             mA                    mA
No load speed        0.10sec/60°        0.08sec/60°
Running current      90mA                 90mA
Peak stall torque    1.3kg.cm          1.8kg.cm
Stall current          560mA±10%        750mA±10%

Control Specification:
Command signal: Pulse width modification
Amplifier type: Analog controller
Pulse width range: 500～2500usec
Neutral position: 1500usec
Running degree: 180/270/360°±3°(when 500～2500usec)
Dead band width: 8 usec
Rotating direction: Counterclockwise (when 1000～2000usec)
