Cheap Price Portable Hydraulic Rotary Geotechnical Investigation Core Drilling Rig Water Well Drilling Rigs
Note：
The listing price just deposit price and without freight fee, please kindly note that, if you want to know the specific price, please contact us or send us inquiry, then we can give you detail quotation list.
Product Description:

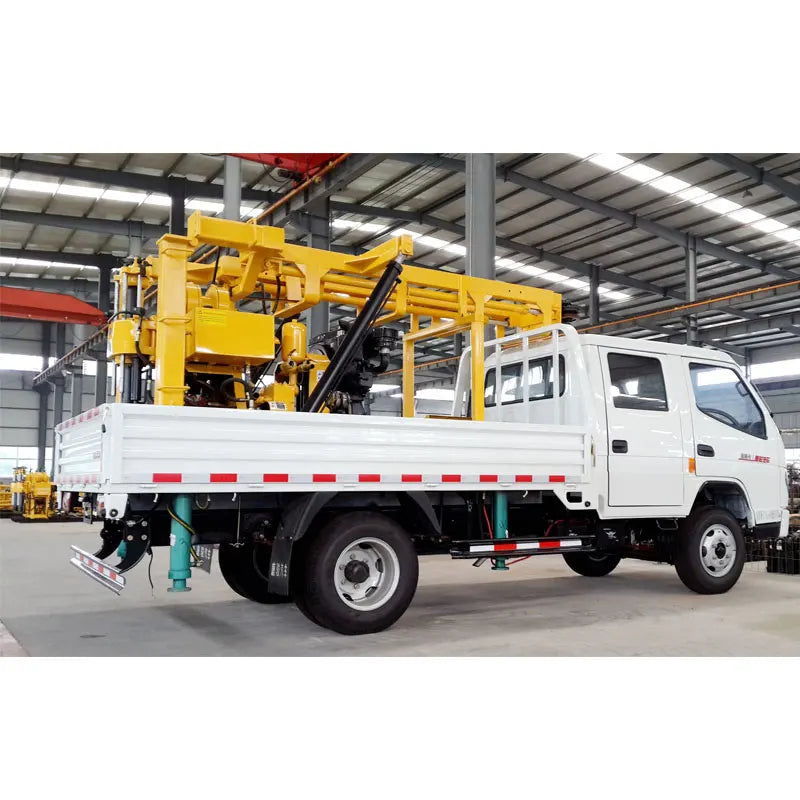

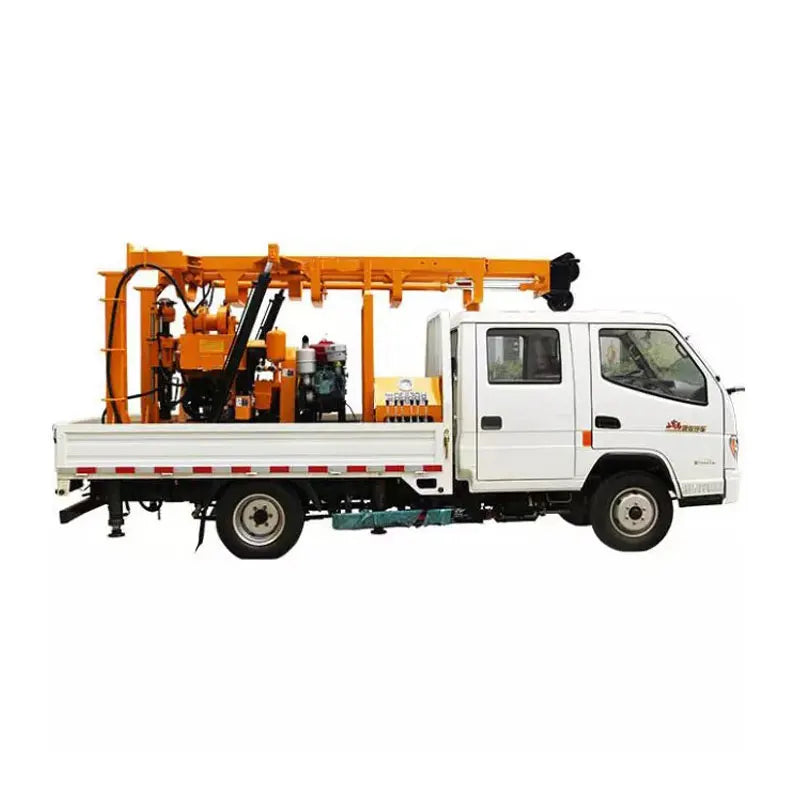

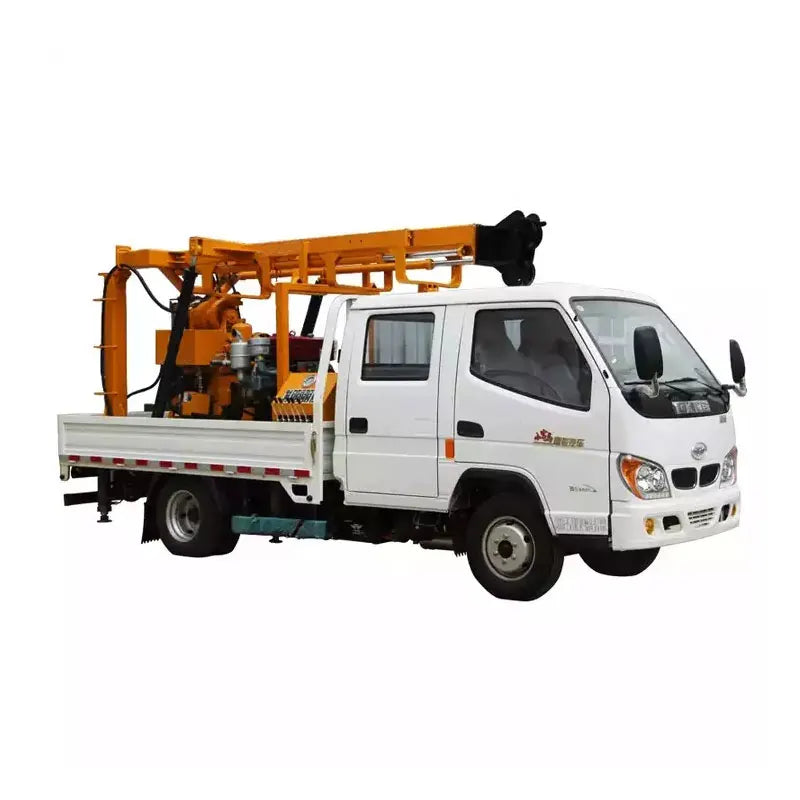

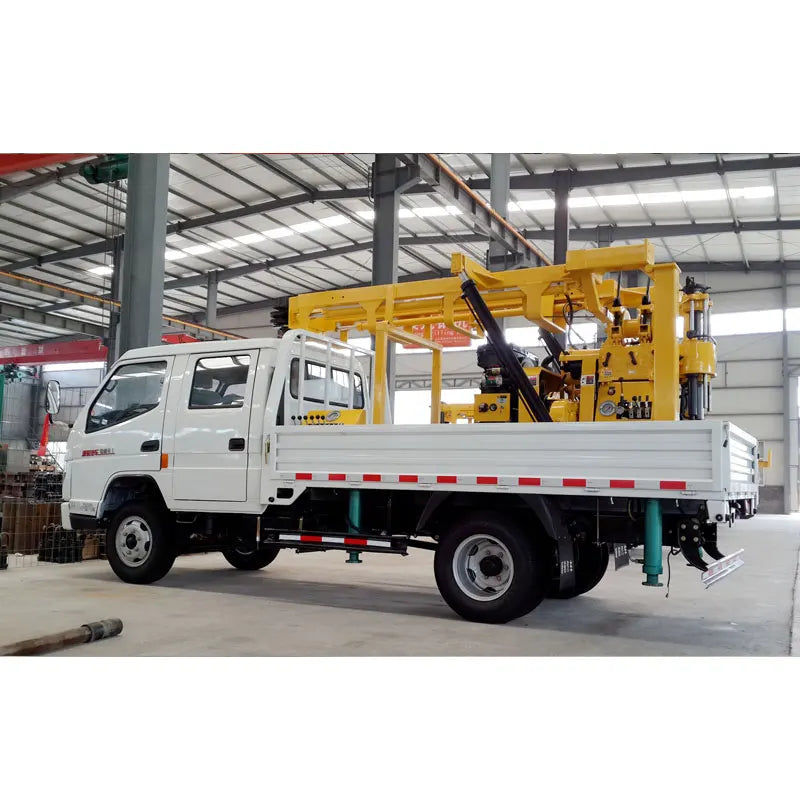

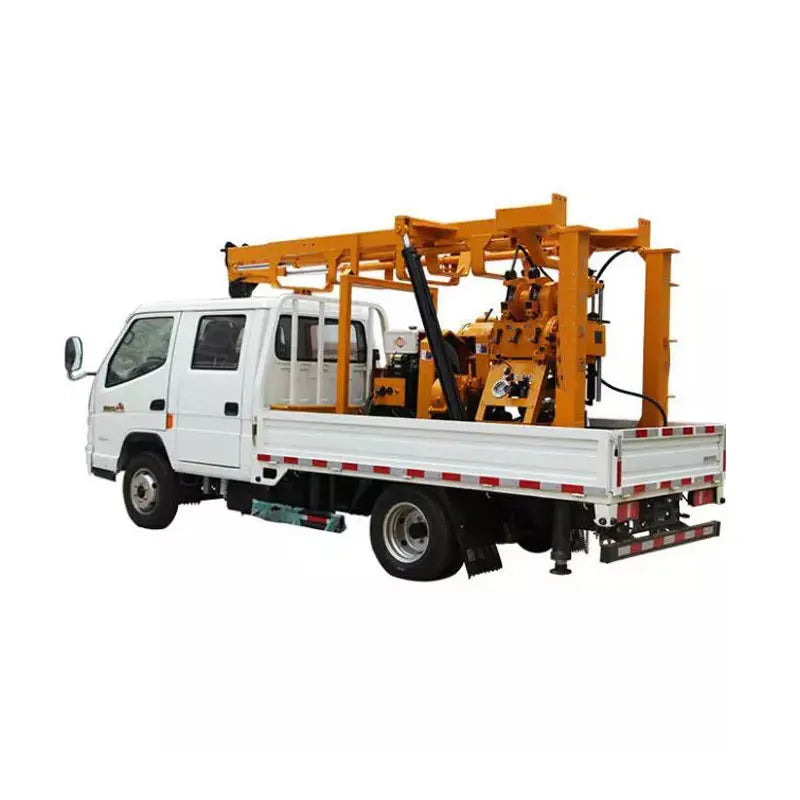

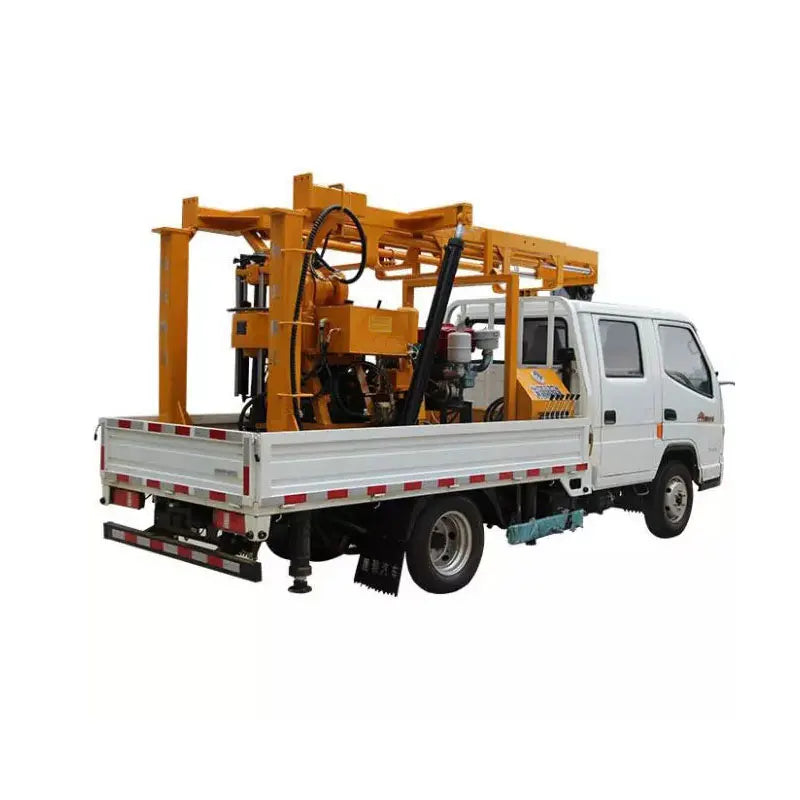

This series drilling rig is a shallow/medium depth hole spindle type core drilling rig. The machine is mainly used for diamond drilling and able to meet the needs of various drilling technology requests.
It adopts electric motor or diesel engine as power unit.
The rig owns simple structure and is easy to operate.
Product Application:
This product is widely used for general exploration of railway,road,bridge,dam and tall building base,geological core drilling,small grouting holes blasting holes,civil wells and earth central air conditioning well,etc.
Technidal Date:
Tech parameter
|
Model of drilling machine |
XYC-200GT |
Drilling machine overall dimension(mm) |
2700*900*1500 |
|
Drilling depth(m) |
250 |
|
Drill rod diameter (mm) |
42-60 |
|
Open hole dia(m) |
325 |
|
Drill angle(o) |
90-75 |
|
Matching power(kw) |
14.7 |
|
Spindle |
Speed(r/min) |
64/128/287/557 |
Stroke(mm) |
450 |
|
Winch |
Max pull force(kg) |
2500kg |
Pull speed(m/s) |
0.12-0.95 |
|
Roll capacity(m) |
35 |
|
Hosting height(mm) |
Hosting height(mm) |
2500 |
Drill mast |
Rated load(ton) |
18 |
Height(m) |
6.5 |
|
Mud pump |
Flow(L/min) |
145 |
Max pressure(MPa) |
2 |
|
Inlet hose dia(mm) |
51 |
|
Outlet hose dia(mm) |
38 |
Product Feature:
1.Feed by hydraulic cylinder,the drilling efficient is higher and it can save labor.
2.The machine is equipped with our national patent technology-taper clutch,with characteristics of strong torque transmission,easy operation and free maintenance.
3. Vertical spindle are fixed by four groups of bearings to ensure that the rotator has enough rigid for gravel layer and other complex geological conditions.
