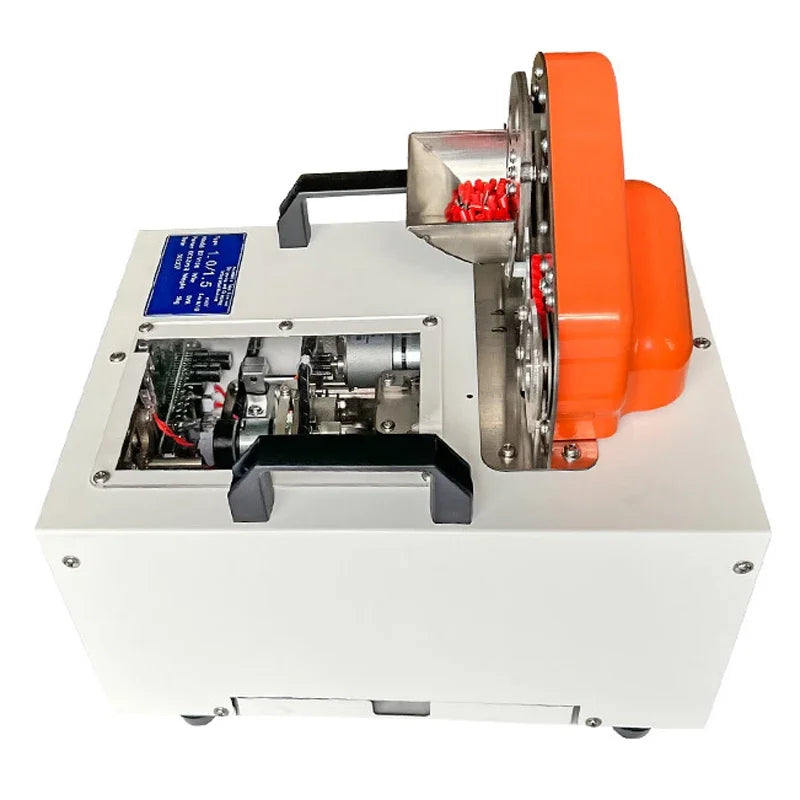

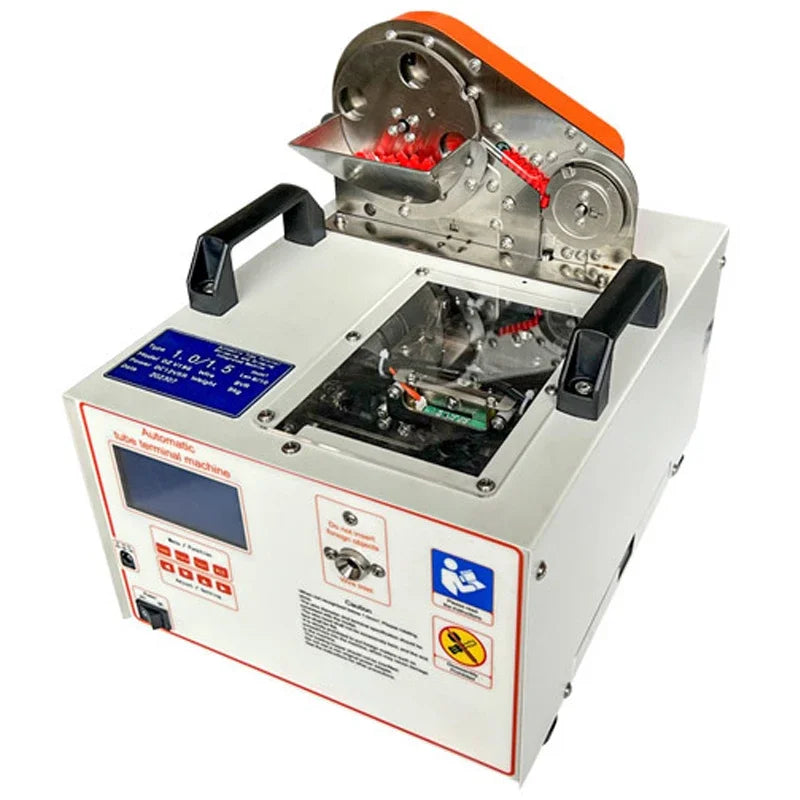

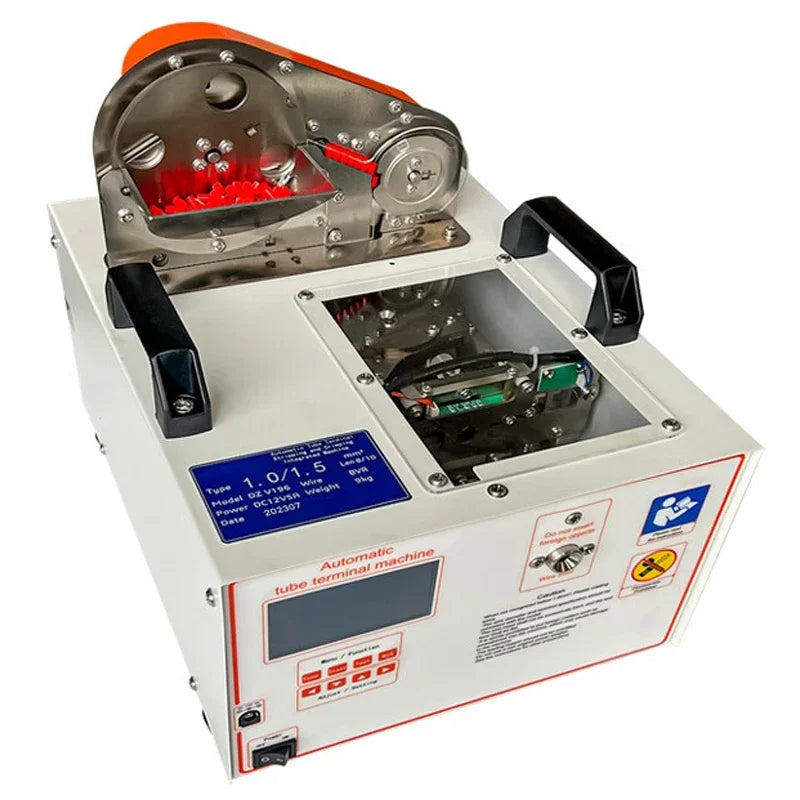

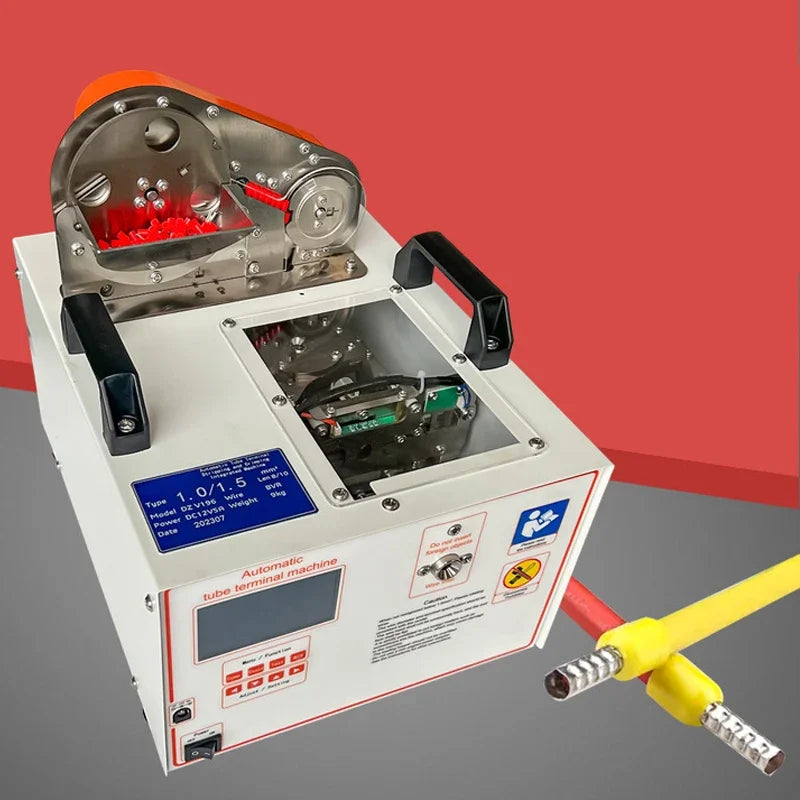

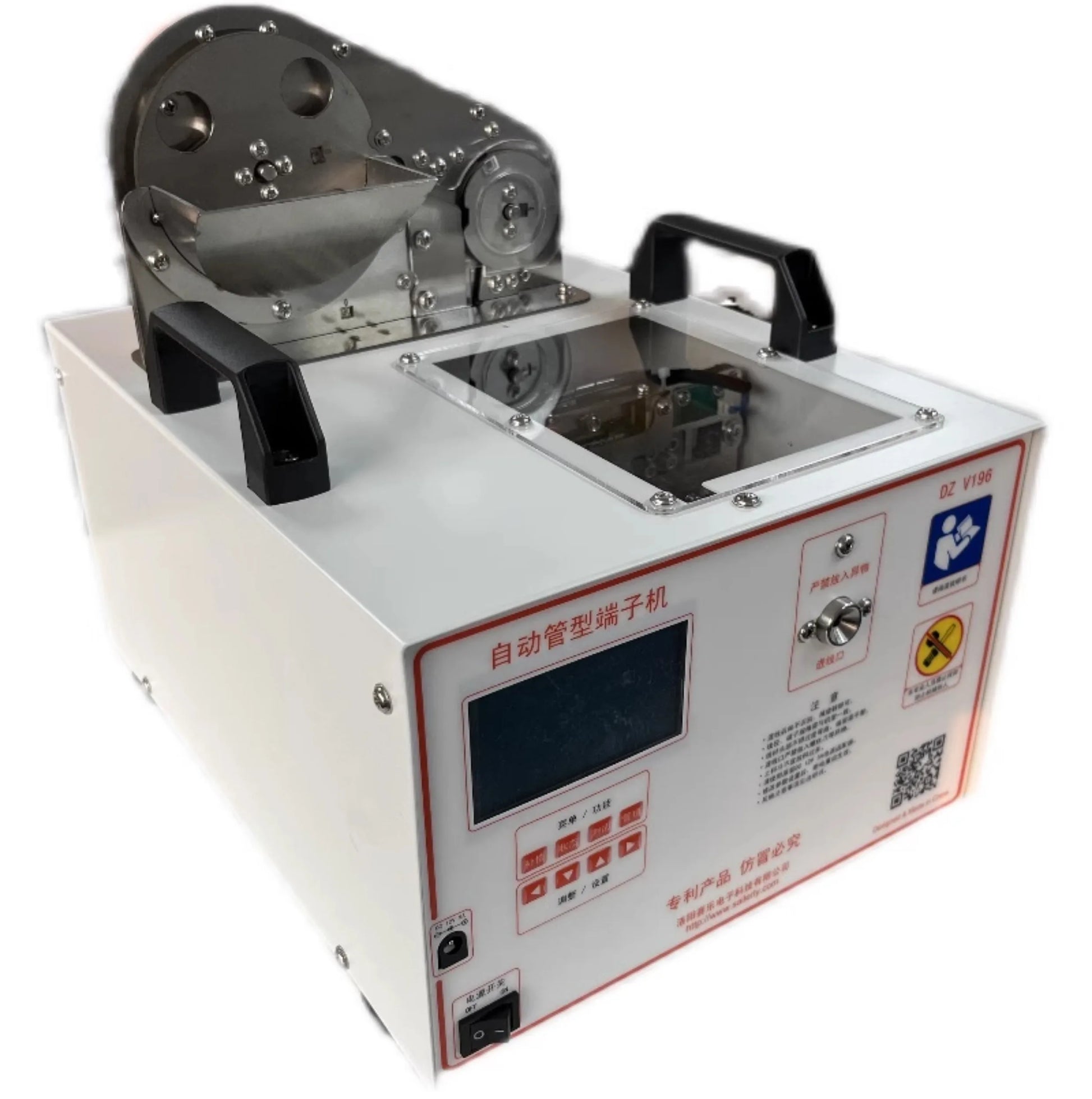

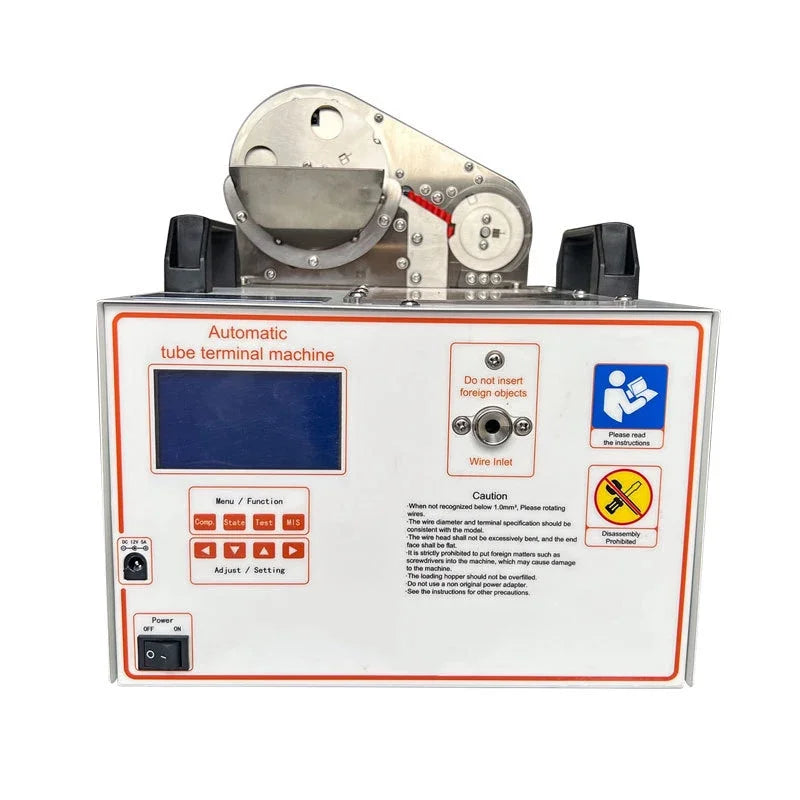

DZV196 Automatic Tube Terminal stripping and Crimping Machine for automatic stripping of BVR wire

DZV196 Automatic Tubular Terminal Stripping and Crimping Machine

This product is used for automatic stripping of BVR wire, automatic crimping of tubular terminals,

The main features are as follows

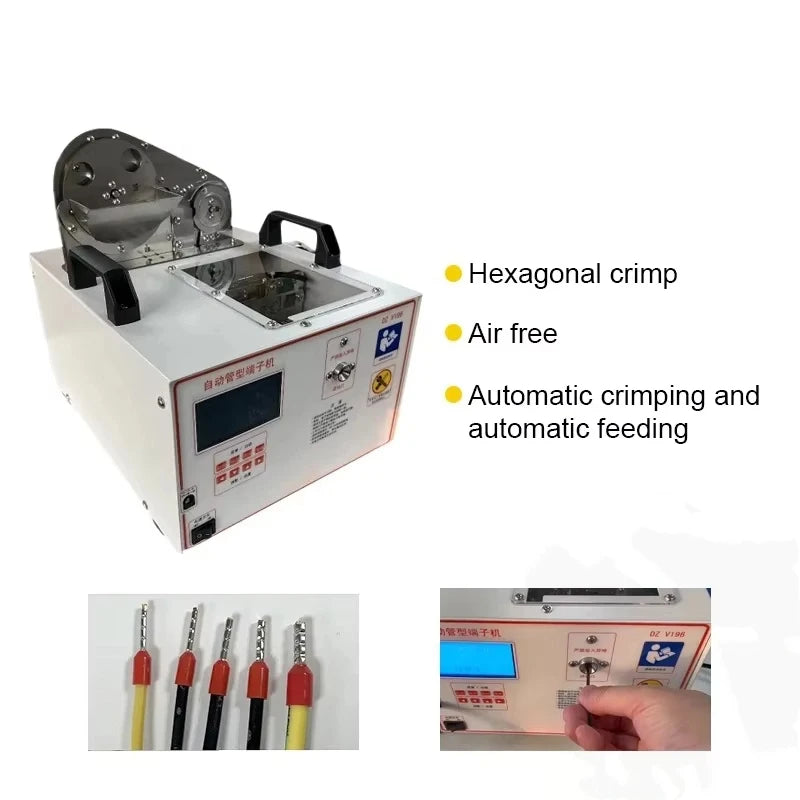

*Hexagonal jaw pressing, more reliable quality than quadrilateral jaw pressing, suitable for more types of connectors and terminal strips.
*The crimping quality is the same as that of the manual one, and the crimping quality is stable.
*Using BVR wire, standard tubular terminals, no need for custom wire terminals, no need for terminal belts.
*The terminal specifications are matched to the wire specifications, so there is no need to crimp small wires with large terminals.
*Powered DC12V5A power adapter.
*No air supply required.
*Fully automatic non-vibration feeding mechanism, the terminal can be poured in.
* Automatic identification of incoming wire, fully automatic crimping process.
*0.5 and 0.75 are one type of model. 1.0 and 1.5 are one model. 2.5 is a model. (If you need to switch settings, change the terminal model)
*Suitable for secondary wiring of complete manufacturers. For occasions with certain crimping speed requirements, two machines can be used at the same time to increase the crimping speed.

Main parameters:

Product Name: Automatic tubular terminal stripping machine
Applicable cables: BVR 0.5/0.75/1.0/1.5/2.5
Terminal specifications: VE0508/0510/07508/07510 is a model
VE1008/1010/1508/1510 is a model
VE2508/2510 is a model
You need to switch the software settings for different specifications
Power supply *AC220V to 12VDC adapter (adapter included)
Air Supply *No air supply required
Crimp shape *Hexagonal crimp
Function: automatic detection of incoming line, automatic feeding, tray jamming, full-cycle action fault detection
Storage ambient temperature: -10 to 40°C
Ambient temperature: -10 to 35°C
Ambient humidity: 30 to 80% HR (no condensation)
Machine size: length 320mm, width 240mm, total height 300mm (excluding feeder height 170mm)
Weight: 9kg
Crimping time: 4S
Preparation time: 8S

Packing List:
It includes 1 host, 1 power adapter, 1 meter of test wire, 1 package of test terminals, and 1 copy of information.

This machine is only suitable for BVR wire rod (0.5, 0.75, 1.0, 1.5 are 7-core conductors, 2.5 is 19-core conductors),
Please confirm the specifications of your cable. Available in three sizes:
0.5、0.75
1.0、1.5
2.5

Operate the newly purchased machine for a certain adaptation process, please contact customer service to send a video manual.
