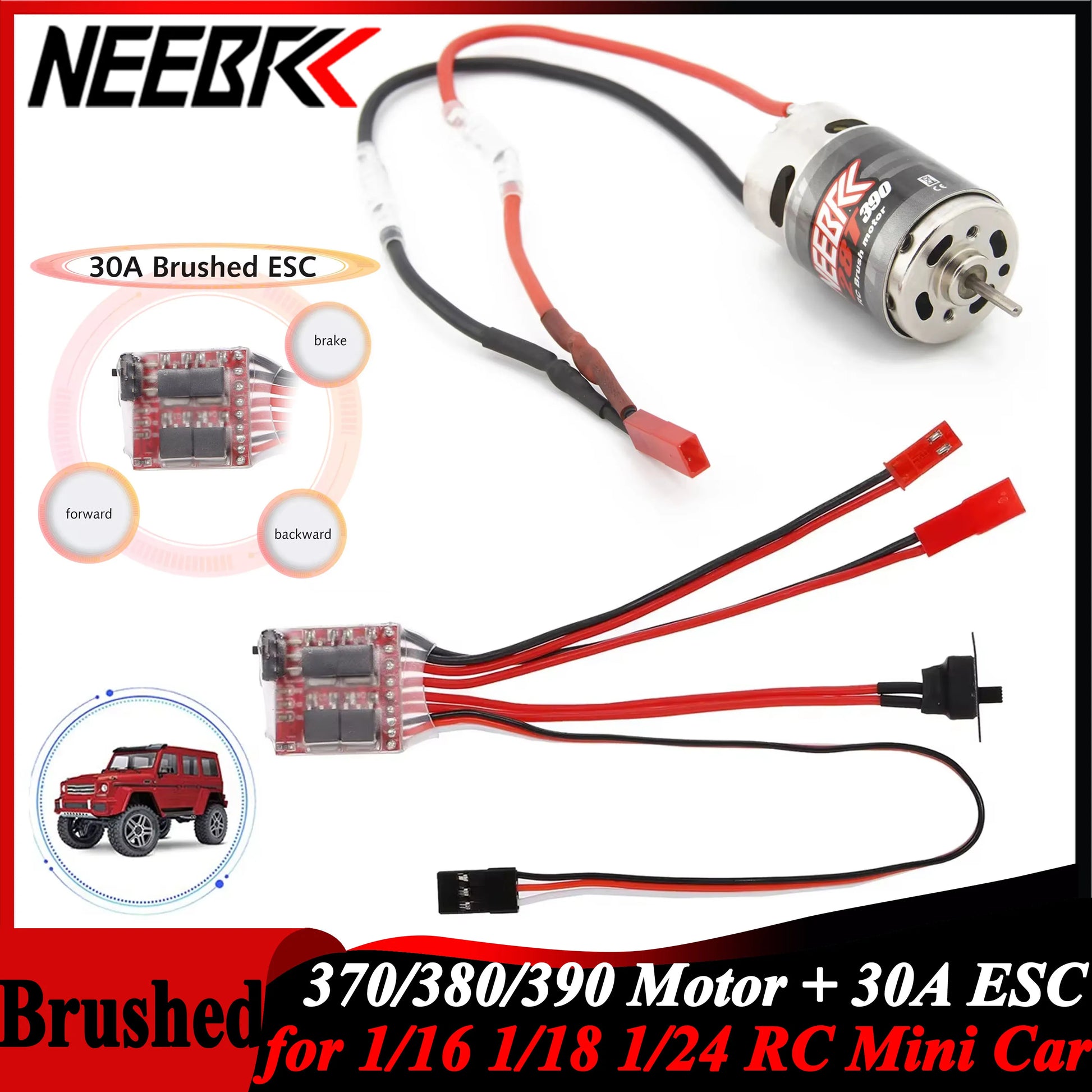

NEEBRC 370 380 390 Brushed Motor 30A ESC Brake Dual Way Adapter Connection Cable Combo for 1/16 1/18 1/24 RC Mini Car Boat Parts

NEEBRC 370 380 390 Brushed Motor 30A ESC Brake Dual Way Adapter Connection Cable Combo for 1/16 1/18 1/24 RC Mini Car Boat Parts

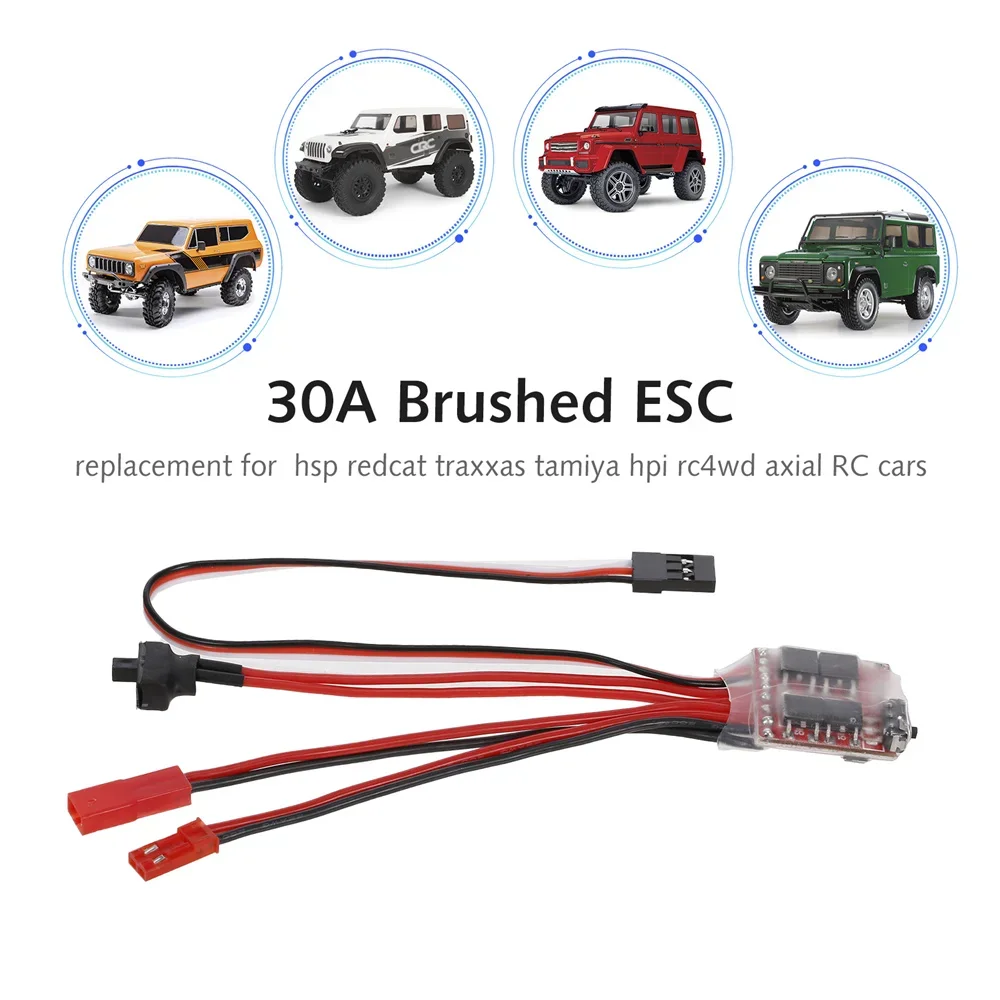

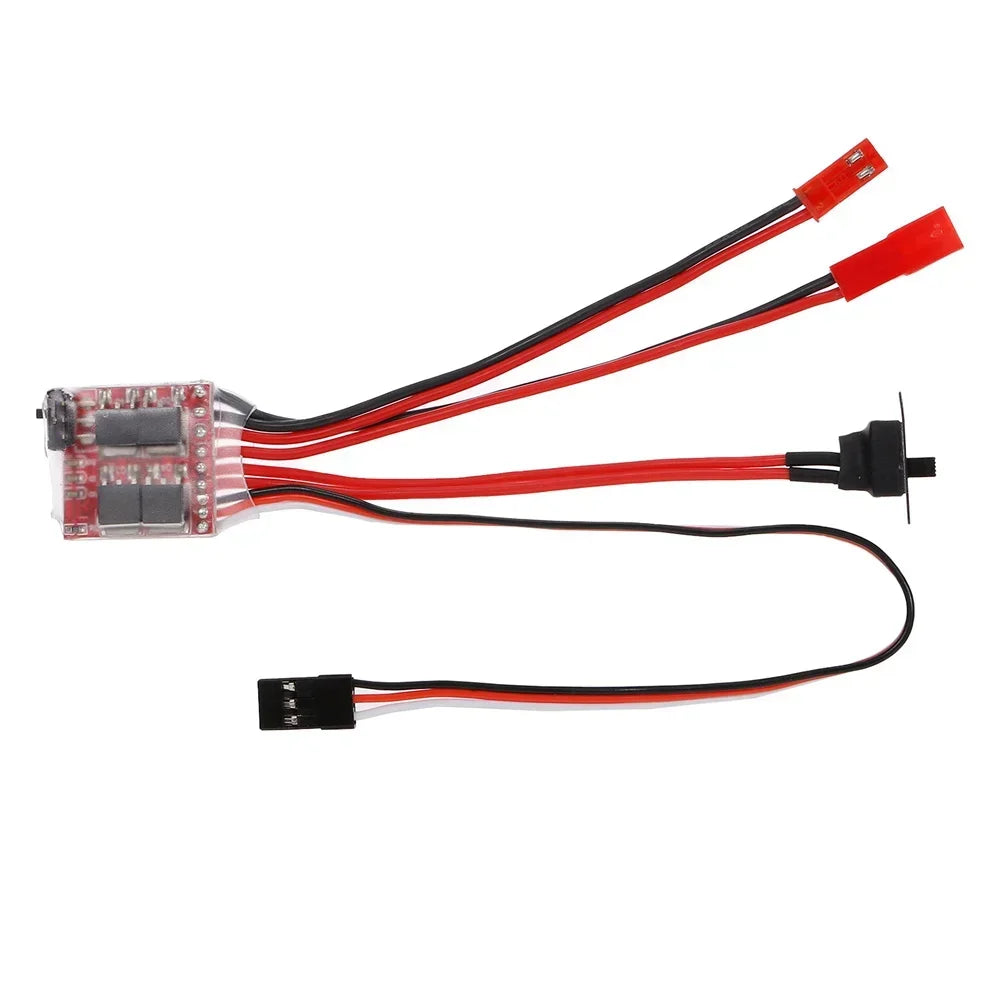

30A ESC Specification:
100% brand new with high quality
Material: Synthetic Material
Size: Approx.25 x 23 x 5mm/0.98 x 0.91 x 0.2"
Weight: Aprox.13g (with line)
Quantity: 1Pcs
Current Parameters:
Forward 30A
Instantaneous peak 40A
Back 20A
Brake 40A
UBEC Output: Voltage 5.7V, Current 1A (Supply receiver, servo power)
Voltage support: 4 ~ 8v can be directly on the 2s lithium (7.4V)

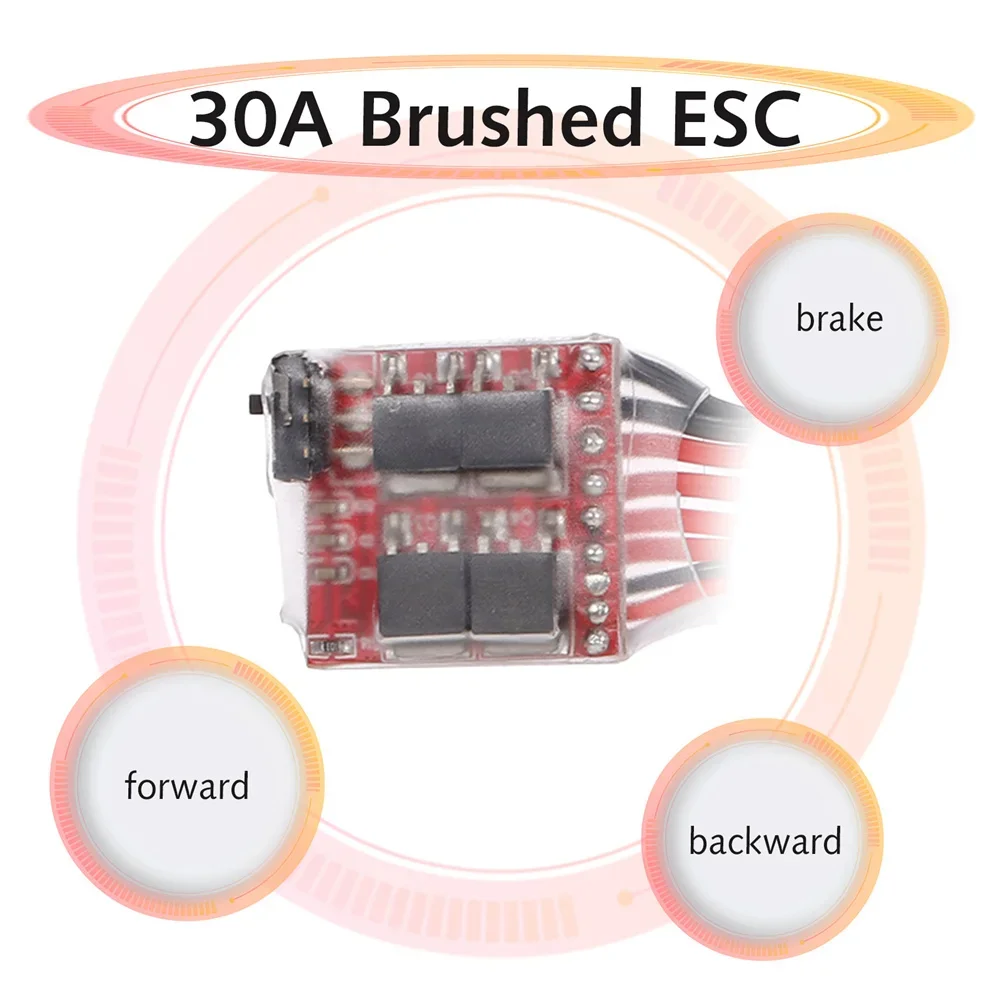

Function: forward, reverse, brake
Easy to install, durable.
High-quality metal casting.
Lightweight, small size, easy to carry.
Tips:
JST header by default, with a switch.

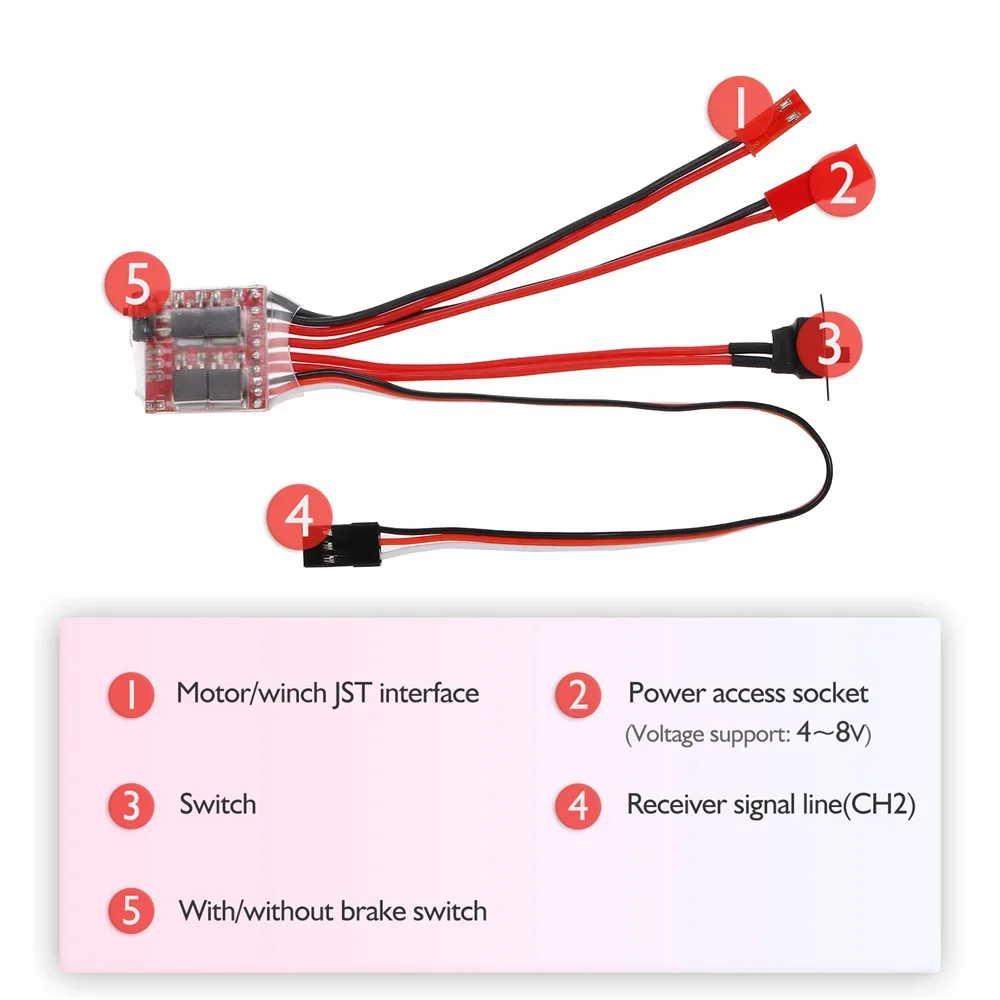

Wiring:
Battery (must dividends positive black and negative)
Motor (regardless of positive and negative)
Black red and white third-line -> receiver CH2 (usually black by the outside, white by stickers)
Adjustment:
ESC is set in the middle of the range, the new control generally need to fine tune the throttle.
The ESC does not light, is the median, throttle trim is controlled TH TRIM.

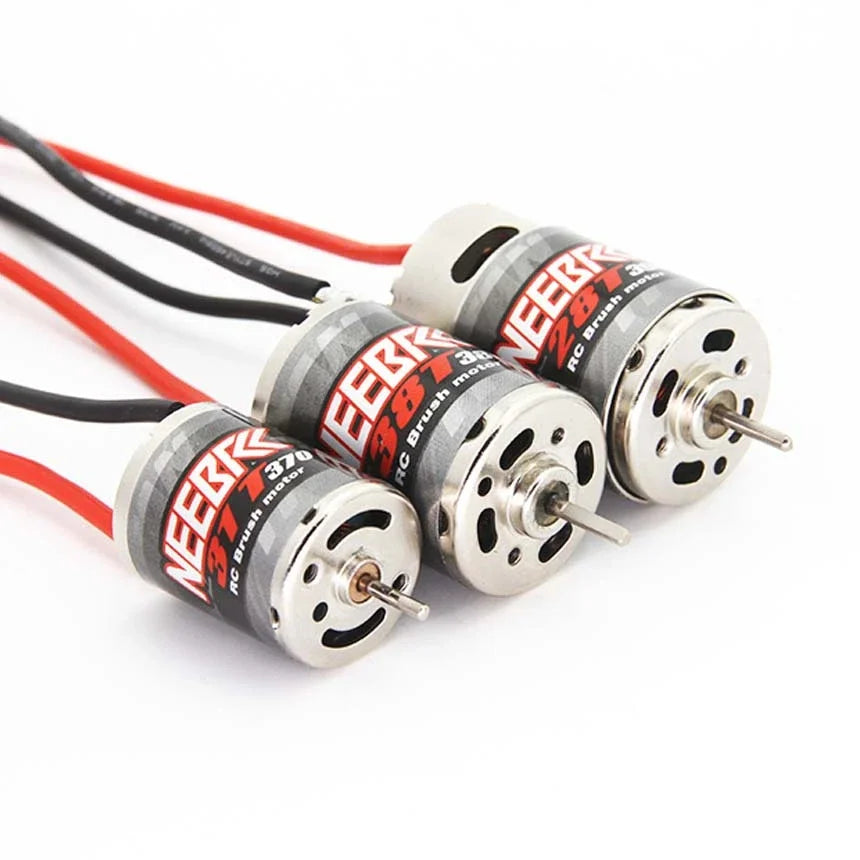

Brushed Motor Specification:
Model:370-31T
Driving Voltage:7.2V
Direction of Rotation:CCW
Operating Temperature Range:2℃-30℃
No Load Speed:30000±10% r/min
No Load Current:≦0.9A
End play of Shaft:0.05-0.5mm

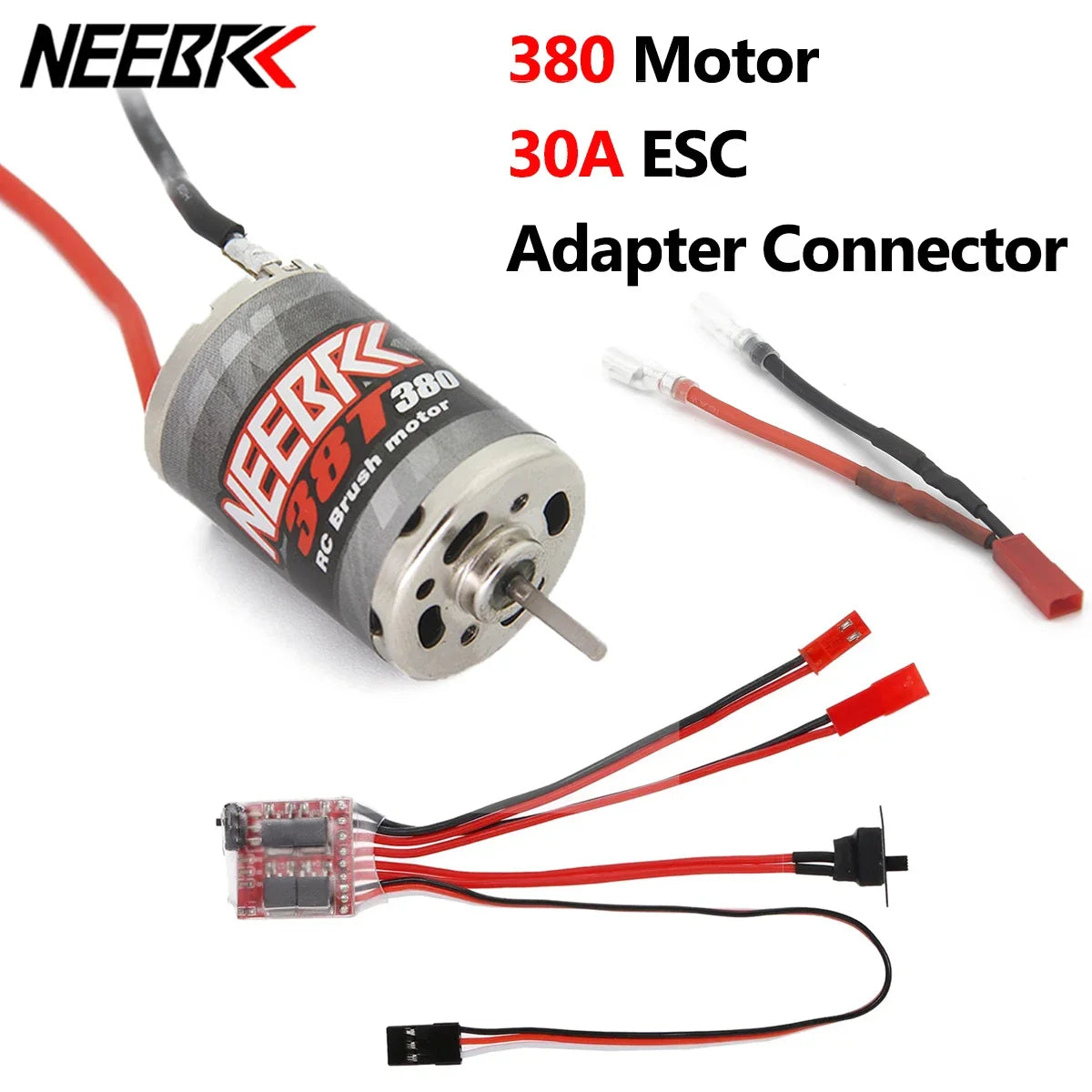

Model:380-38T
Driving Voltage:7.2V
Direction of Rotation:CCW
No Load Speed:19000±10% r/min
No Load Current:≦0.86A
End play of Shaft:0.05-0.5mm

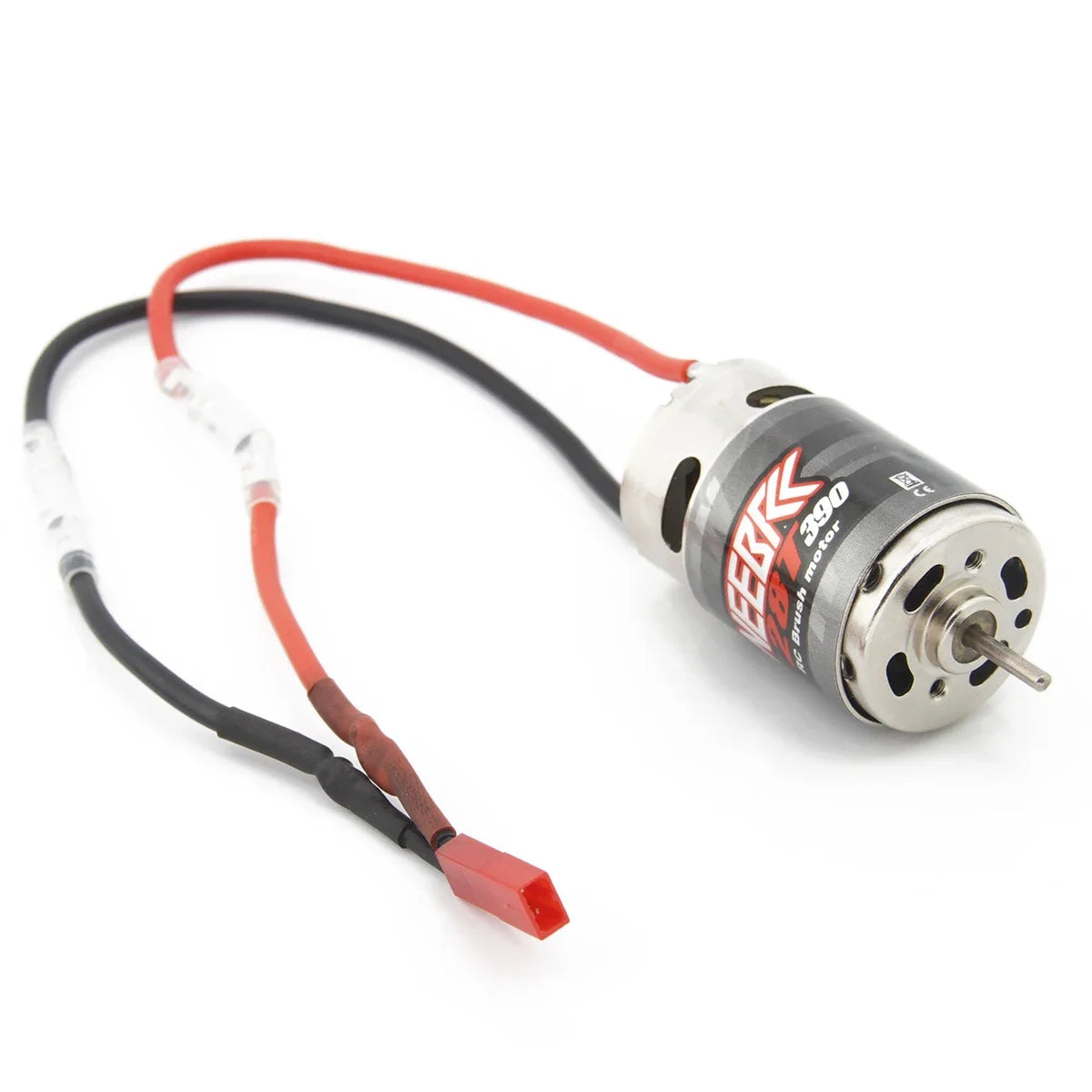

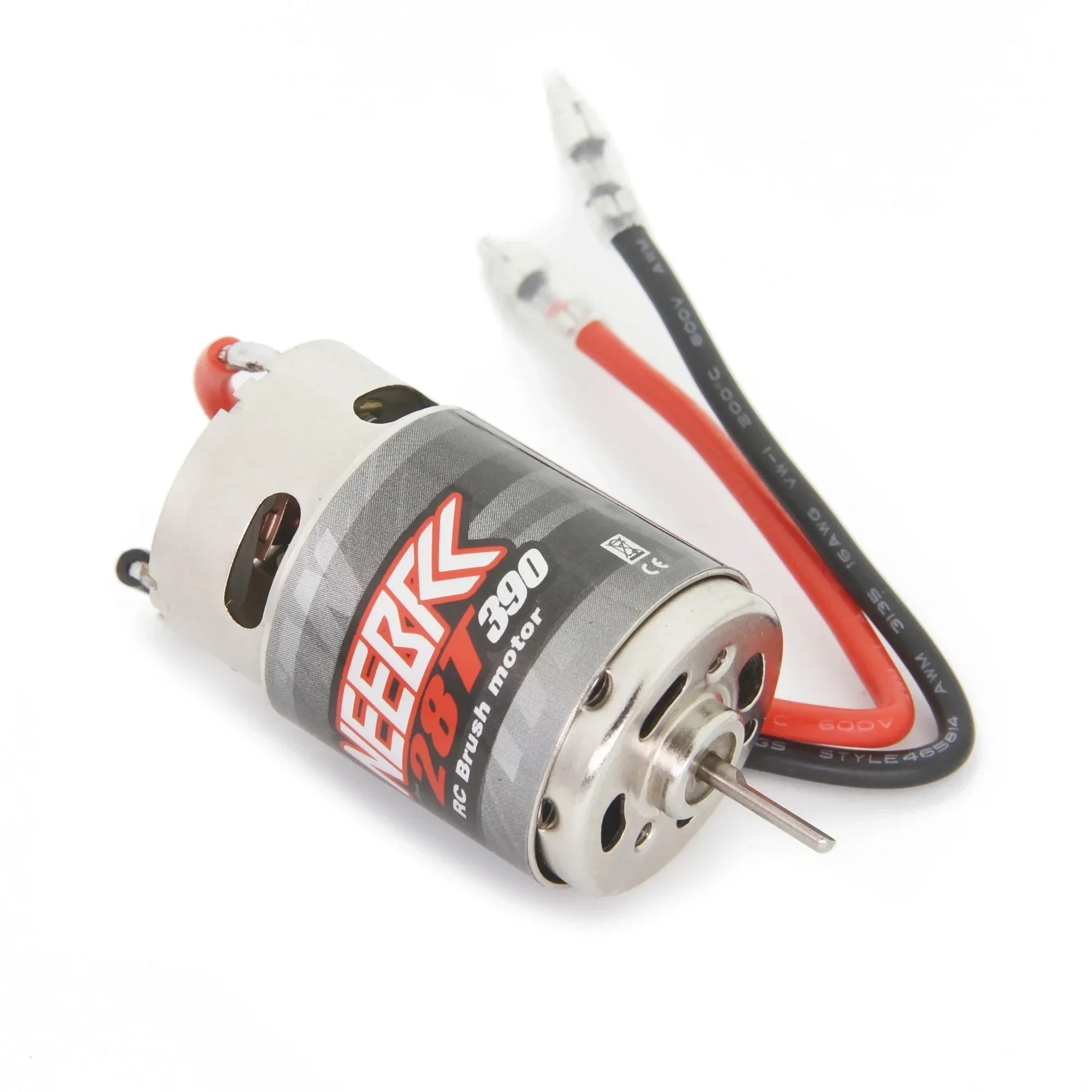

Model:390-28T
Driving Voltage:7.2V
Direction of Rotation:CCW
No Load Speed:20500±10% r/min
No Load Current:≦1.1A
End play of Shaft:0.05-0.5mm

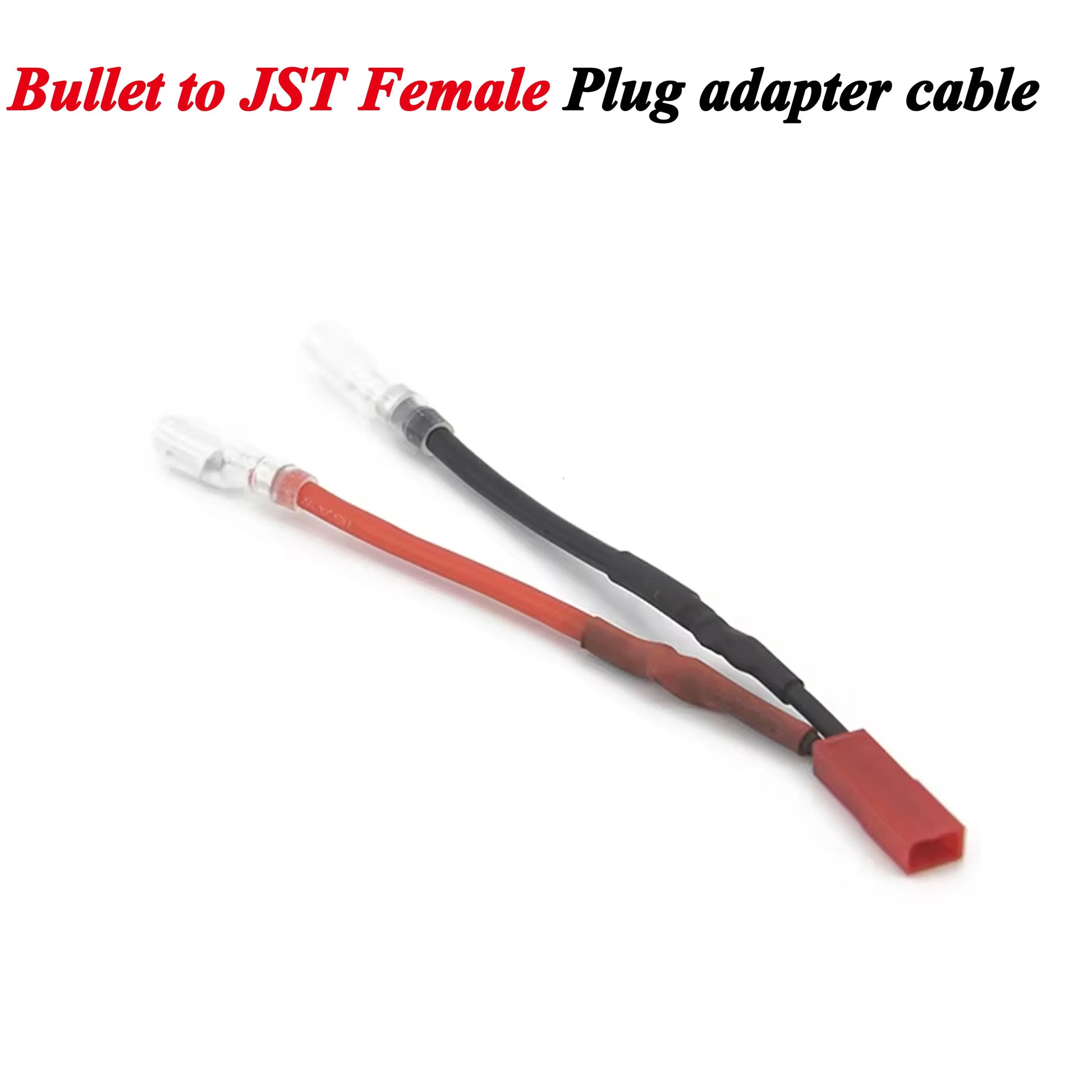

Adapter cable specifications:
Brand:NEEBRC
Application:Mini RC Cars,1/16 1/18 1/24
Wire Length:12cm
Low resistance, high heat dissipation, stable transmission.

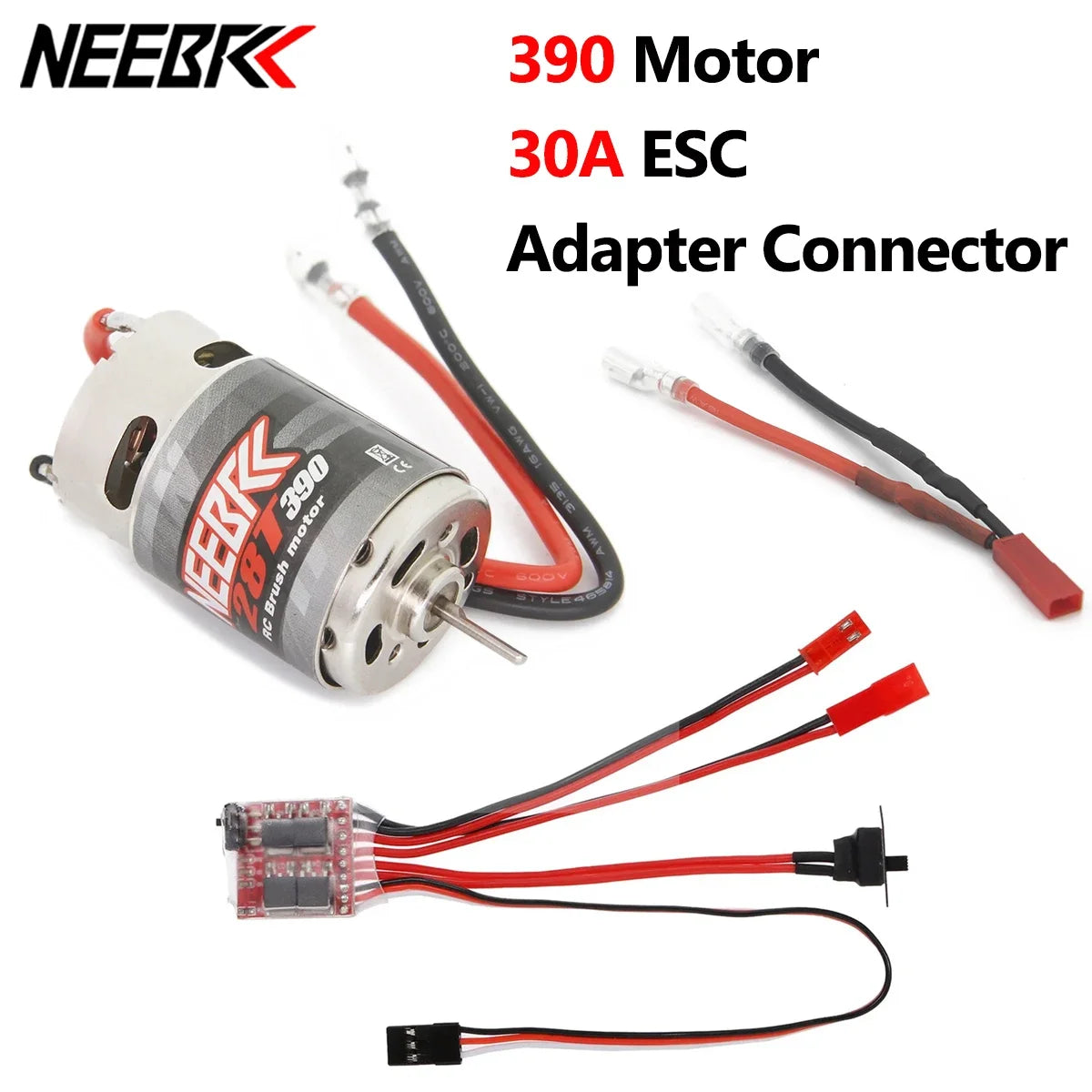

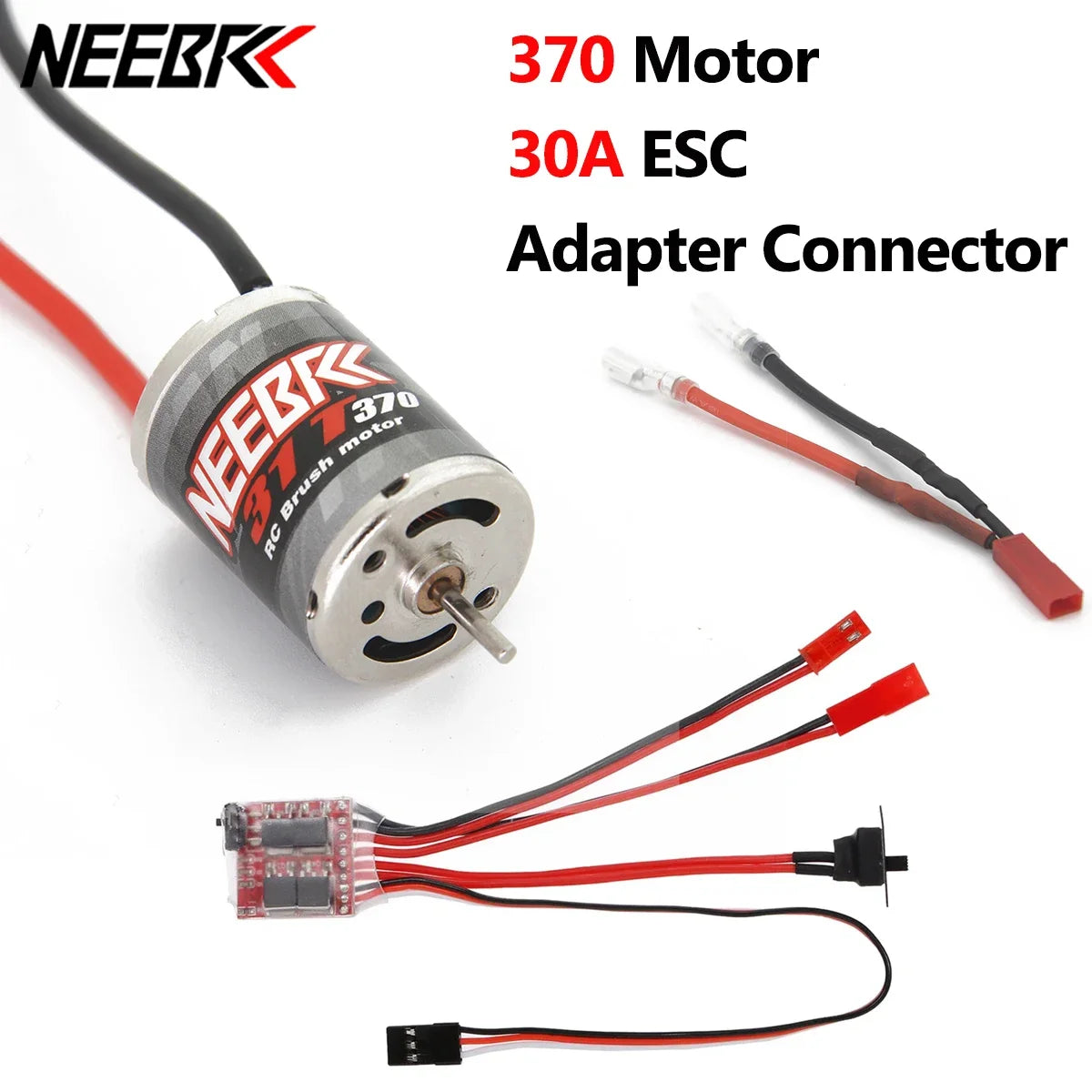

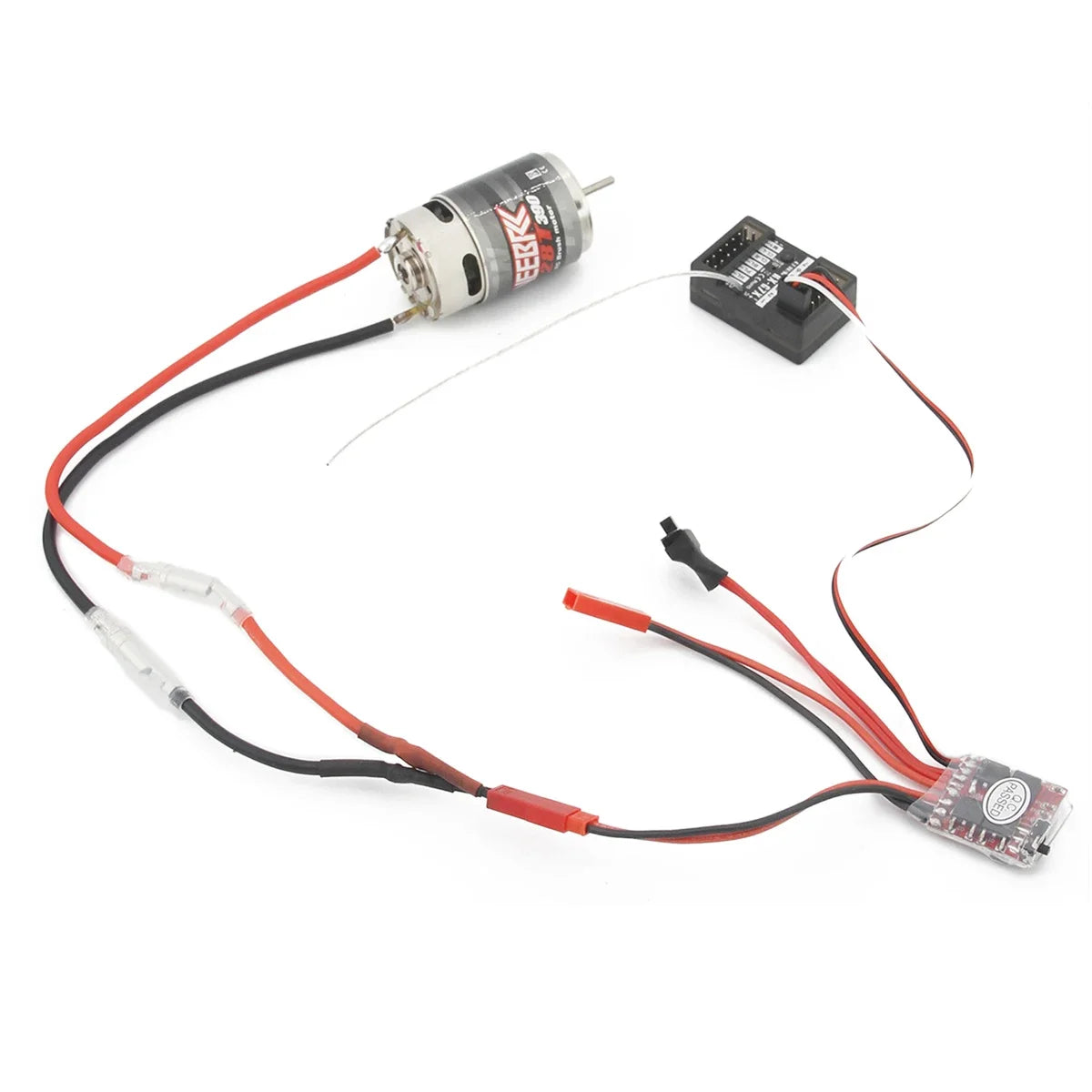

Package included:
1*370/380/390 Brushed Motor
1*30A Brushed ESC
1*Adapter cable
