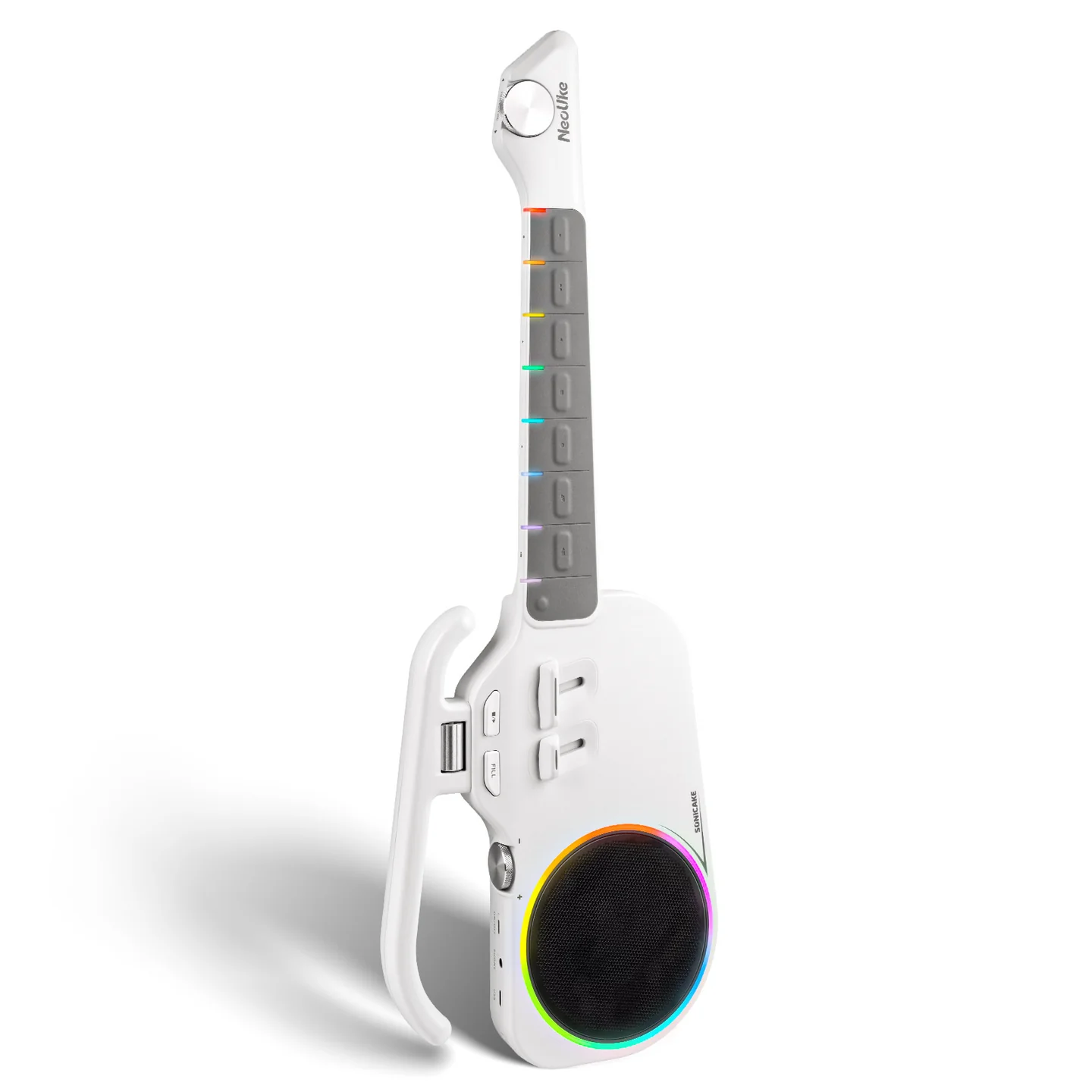

NeoUke Smart Guitar Smart Ukulele

Product Description

NeoUke is a portable, simple, stringless guitar with a built-in speaker. It comes with common guitar rhythm patterns that can be triggered easily, allowing users to perform guitar accompaniments that would otherwise require years of practice. The player doesn't need to tackle complex chord fingerings to experience the joy of guitar. Additionally, it features a drum machine acting like auto-accompaniment functions, and this makes the music richer. Connecting to the app enriches product features, enabling “flowing the light performance.” NeoUke is a music enlightenment product, ideal for beginners who want to learn about guitars, amateur singing enthusiasts, and children.

Neck

“Fretboard”
Not real fretboard but pads and LEDs.

21+1 Pads
The bottom pad is the TAP TEMPO pad. You can tap the pad to set the tempo.

The upper pads
Each represents a chord. For example, pressing the top middle one means a C chord.

TRANSPOSE

Knob used to transpose (global). -6 to +6 semitones that can play any key.

TRANSPOSE

Knob used to transpose (global). -6 to +6 semitones that can play any key.

Play/Stop & Fill In Button

Auto-accompany-like function.
Lite version of arranger keyboard (drums + bass only).
Press the Play/Stop button to start the accompaniment: a 2-beat intro will be played, followed by the accompaniment loop.
When the accompaniment starts, we can press a pad on the fretboard, and then the bass will play the root of that chord.
Press the Fill-in button to insert a short 1-bar fill-in variation to the accompaniment.
Press the Play/Stop button to stop the accompaniment. There is a short ending bar before the accompaniment really stops.

Wheel

Pressable wheel
Turn the wheel to -/+ pick A or B pattern; press the wheel to change pick A or B voice (the product will remember the last-time-operated pick as the current setting pick)
Press and hold the wheel to enter the accompaniment selection menu, then turn the wheel to change an accompaniment. The menu will automatically close, or you can press the wheel to quit the menu.

Speaker and the Ring

Built-in speaker
The ring is for cool. Most of the time it turns, flicks, changes color, etc. to the music. It indicates the volume when setting.

Volume Knob, On/OFF Switch and Connecters

Turn the volume knob to change the overall volume.
Insert the phones to mute the built-in speaker.
The Type-C socket can be used to charge the product. Or you can broadcast OTC function.

Other Features

BLE and audio dual module.

1. BLE connections
When BLE is connected, you can use the app to control all functions. The app also includes songs with lyrics and chords, and it can guide the chords on the fretboard.

2. Bluetooth audio connection
When Bluetooth audio is connected, your audio can be output through the product’s speakers.

• Total Length: 619 mm (24.37 in)
• Maximum Width: 207 mm (8.15 in)

Package Contents:

1 × Brand packaging box

1 × Ukulele

1 × Type-C charging cable

1 × User manual

1 × Strap

1 × 6.35mm adapter
