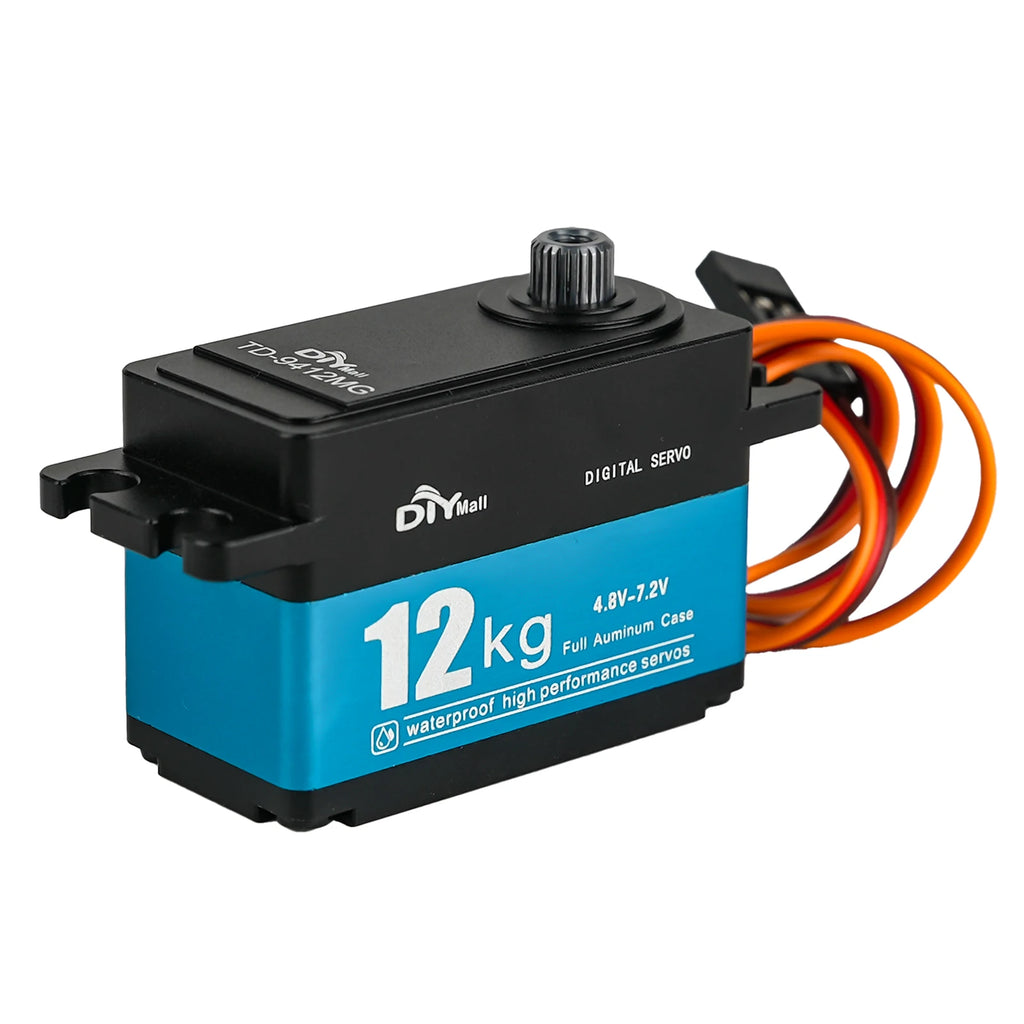

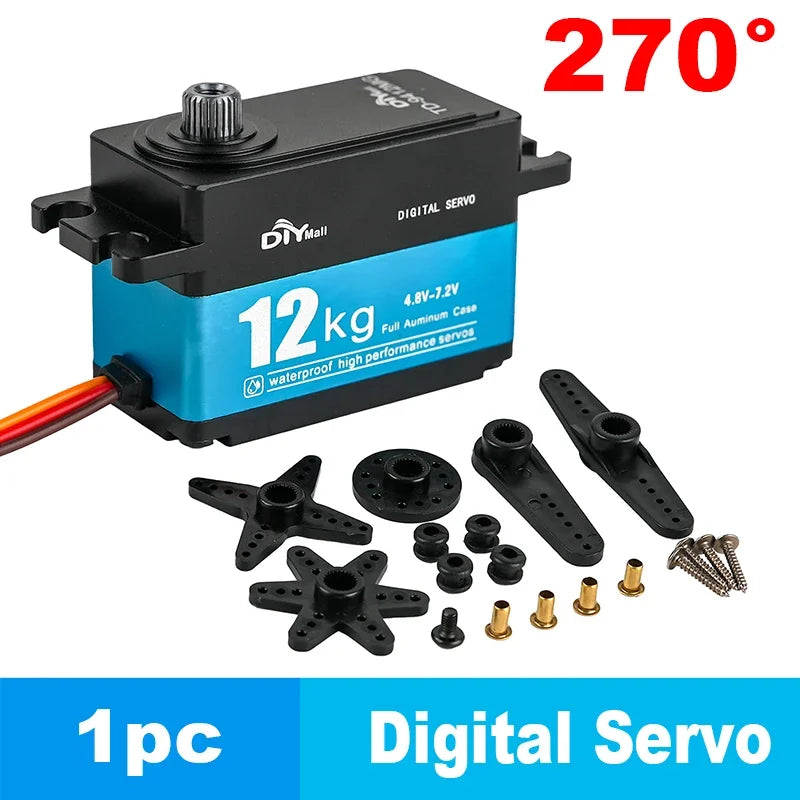

TD-9412MG Digital Servo 12KG High Torque Full Metal Carbon Brush Motor 180/270/360 Degree Short Model for 1:10 1:8 RC Car Robot

TD-9412MG Digital Servo 12KG High Torque Full Metal Carbon Brush Motor 180/270/360 Degree Short Model for 1:10 1:8 RC Car Robot

Apply Environmental Condition
Storage Temperature Range: -30°C to 80°C
Operating Temperature Range: -25°C to 70°C

Standard Test Environment
Temperature Range: -25°C to 70°C
Humidity Range: 65% ±10%

Mechanical Specification

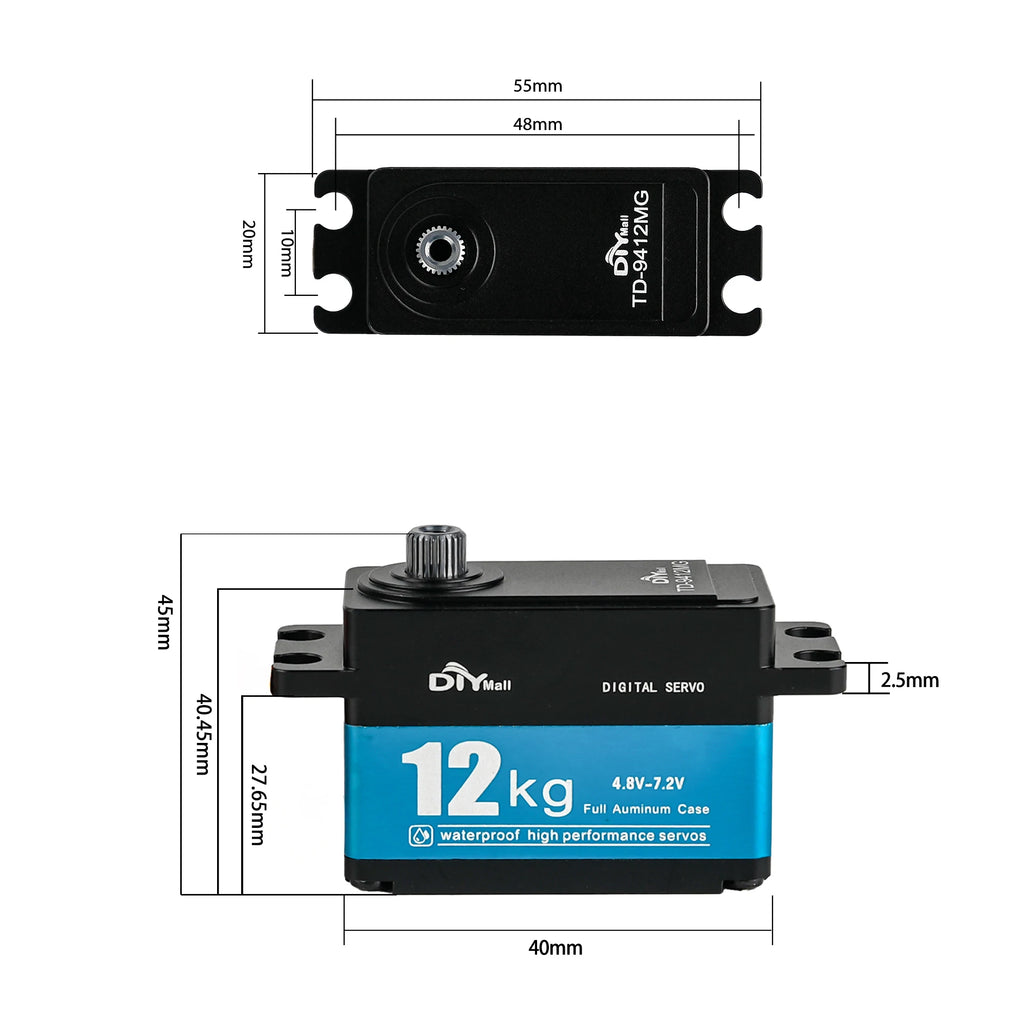

Size: 40.820.228.7mm
Weight: 60g ±5%
Gear type: "6 Metal"

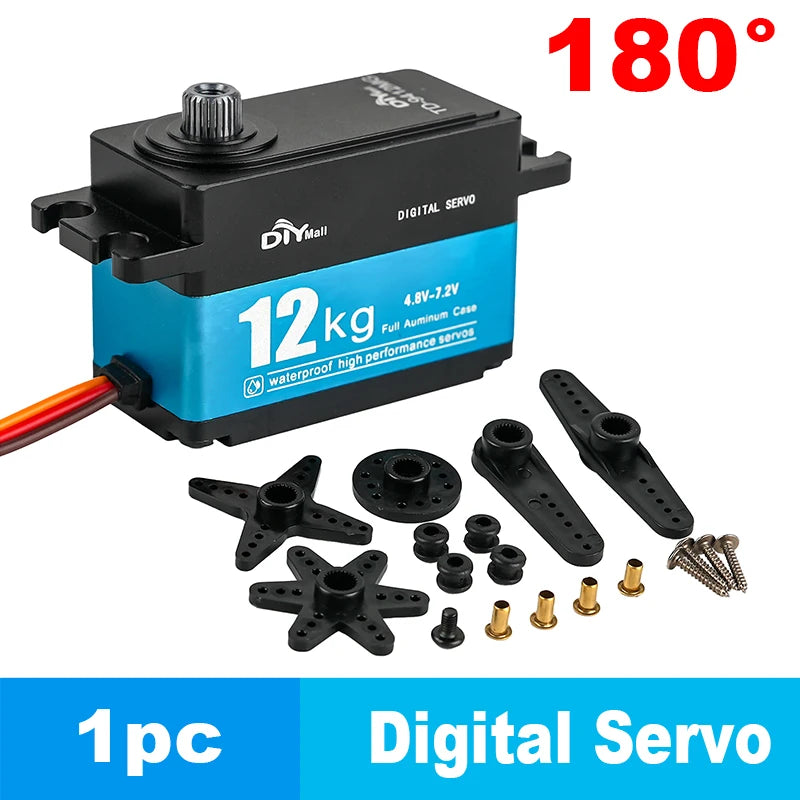

Limit angle: 180°
Bearing: 2BB
Horn gear spline: 25T, Diameter: 5.9mm
Horn type: Plastic, POM
Case: "Aluminum alloy"
Connector wire: 320mm ±5mm

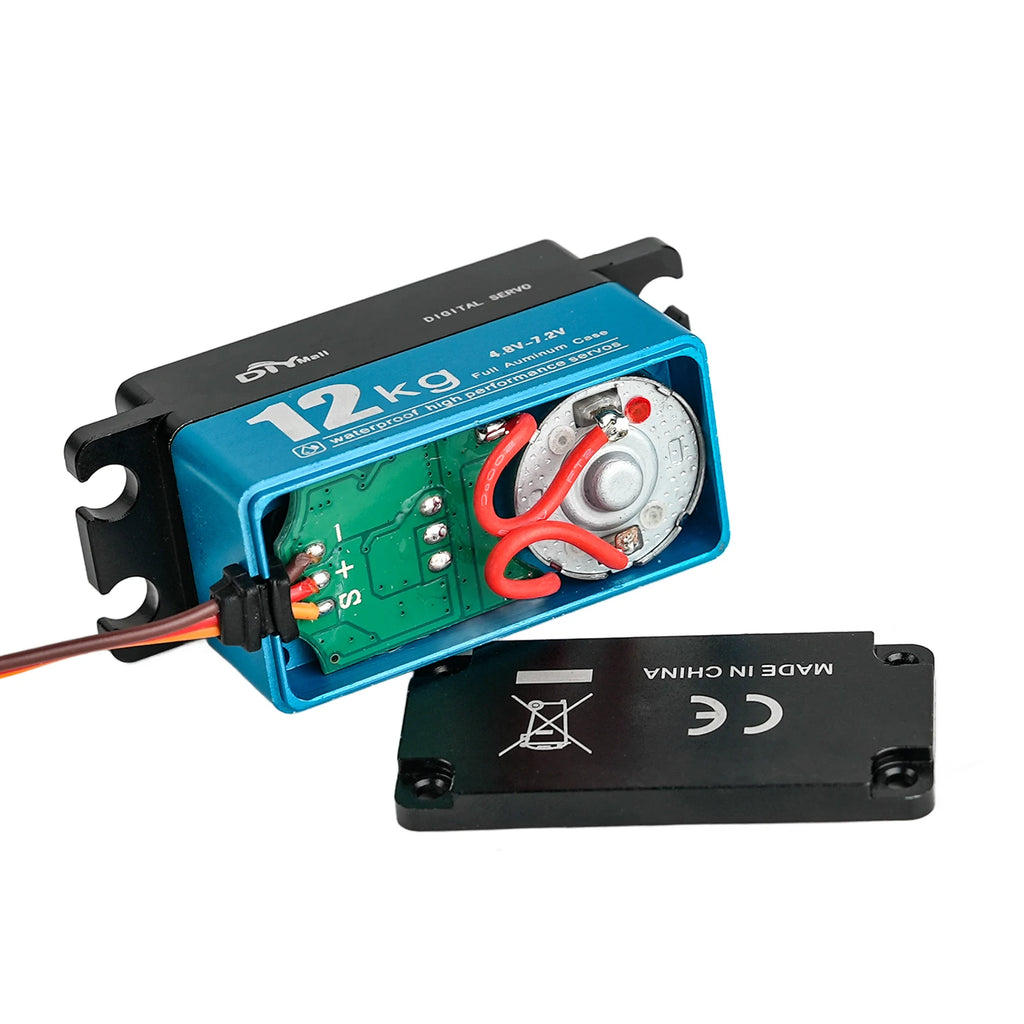

Motor: Carbon brush motor
Splash water resistance: IP65

Electrical Specification
Operat voltage: 4.8V to 7.2V
Idle current: mA
No load speed: 0.12sec/60°, 0.09sec/60°
Runnig current: 210mA, 260mA
Peak stall torque: 11.5kg.cm, 14.5kg.cm
Stall current: 2000mA ±10%, 2700mA ±10%
Working voltage range: 4.8-7.2V

Control Specification
Command signal: Pulse width modification
Amplifier type: Digital controller
Pulse width range: 500～2500usec
Neutral position: 1500usec

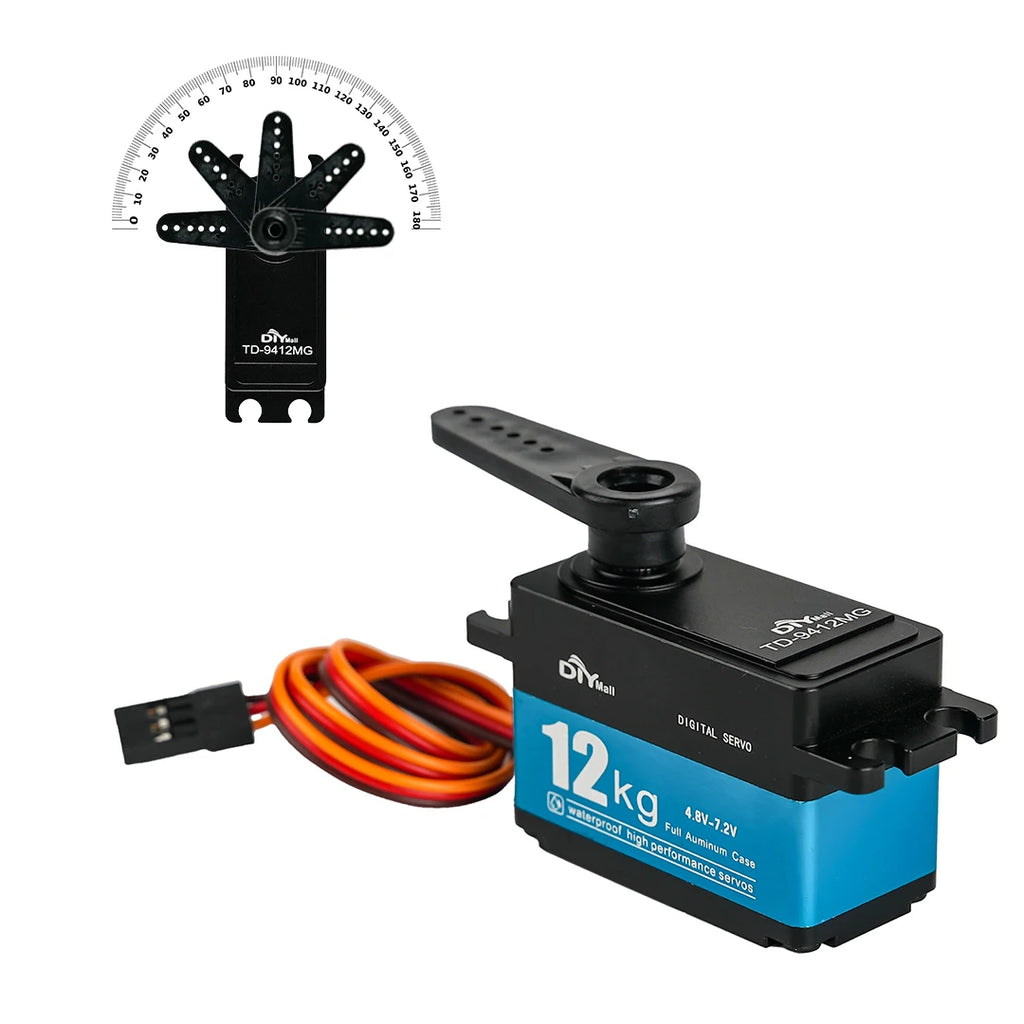

Running degree: 180°±3°(when 500～2500usec)
Dead band width: 5 usec
Rotating direction: Counterclockwise (when 1000～2000usec)

Attention : The logo of DIYmall and TIANKONGRC is send by random
