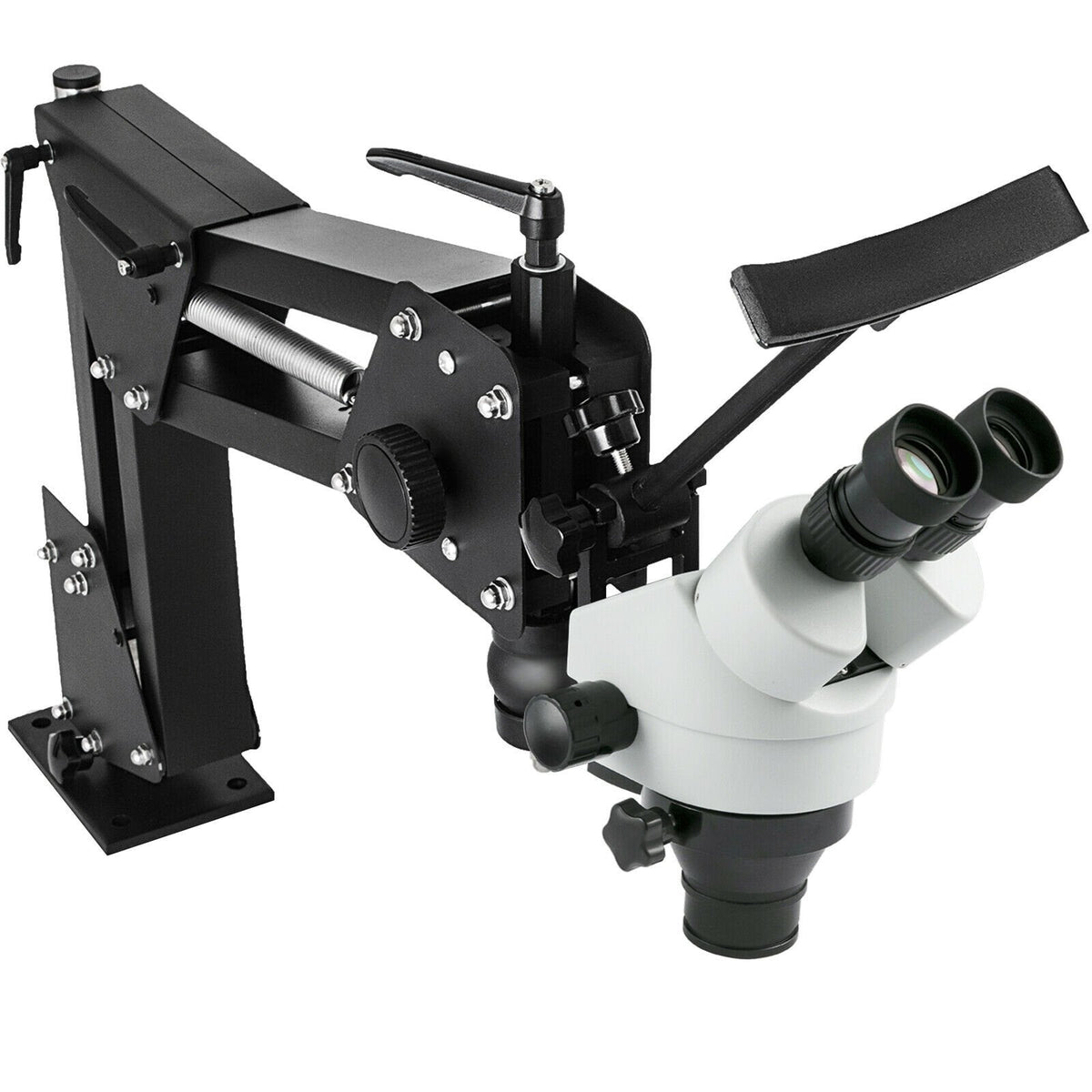

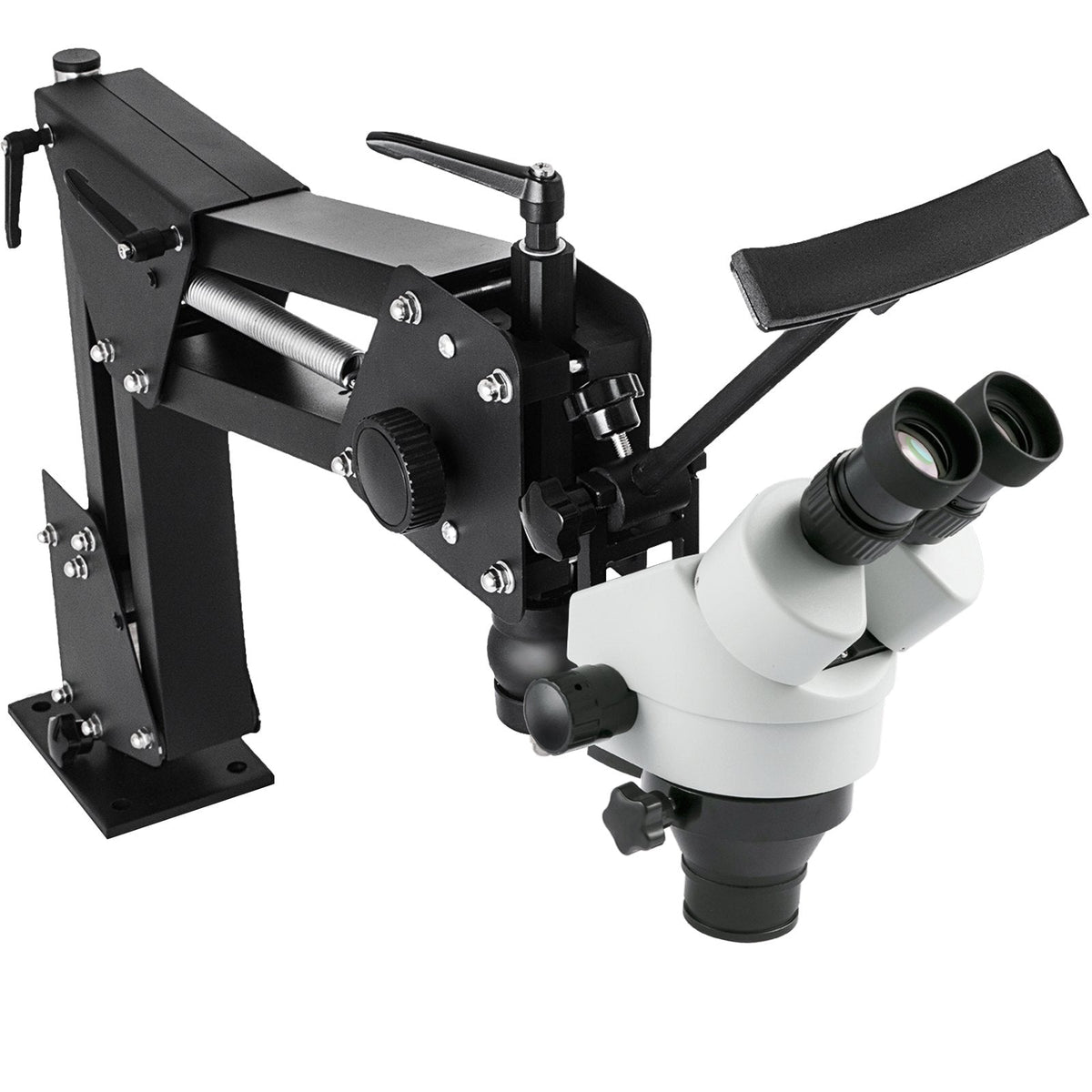

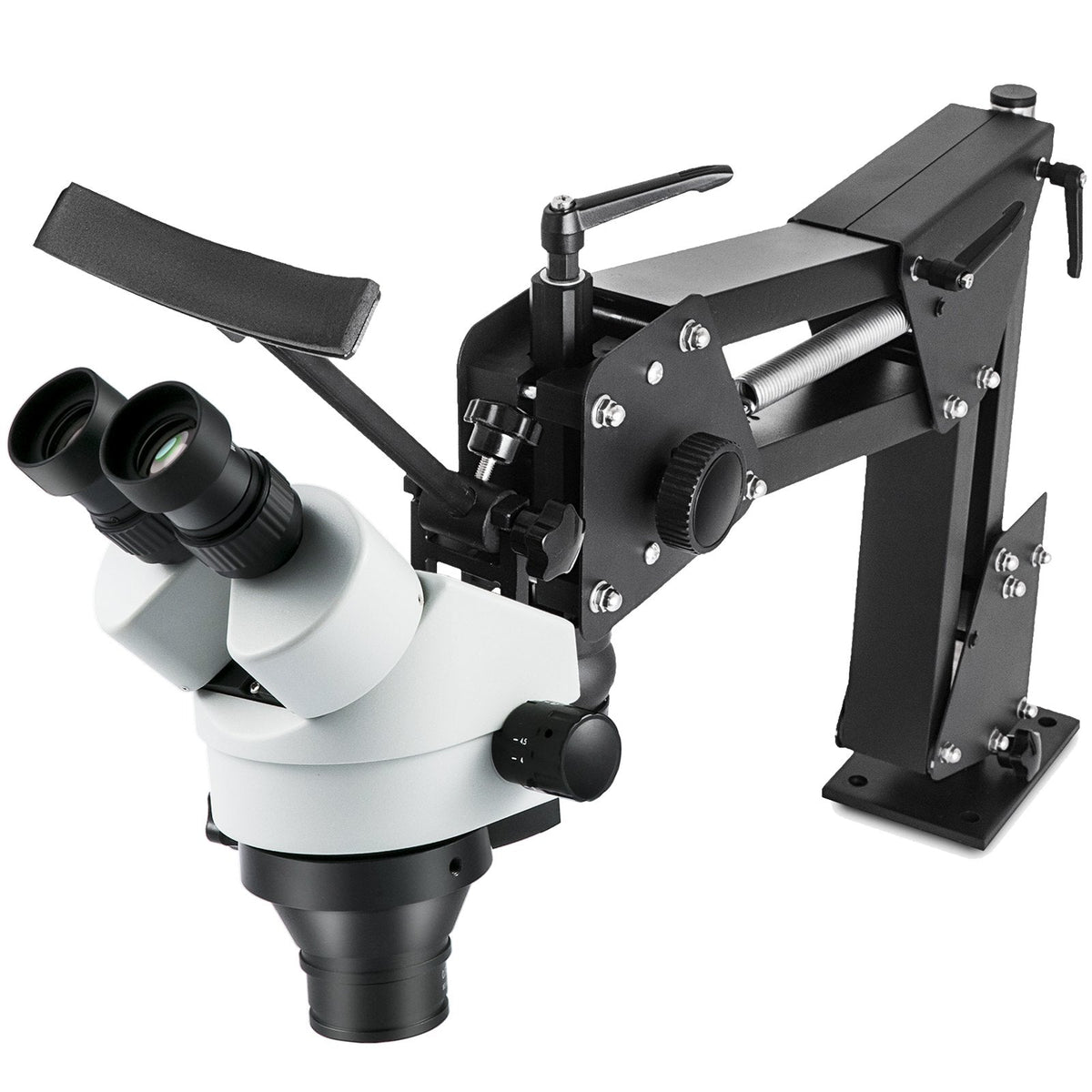

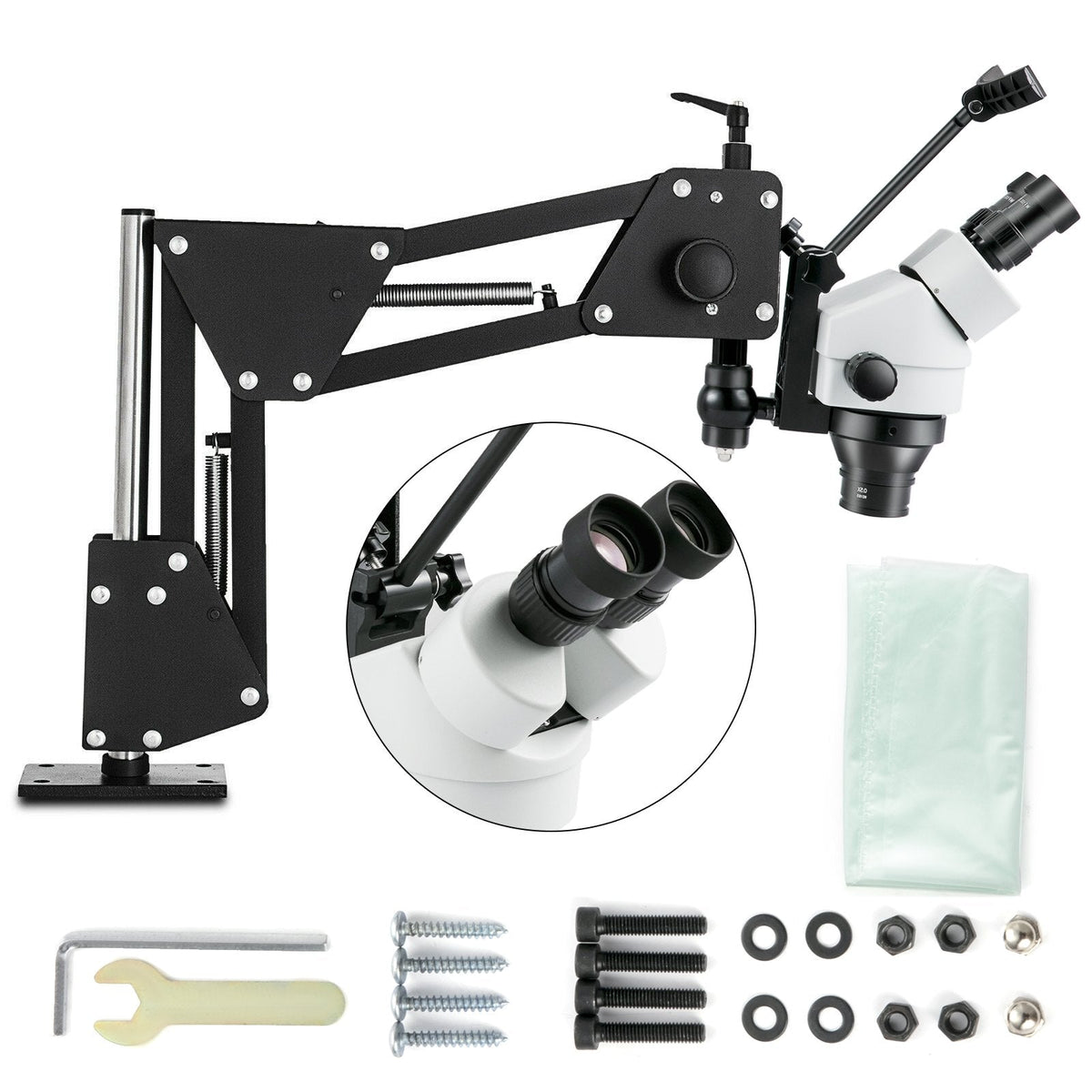

VEVOR Micro Inlaid Mirror Multi-directional Micro-setting Microscope

Features & Details

• 【DETAILED PARAMETERS】- Continuous Zoom: 0.7X-4.5X, Long Working Distance: 95mm-300mm/ 3.7''-11.8”, Model: Jewelry Microscope Stand, Material: Hard Aluminum Alloy, Machine Objective Lens: 0.5X/165Mm, Machine Eyepiece: Wf10X/20Mm, Field Of View: 5.1-33 Mm (0.2-1.3 inch), Spin Angle: Horizontal ±15°, Straight: ±15°, Main Straight: 270°.
• 【CONTINUOUS ZOOM & STEREOSCOPE SENSE】- The continuous zoom microscope lens is characterized by high-definition, large field of view, and strong stereoscopic sense. Wide-angle vision technology brings high resolution and a large field of view with easy operation.
• 【POWERFUL PERFORMANCE】- The jewelry microscope inlaid stand is made of high rigidity aluminum alloy. With compact and stable chassis, it occupies a small space to store easily. A large zoom ratio & a wide field of view make the observation clearer and brighter.

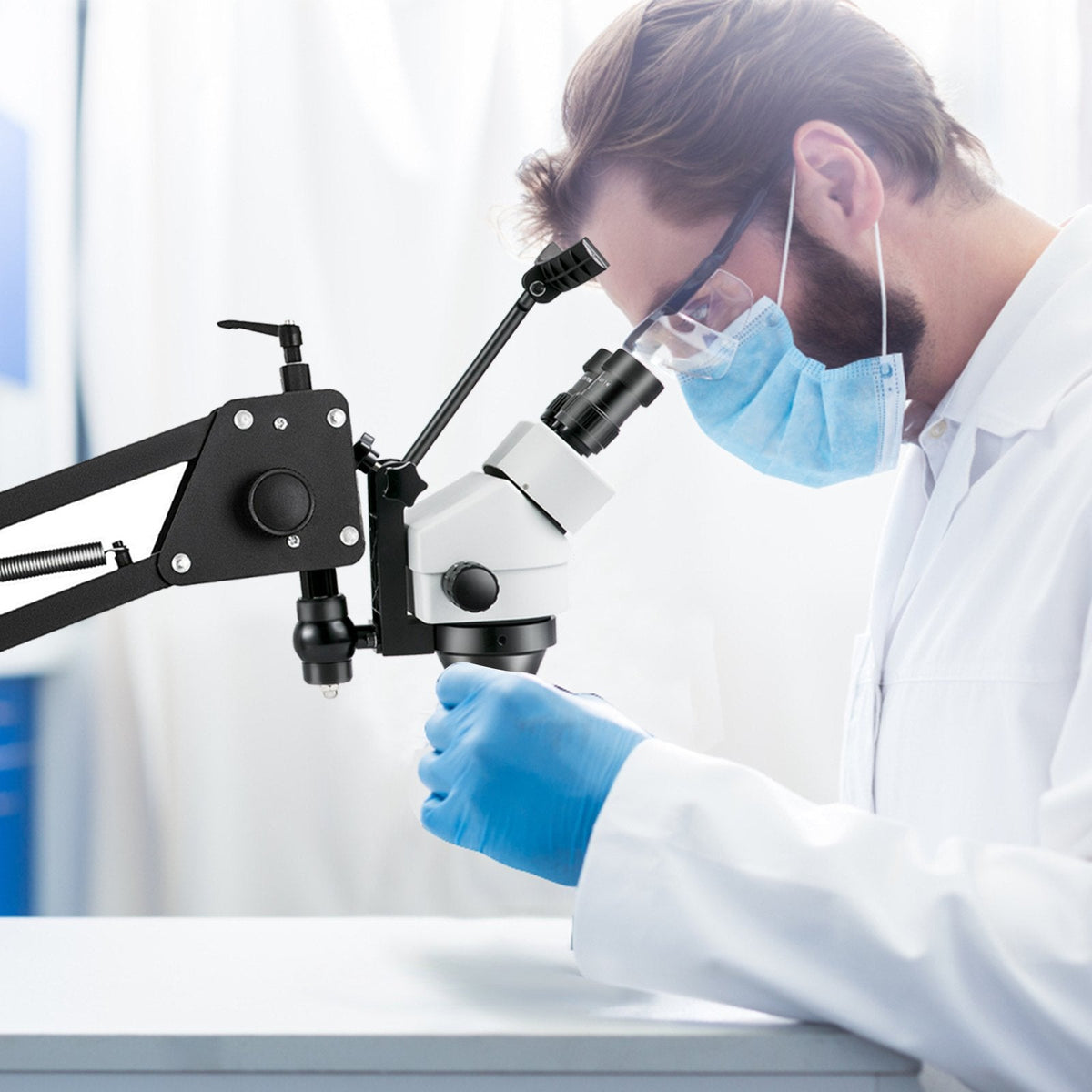

• 【USER-FRIENDLY DESIGN】- The unified headrest rest frame, as a user-friendly operating design, relieves neck fatigue. Aesthetic and practical cross-section universal joints are suitable for various heights & azimuth angles.
• 【VARIOUS APPLICATION】- An essential tool for the micro-inlay jewelry industry, it’s able to meet all needs of operating requirements. Help you zoom in on the details of the jewelry and do better inlay work.

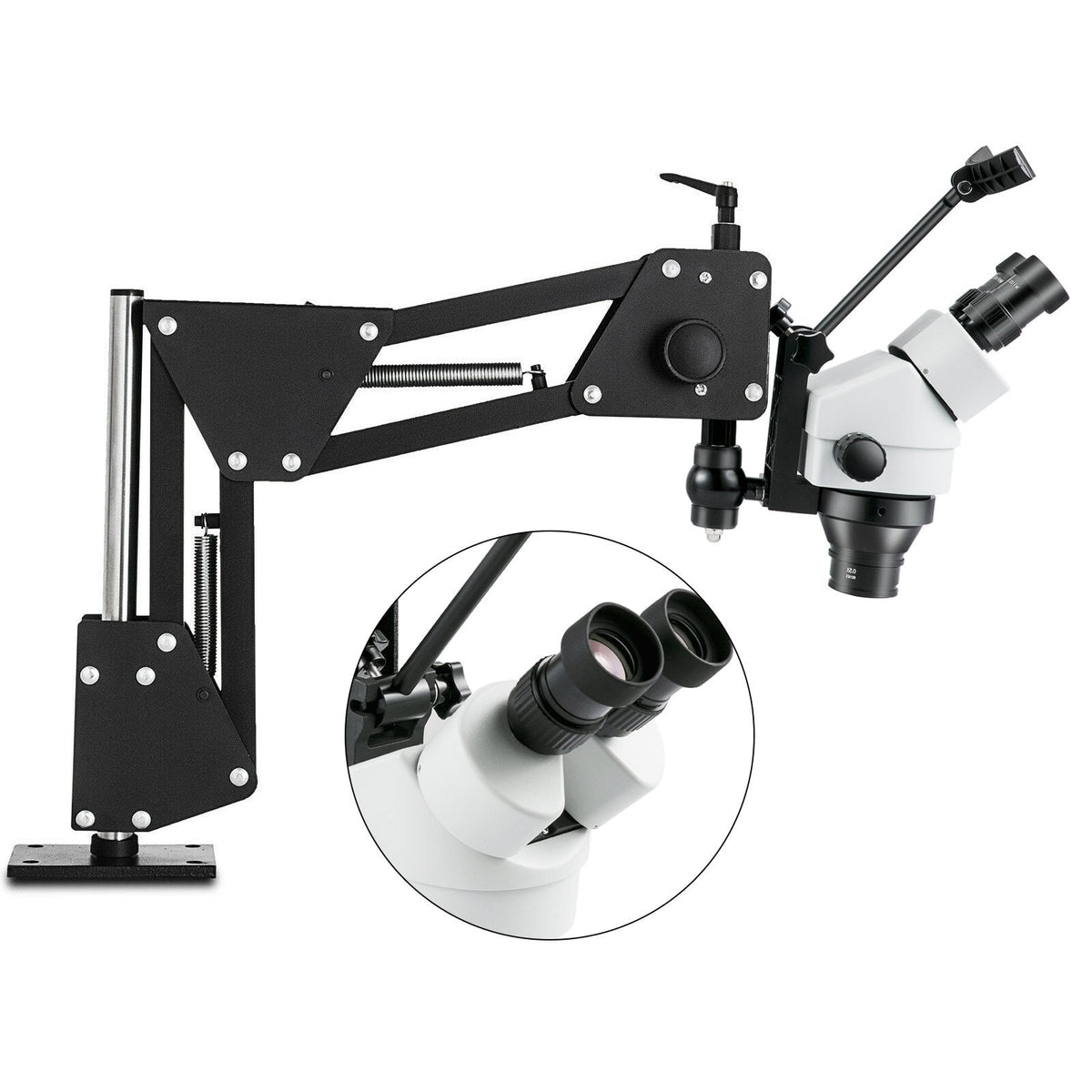

• Micro inlaid mirror multi-directional microscope
• With multi-directional spring bracket
• Long working distance (95-300 mm)
• 7X-4.5X continuous zoom stereo microscope head
• high-resolution with large depth of view field
• User-friendly operating system improves work efficiency

• Name: Micro inlaid mirror
• Feature: With multi-directional spring bracket
• Continuous zoom: 7X-4.5X
• Machine objective lens: 0.5X/165MM
• Machine eyepiece: WF10X/20MM
• Binocular pupil distance: Pupil distance adjustment 54-76 mm (2.13-2.99 inch)
• Working distance: 95-300 mm (3.74-11.81 inch)
• Field of view: 5.1-33 mm (0.2-1.3 inch)
• Stand weight: 6.9kg (15.2lbs)
• Complete weight: 8.4kg (18.52lbs)
• Package size: 50x50x23 cm (19.7x19.7x9 inch)
• Gross weight: 8.46kg (18.65lbs)

Specification

• Continuous Zoom: 0.7X-4.5X
• Long Working Distance: 95mm-300mm / 3.7''-11.8''
• Model: Jewelry Microscope Stand
• Material: Hard Aluminum Alloy
• Bracket Hole: 85mm / 3.35''
• Control High Range: 60mm / 2.36''
• Straight: ±15°
• Main Straight: 270°
• Machine Objective Lens: 0. X/165 mm
• Machine Eyepiece: WF10X/20 mm
• Binocular Pupil Distance: Pupil distance adjustment 54-76 mm (2.13-2.99 inch)
• Field of View: 5.1-33 mm (0.2-1.3 inch)

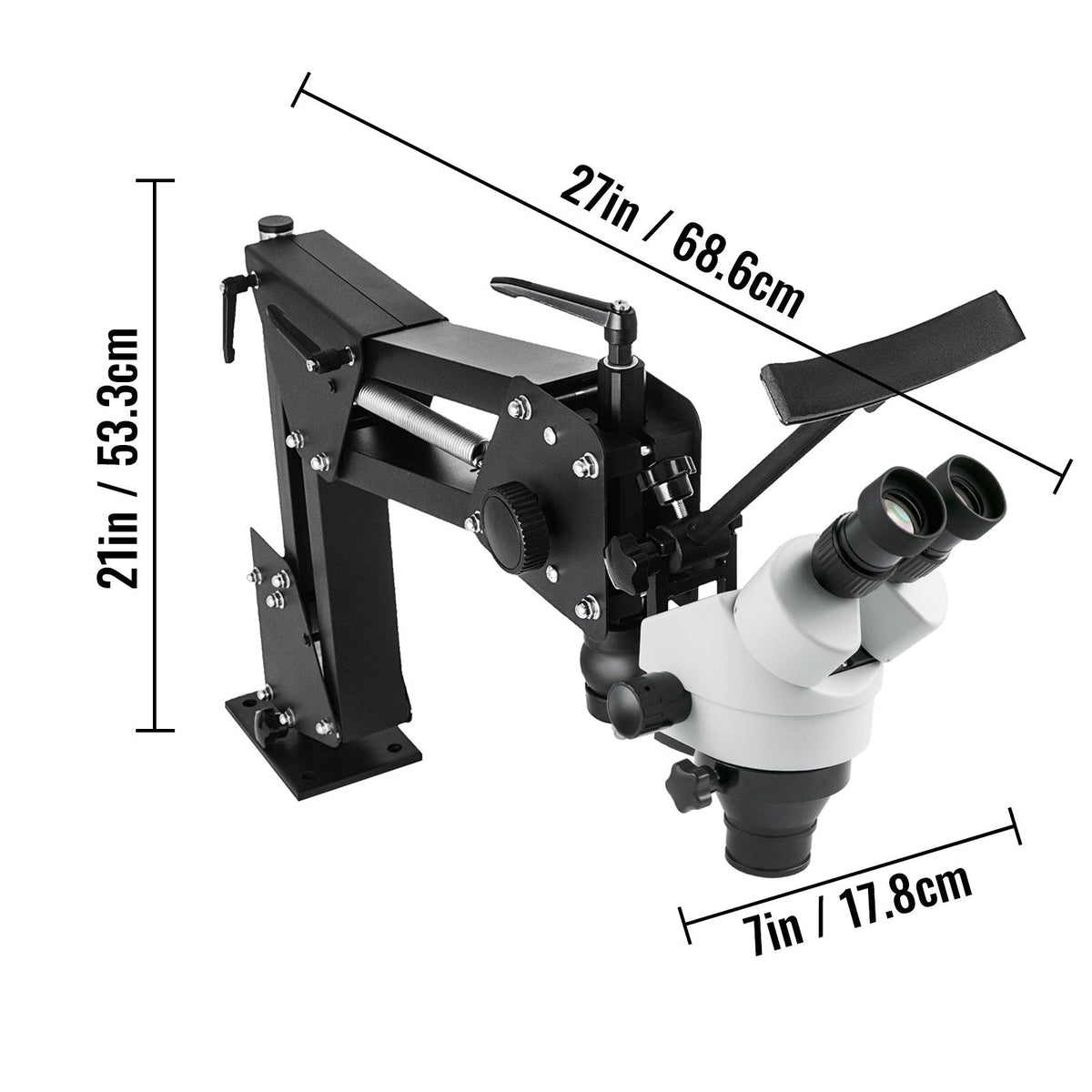

• Product Size: 68.58 cm x 53.34 cm (L x H)/27'' x 21''

Package Content

• 1 x Micro Inlaid Mirror with Spring Bracket
